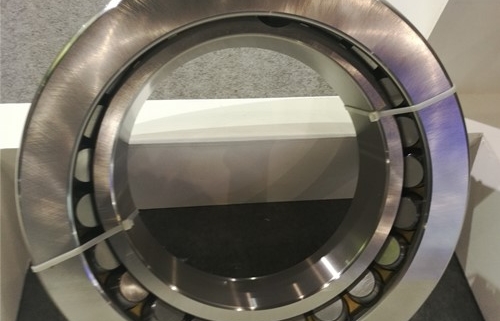

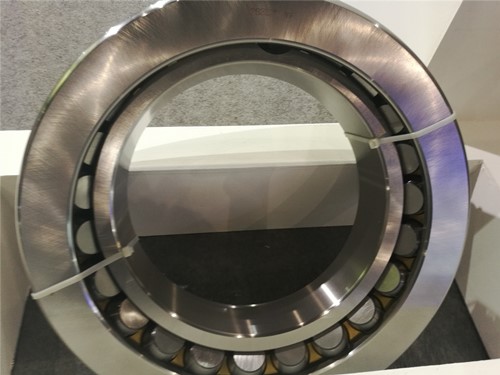

Spherical Roller Thrust Bearings are the same with spherical roller bearing, both of them are all self-aligning design, the raceway surface of the seat is a sphere which centered on a point and be coincident with the center axis of the bearing. and also the rollers of Spherical Roller Thrust Bearings are spherical, Therefore, it has self-aligning function, Less sensitive to concentricity and shaft deflection.

Thrust roller bearings are used to support axial and radial combined loads with axial loads, but radial loads must not exceed 55% of axial loads. Compared with other thrust roller bearings, this type of bearing has lower friction factor, higher speed and has self-aligning performance.

The roller of the 29000 type spherical roller thrust bearing is an asymmetrical spherical roller, which can reduce the relative sliding of the roller and the raceway during operation, and the roller has a long length , a large diameter, a large number of rollers, a high load capacity , and is usually oil lubricated . Individual low speed conditions can be lubricated with grease. When designing and selecting, it should be preferred;

Advantages of Spherical Roller Thrust Bearings

• Higher performance bearingarrangements: more than double the rating life due to basic dynamic load ratings that are up to 30 % higher than before , higher static load safety factor due to basic static load ratings nearly 10 % higher, reduced wear due to improved surface quality and optimum lubricant film formation, higher speed capability due to reduced friction and operating temperature as well as special cage designs.

This is all made possible by longer rolling elements, optimised contact geometry and bearing kinematics, improved surfaces of the rolling contact partners for an optimised lubricant film, cages with better guidance of rollers and lubricant as well as closer dimensional and running tolerances.

Designation	Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings
CoatMaster Bearing				dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
29412 E	60	130	42	390	915	114	2 800	5 000
29413 E	65	140	45	455	1 080	137	2 600	4 800
29414 E	70	150	48	520	1 250	153	2 400	4 300
29415 E	75	160	51	600	1 430	173	2 400	4 000
29416 E	80	170	54	670	1 630	193	2 200	3 800
29317 E	85	150	39	380	1 060	129	2 400	4 000
29417 E	85	180	58	735	1 800	212	2 000	3 600
29318 E	90	155	39	400	1 080	132	2 400	4 000
29418 E	90	190	60	815	2 000	232	1 900	3 400
29320 E	100	170	42	465	1 290	156	2 200	3 600
29420 E	100	210	67	980	2 500	275	1 700	3 000
29322 E	110	190	48	610	1 730	204	1 900	3 200
29422 E	110	230	73	1 180	3 000	325	1 600	2 800
29324 E	120	210	54	765	2 120	245	1 700	2 800
29424 E	120	250	78	1 370	3 450	375	1 500	2 600
29326 E	130	225	58	865	2 500	280	1 600	2 600
29426 E	130	270	85	1 560	4 050	430	1 300	2 400
29328 E	140	240	60	980	2 850	315	1 500	2 600
29428 E	140	280	85	1 630	4 300	455	1 300	2 400
29230 E	150	215	39	408	1 600	180	1 800	2 800
29330 E	150	250	60	1 000	2 850	315	1 500	2 400
29430 E	150	300	90	1 860	5 100	520	1 200	2 200
29332 E	160	270	67	1 180	3 450	375	1 300	2 200
29432 E	160	320	95	2 080	5 600	570	1 100	2 000
29334 E	170	280	67	1 200	3 550	365	1 300	2 200
29434 E	170	340	103	2 360	6 550	640	1 100	1 900
29236 E	180	250	42	495	2 040	212	1 600	2 600
29336 E	180	300	73	1 430	4 300	440	1 200	2 000
29436 E	180	360	109	2 600	7 350	710	1 000	1 800
29338 E	190	320	78	1 630	4 750	490	1 100	1 900
Designation	Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings
CoatMaster Bearing				dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
29438 E	190	380	115	2 850	8 000	765	950	1 700
29240 E	200	280	48	656	2 650	285	1 400	2 200
29340 E	200	340	85	1 860	5 500	550	1 000	1 700
29440 E	200	400	122	3 200	9 000	850	850	1 600
29244 E	220	300	48	690	3 000	310	1 300	2 200
29344 E	220	360	85	2 000	6 300	610	1 000	1 700
29444 E	220	420	122	3 350	9 650	900	850	1 500
29248	240	340	60	799	3 450	335	1 100	1 800
29348 E	240	380	85	2 040	6 550	630	1 000	1 600
29448 E	240	440	122	3 400	10 200	930	850	1 500
29252	260	360	60	817	3 650	345	1 100	1 700
29352 E	260	420	95	2 550	8 300	780	850	1 400
29452 E	260	480	132	4 050	12 900	1 080	750	1 300
29256	280	380	60	863	4 000	375	1 000	1 700
29356 E	280	440	95	2 550	8 650	800	850	1 400
29456 E	280	520	145	4 900	15 300	1 320	670	1 200
29260	300	420	73	1 070	4 800	465	900	1 400
29360 E	300	480	109	3 100	10 600	930	750	1 200
29460 E	300	540	145	5 000	16 600	1 340	670	1 200
29264	320	440	73	1 110	5 100	465	850	1 400
29364 E	320	500	109	3 350	11 200	1 000	750	1 200
29464 E	320	580	155	5 700	19 000	1 530	600	1 100
29268	340	460	73	1 130	5 400	480	850	1 300
29368	340	540	122	2 710	11 000	950	600	1 100
29468 E	340	620	170	6 700	22 400	1 760	560	1 000
29272	360	500	85	1 460	6 800	585	750	1 200
29372	360	560	122	2 760	11 600	980	600	1 100
29472 EM	360	640	170	6 200	21 200	1 630	560	950
29276	380	520	85	1 580	7 650	655	700	1 100
29376	380	600	132	3 340	14 000	1 160	530	1 000
Designation	Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings
CoatMaster Bearing				dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
29476 EM	380	670	175	6 800	24 000	1 860	530	900
29280	400	540	85	1 610	8 000	695	700	1 100
29380	400	620	132	3 450	14 600	1 200	530	950
29480 E	400	710	185	7 650	26 500	1 960	480	850
29480 EM	400	710	185	7 650	26 500	1 960	480	850
29284	420	580	95	1 990	9 800	815	630	1 000
29384	420	650	140	3 740	16 000	1 290	500	900
29484 EM	420	730	185	7 800	27 500	2 080	480	850
29288	440	600	95	2 070	10 400	850	630	1 000
29388 EM	440	680	145	5 200	19 300	1 560	530	850
29488 EM	440	780	206	9 000	32 000	2 320	430	750
29292	460	620	95	2 070	10 600	865	600	950
29392	460	710	150	4 310	19 000	1 500	450	800
29492 EM	460	800	206	9 300	33 500	2 450	430	750
29296	480	650	103	2 350	11 800	950	560	900
29496 EM	480	850	224	9 550	39 000	2 800	340	670
292/500	500	670	103	2 390	12 500	1 000	560	900
293/500	500	750	150	4 490	20 400	1 560	430	800
294/500 EM	500	870	224	9 370	40 000	2 850	340	670
292/530 EM	530	710	109	3 110	15 300	1 220	530	850
293/530 EM	530	800	160	5 870	26 500	2 080	400	750
294/530 EM	530	920	236	10 500	44 000	3 100	320	630
292/560	560	750	115	2 990	16 000	1 220	480	800
294/560 EM	560	980	250	12 000	51 000	3 550	300	560
292/600 EM	600	800	122	3 740	18 600	1 460	450	700
294/600 EM	600	1 030	258	13 100	56 000	4 000	280	530
292/630 EM	630	850	132	4 770	23 600	1 800	400	670
293/630 EM	630	950	190	8 450	38 000	2 900	320	600
294/630 EM	630	1 090	280	14 400	62 000	4 150	260	500
294/670 EM	670	1 150	290	15 400	68 000	4 500	240	450
Designation	Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings
CoatMaster Bearing				dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
293/710 EM	710	1 060	212	9 950	45 500	3 400	280	500
294/710 EF	710	1 220	308	17 600	76 500	5 000	220	430
294/750 EF	750	1 280	315	18 700	85 000	5 500	200	400
292/800 EM	800	1 060	155	6 560	34 500	2 550	320	530
293/800 EM	800	1 180	230	11 300	55 000	3 900	240	450
294/800 EF	800	1 360	335	20 200	93 000	5 850	190	360
294/850 EF	850	1 440	354	23 900	108 000	7 100	170	340
294/900 EF	900	1 520	372	26 700	122 000	7 200	160	300
294/950 EF	950	1 600	390	28 200	132 000	7 800	140	280
294/1000 EF	1 000	1 670	402	31 100	140 000	8 650	130	260
294/1060 EF	1 060	1 770	426	33 400	156 000	8 500	120	240

CoatMaster can produce China Top Quality Spherical Roller Bearings, Brass cage and pressed cage are all available. for small quantity normally delivery date is 3-7days, OEM service is acceptable as Customers’ requested. CoatMaster Adopt the High quality Chrome Steel material and advanced technology standard. Quality Always comes first. and then save the cost of bearings. Choose CoatMaster, then you will find the best soluation for your applications.
