Pillow block bearing manufacturers in china

/0 Comments/in /by

CoatMaster, pillow block bearing manufacturers in china, Pillow block bearing unit is a bearing unit that combines a rolling bearing with a bearing housing. Most pillow block bearings are made of spherical outer diameter and are installed with pillow block which have spherical inner holes. They have various structural forms, good versatility and interchangeability.

Pillow block bearing units have many design,  the housing of the bearing units have cast iron, cast steel, plastic, zinc ,stainless steel materials design, and the insert bearings we have chrome steel, stainless steel, plastic, ceramic such material, but the most used materials of the pillow block bearings are cast iron + chrome steel design, the stainless steel pillow block bearing units demand are also increasing very fast recently years, this design are mainly used in food machinery, chemical industries etc.

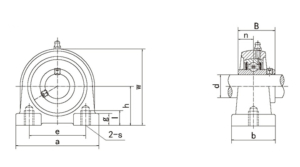

UCP Pillow block bearing unit

Unit No. Shaft Dia Dimensions (mm) Bolt Size
(mm)		 Weight
d H L J A N N1 H1 Ho B S A3 (kg)
(in) (mm)
UCP201   12 30.2 125 95 32 13 18 13 57 27.4 11.5 – M10 0.72
UCP202   15 30.2 125 95 32 13 18 13 57 27.4 11.5 – M10 0.66
UCP203   17 30.2 125 95 32 13 18 13 57 27.4 11.5 – M10 0.66
UCP201   12 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.76
UCP201-8 1/2   30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.76
UCP202   15 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.74
UCP202-9 9/16   30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.74
UCP202-10 5/8   30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.74
UCP203   17 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.72
UCP203-11 11/16   30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.72
UCP204   20 33.3 127 95 38 13 19 14 64 31 12.7 46.4 M10 0.70
UCP204-12 3/4   33.3 127 95 38 13 19 14 64 31 12.7 46.4 M10 0.70
UCP205   25 36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP205-14 7/8   36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP205-15 15/16   36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP205-16 1   36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP206   30 42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-17 1-1/16   42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-18 1-1/8   42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-19 1-3/16   42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-20 1-1/4   42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP207   35 47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-20 1-1/4   47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-21 1-5/16   47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-22 1-3/8   47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-23 1-7/16   47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP208   40 49.2 180 137 52 17 21 18 99 49.2 19 68.2 M14 1.90
UCP208-24 1-1/2   49.2 180 137 52 17 21 18 99 49.2 19 68.2 M14 1.90
UCP208-25 1-9/16   49.2 180 137 52 17 21 18 99 49.2 19 68.2 M14 1.90
UCP209   45 54 190 146 54 17 21 20 106 49.2 19 70 M14 2.20
UCP209-26 1-5/8   54 190 146 54 17 21 20 106 49.2 19 70 M14 2.20
UCP209-27 1-11/16   54 190 146 54 17 21 20 106 49.2 19 70 M14 2.20
UCP209-28 1-3/4   54 190 146 54 17 21 20 106 49.2 19 70 M14 2.20
UCP210   50 57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP210-30 1-7/8   57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP210-31 1-15/16   57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP210-32 2   57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP211   55 63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.30
UCP211-32 2   63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.30
UCP211-34 2-1/8   63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.30
UCP211-35 2-3/16   63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.30
UCP212   60 69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.70
UCP212-36 2-1/4   69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.70
UCP212-38 2-3/8   69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.70
UCP212-39 2-7/16   69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.70
UCP213   65 76.2 262 203 70 25 30 26 149 65.1 25.4 89 M20 5.60
UCP213-40 2-1/2   76.2 262 203 70 25 30 26 149 65.1 25.4 89 M20 5.60
UCP214   70 79.4 266 210 72 25 30 27 155 74.6 30.2 98 M20 6.60
UCP214-44 2-3/4   79.4 266 210 72 25 30 27 155 74.6 30.2 98 M20 6.60
UCP215   75 82.6 274 217 74 25 30 28 162 77.8 33.3 97 M20 7.30
UCP215-47 2-15/16   82.6 274 217 74 25 30 28 162 77.8 33.3 97 M20 7.30
UCP215-48 3   82.6 274 217 74 25 30 28 162 77.8 33.3 97 M20 7.30
UCP216   80 88.9 292 232 78 25 30 30 174 82.6 33.3 110 M20 9.00
UCP217   85 95.2 310 247 83 25 28 32 186 85.7 34.1 114.2 M20 10.80
UCP217-52 3-1/4   95.2 310 247 83 25 28 32 186 85.7 34.1 114.2 M20 10.80
UCP218   90 101.6 326 262 88 27 30 33 198 96 39.7 124 M22 13.00
UCP218-56 3-1/2   101.6 326 262 88 27 30 33 198 96 39.7 124 M22 13.00
UCP220   100 115 380 305 95 30 36 40 225 108 42 – M24 16.00

Notes:1.Bearing housing solid base optional,add suffix SB as designation.

         2.Upon request,pressed steel covers available at both ends.S=Open cap,SM=Close cap. Ordering example:UCP205+SM.

         3.Grease fittings also available at 90° positions.



At the same time, the pillow block bearing with the housing also has a certain degree of self-alignment in design, easy to install, and has a double structure sealing device, which can work in harsh environments. The bearing housing is generally formed by casting. Some special design is cast steel,Ductile iron, stainless steel, plastic housing, Commonly used pillow block are

pillow block bearing unit UCP200,

Pillow block bearing units NAP200,

Pillow block bearing units UEP200,

Pillow block bearing units UKP200,

Pillow block bearing units UCPX,

Pillow block bearing units UCP300,

Pillow block bearing units UCPE2,

Pillow block bearing units UCAK2,

Pillow block bearing units SALP2,

SBLP2,Pillow block bearing units UCSB2



CoatMaster pillow block bearing manufacturers in china can supply Complete series Mounted Ball Bearing Unit as follows:

  1. Pillow block bearing
  2. 4-Bolt Flange unit
  3. 2-Bolt Flange unit
  4. Ajustable 2-Bolt Flange unit
  5. 3-Bolt Flange unit
  6. 4-Bolt Flange Cartridge unit
  7. Take-up units
  8. Section steel frame Take-up units
  9. Channel steel frame take-up units
  10. steel plate frame take-up units
  11. Cartridge units
  12. Hanger Units

China Bearing for agricultural machinery

/100 Comments/in /by

200 Series agricultural bearing

Bearing NO. Type Dimensions(in./mm) Dynamic load ratings(N) Static load ratings(N) Weight

(kg)
d D C B
203 KR2 4 0.625 1.5748 0.472 0.551 12800 6650 0.077
203 KR2 4 15.883 40 12 14 12800 6650 0.077
203 KRR2 1 0.64 1.5748 0.472 0.72 12800 6650 0.085
203 KRR2 1 16.256 40 12 18.288 12800 6650 0.085
203 KRR5 1 0.515 1.5748 0.472 0.72 12800 6650 0.096
203 KRR5 1 13.081 40 12 18.288 12800 6650 0.096
203 KRR6 1 0.64 1.8504 0.472 0.72 12800 6650 0.13
203 KRR6 1 16.256 47 12 18.288 12800 6650 0.13
203 KRR7 1 0.669 1.5748 0.472 0.654 12800 6650 0.079
203 KRR7 1 17 40 12 16.612 12800 6650 0.079
204 KR2 4 0.7505 1.7805 0.61 0.61 12800 6650 0.107
204 KR2 4 19.063 45.225 15.494 15.494 12800 6650 0.107
204 KRR3 1 0.7874 1.8504 0.551 0.699 12800 6650 0.121
204 KRR3 1 20 47 14 17.755 12800 6650 0.121
204 KRD4 2 0.63 1.8504 0.551 0.689 12800 6650 0.135
204 KRD4 2 16 47 14 17.5 12800 6650 0.135
204 KRR14 1 0.63 1.8504 0.591 0.72 12800 6650 0.142
204 KRR14 1 16 47 15 18.288 12800 6650 0.142
205 KR3 5 0.75 2.0472 0.6992 0.6402 14000 7850 0.161
205 KR3 5 19.05 52 17.76 16.26 14000 7850 0.161
Bearing NO. Type Dimensions(in./mm) Dynamic load ratings(N) Static load ratings(N) Weight

(kg)
d D C B
205 KR4 3 1.0005 2.0472 0.591 1 14000 7850 0.148
205 KR4 3 25.413 52 15 25.4 14000 7850 0.148
206 KR7 3 1.181 2.441 0.63 0.945 19450 11250 0.26
206 KR7 3 30 62 16 24 19450 11250 0.26
206 KRR8 1 1.181 2.441 0.63 0.945 19450 11250 0.26
206 KRR8 1 30 62 16 24 19450 11250 0.26
206 KRR18 1 1.2598 2.441 0.63 0.945 19450 11250 0.219
206 KRR18 1 32 62 16 24 19450 11250 0.219
207 KRR 1 1.378 2.8346 0.669 0.984 25700 15200 0.35
207 KRR 1 35 72 17 28 25700 15200 0.35
208 KRR2 1 1.5748 3.1496 0.827 1.063 29500 18100 0.45
208 KRR2 1 40 80 21 27 29500 18100 0.45
210 KRR 1 1.9685 3.5433 0.7874 1.181 35000 23200 0.524
210 KRR 1 50 90 20 30 35000 23200 0.524
214 KRR 1 2.7559 4.9212 1.1024 1.6929 62100 44800 1.546
214 KRR 1 70 125 28 43 62100 44800 1.546



Round Bore Non-Relubricable agricultural bearing

Bearing NO. Type Dimensions(in./mm) Dynamic load ratings(N) Static load ratings(N) Weight

(kg)
d D C B
W208 PPB2 1 1.5005 3.1496 0.709 1.6913 29500 18100 0.598
W208 PPB2 1 38.113 80 18 42.96 29500 18100 0.598
W208 PPB7 1 1.18 3.1496 0.709 1.189 29500 18100 0.558
W208 PPB7 1 30.175 80 18 30.2 29500 18100 0.558
W208 PPB10 3 1.5005 3.1496 0.8268 1.6913 29500 18100 0.817
W208 PPB10 3 38.113 80 21 42.96 29500 18100 0.817
W208 PPB23 1 1.5005 3.1496 1.189 1.6913 29500 18100 0.817
W208 PPB23 1 38.113 80 30.2 42.96 29500 18100 0.817
W209 PPB2 2 1.7717 3.3465 1.189 1.189 32700 20900 0.566
W209 PPB2 2 45 85 30.2 30.2 32700 20900 0.566
W209 PPB4 2 1.535 3.3465 1.189 1.189 32700 23200 0.659
W209 PPB4 2 39 85 30.2 30.2 32700 23200 0.659
W209 PPB11 1 1.7811 3.3465 0.866 1.437 32700 23200 0.573
W209 PPB11 1 45.24 85 22 36.5 32700 23200 0.573
W210 PP2 4 1.938 3.5433 1.189 1.189 35000 23200 0.667
W210 PP2 4 49.225 90 30.2 30.2 35000 23200 0.667
W210 PPB2 2 1.939 3.5433 1.189 1.189 35000 23200 0.708
W210 PPB2 2 49.225 90 30.2 30.2 35000 23200 0.708
W210 PPB5 2 1.785 3.5433 1.189 1.189 35000 23200 0.749
W210 PPB5 2 45.34 90 30.2 30.2 35000 23200 0.749
Bearing NO. Type Dimensions(in./mm) Dynamic load ratings(N) Static load ratings(N) Weight

(kg)
d D C B
W210 PP8 4 1.53 3.5433 1.189 1.189 35000 23200 0.836
W210 PP8 4 38.862 90 30.2 30.2 35000 23200 0.836
W211 PP2 4 2.18 3.937 1.311 1.311 43300 29200 1.01
W211 PP2 4 55.575 100 33.3 33.3 43300 29200 1.01
W211 PPB2 2 2.18 3.937 1.311 1.311 43300 29200 0.81
W211 PPB2 2 55.575 100 33.3 33.3 43300 29200 0.81
W214 PP2 4 2.7559 4.9213 1.563 1.563 62100 44800 1.902
W214 PP2 4 70 125 39.7 39.7 62100 44800 1.902
W214 PPB2 2 2.7559 4.9213 1.563 1.563 62100 44800 1.667
W214 PPB2 2 70 125 39.7 39.7 62100 44800 1.667
W214 PPB9 1 2.7661 4.9213 1.1024 1.75 62100 44800 1.902
W214 PPB9 1 70.26 125 28 44.45 62100 44800 1.902
WIR210-31 5 1.937 2.543 0.787 1.937 35000 23200 0.74
WIR210-31 5 49.2 90 20 49.2 35000 23200 0.74
WIR211-33 5 2.063 3.937 0.827 2.189 43300 29200 1.122
WIR211-33 5 52.388 100 21 56.6 43300 29200 1.122
WIR212-39 5 2.437 4.331 0.866 2.437 47700 32800 1.249
WIR212-39 5 61.912 110 22 61.9 47700 32800 1.249



Agricultural machinery bearings have a number of properties and advantages that can help customers meet or exceed current expectations and prepare for future growth. FQN agricultural machinery series bearings and accessories are designed to meet the demanding application conditions of the region and globally. We offer a complete range of standard and customized bearings and components

Our complete product line includes:

  • 1.Disc harrowFlange
  • 2.Agricultural machinery bearings include round, square, hexagon socket and hexagon socket
  • 3.conveyor bearings

Agricultural machinery bearings are products specifically designed for the harsh environments of farming, sowing or lawn care applications. These bearings include single-lip (F or G), double-lip, or triple-lip seal options that have been joined to thick gauge steel shrouds to provide protection in the most demanding environments.

Application:

  • 1. Agriculture-combine harvesters, tillage equipment, hay balers, lawn mower regulators, cotton pickers, drills, planters / seeders, wheel bearings, disc bearings …
  • 2. Lawn & Garden-Mower wheels and spindle.
  • 3. Conveyor, grain, aggregate



Agricultural machinery series bearings have many properties and advantages that can help customers meet or exceed current expectations and prepare for future growth. FQN agricultural machinery series bearings and accessories are designed to meet the stringent application conditions of the region and the world. We can provide a complete range of standard and customized bearings and components.

Our full product range includes:

  • Disc harrow
  • Flange
  • Agricultural machinery bearings include round, square, hexagon socket and hexagon socket conveyor bearings

Agricultural machinery bearings are specially designed for harsh environments in farming, seeding or lawn care applications. These bearings include single lip (F or G), double lip or triple lip seal options that have been joined to thick gauge steel shrouds to provide protection in the most demanding environments. FQN’s performance and reliability have been verified by rigorous internal and independent laboratory tests.

Application range:

  • Agriculture-combine harvesters, tillage equipment, hay bales, lawn mower regulators, cotton pickers, drilling machines, planters / seeders, wheel bearings, disc bearings …
  • Lawn & Garden-Mower wheels and main shaft.
  • Conveyor-grain, aggregate

The CoatMaster (China Bearing manufacturer) agricultural machinery bearing series offers the industry’s widest range of standard inner diameter sizes and style options. The series includes Conrad bearings for flange installations, disk harrow bearings with round and square holes, hexagon socket bearings, 200 and select 300 series bearings and 4-point contact Gothic arc single and double row Bearings (with heavy-duty contact seals). These bearings are designed for various working conditions from mild to harsh environments.



Features:

Bearing:

o The widest range of industry-standard inner diameter sizes and style options

o Improved raceway geometry improves thrust and bending moment load capacity

o Super-precision raceways and advanced balls are used to improve accuracy and extend service life

  • Assembly:

o Easy assembly / replacement with pre-assembled bearing + housing assembly products

  •  Seals:

o The most extensive design options, suitable for all kinds of working conditions from mild to harsh environments and speeds

o Grinded contact surface extends lip life

o Provide excellent stump retention through knurled tread grooves

  • Lubrication

o Heavy-duty, NLGI # 2 grease containing extreme pressure (EP) additives to provide bearing surface protection

o Lithium synthetic thickener, suitable for high temperature environment, providing long-term working stability

oISO VG 220 synthetic base oil to optimize the lubrication effect under heavy load conditions



Advantage of CoatMaster Agricultural bearing

o Improved raceway geometry

o Super-finished raceways and high-precision balls

o Multiple sealing components

o Single source pre-assembled unit

Benefit

o Extend service life and improve performance

o Bearing and housing components are pre-assembled to reduce production costs

o Can be easily interchanged with many types of products

o Reduce warranty requirements



Agricultural bearings manufacturer from China

/595 Comments/in /by

China Agricultural bearings have a number of properties and advantages that can help customers meet or exceed current expectations and prepare for future growth. China CoatMaster agricultural machinery series bearings and accessories are designed to meet the demanding application conditions of the region and globally. We offer a complete range of standard and customized bearings and components.

Our complete product line includes:

  1. Disc harrow Flange
  2. Agricultural machinery bearings include round, square, hexagon socket and hexagon socket
  3. conveyor bearings

Agricultural machinery bearings are products specifically designed for the harsh environments of farming, sowing or lawn care applications. These bearings include single-lip (F or G), double-lip, or triple-lip seal options that have been joined to thick gauge steel shrouds to provide protection in the most demanding environments.

Application:

  1. Agriculture-combine harvesters, tillage equipment, hay balers, lawn mower regulators, cotton pickers, drills, planters / seeders, wheel bearings, disc bearings …
  2. Lawn & Garden-Mower wheels and spindle.
  3. Conveyor, grain, aggregate

200 Series agricultural bearing

Bearing NO.

 Type Dimensions(in./mm) Dynamic load ratings(N) Static load ratings(N) Weight(kg)
d D C

B
203 KR2 4 0.625 1.5748 0.472 0.551 12800 6650 0.077
203 KR2 4 15.883 40 12 14 12800 6650 0.077
203 KRR2 1 0.64 1.5748 0.472 0.72 12800 6650 0.085
203 KRR2 1 16.256 40 12 18.288 12800 6650 0.085
203 KRR5 1 0.515 1.5748 0.472 0.72 12800 6650 0.096
203 KRR5 1 13.081 40 12 18.288 12800 6650 0.096
203 KRR6 1 0.64 1.8504 0.472 0.72 12800 6650 0.13
203 KRR6 1 16.256 47 12 18.288 12800 6650 0.13
203 KRR7 1 0.669 1.5748 0.472 0.654 12800 6650 0.079
203 KRR7 1 17 40 12 16.612 12800 6650 0.079
204 KR2 4 0.7505 1.7805 0.61 0.61 12800 6650 0.107
204 KR2 4 19.063 45.225 15.494 15.494 12800 6650 0.107
204 KRR3 1 0.7874 1.8504 0.551 0.699 12800 6650 0.121
204 KRR3 1 20 47 14 17.755 12800 6650 0.121
204 KRD4 2 0.63 1.8504 0.551 0.689 12800 6650 0.135
204 KRD4 2 16 47 14 17.5 12800 6650 0.135
204 KRR14 1 0.63 1.8504 0.591 0.72 12800 6650 0.142
204 KRR14 1 16 47 15 18.288 12800 6650 0.142
205 KR3 5 0.75 2.0472 0.6992 0.6402 14000 7850 0.161
205 KR3 5 19.05 52 17.76 16.26 14000 7850 0.161

Bearing NO.

 Type Dimensions(in./mm) Dynamic load ratings(N) Static load ratings(N) Weight(kg)
d D C

B
205 KR4 3 1.0005 2.0472 0.591 1 14000 7850 0.148
205 KR4 3 25.413 52 15 25.4 14000 7850 0.148
206 KR7 3 1.181 2.441 0.63 0.945 19450 11250 0.26
206 KR7 3 30 62 16 24 19450 11250 0.26
206 KRR8 1 1.181 2.441 0.63 0.945 19450 11250 0.26
206 KRR8 1 30 62 16 24 19450 11250 0.26
206 KRR18 1 1.2598 2.441 0.63 0.945 19450 11250 0.219
206 KRR18 1 32 62 16 24 19450 11250 0.219
207 KRR 1 1.378 2.8346 0.669 0.984 25700 15200 0.35
207 KRR 1 35 72 17 28 25700 15200 0.35
208 KRR2 1 1.5748 3.1496 0.827 1.063 29500 18100 0.45
208 KRR2 1 40 80 21 27 29500 18100 0.45
210 KRR 1 1.9685 3.5433 0.7874 1.181 35000 23200 0.524
210 KRR 1 50 90 20 30 35000 23200 0.524
214 KRR 1 2.7559 4.9212 1.1024 1.6929 62100 44800 1.546
214 KRR 1 70 125 28 43 62100 44800 1.546

Round Bore Non-Relubricable agricultural bearing

Bearing NO. Type Dimensions(in./mm) Dynamic load ratings(N) Static load ratings(N) Weight(kg)
d D C B
W208 PPB2 1 1.5005 3.1496 0.709 1.6913 29500 18100 0.598
W208 PPB2 1 38.113 80 18 42.96 29500 18100 0.598
W208 PPB7 1 1.18 3.1496 0.709 1.189 29500 18100 0.558
W208 PPB7 1 30.175 80 18 30.2 29500 18100 0.558
W208 PPB10 3 1.5005 3.1496 0.8268 1.6913 29500 18100 0.817
W208 PPB10 3 38.113 80 21 42.96 29500 18100 0.817
W208 PPB23 1 1.5005 3.1496 1.189 1.6913 29500 18100 0.817
W208 PPB23 1 38.113 80 30.2 42.96 29500 18100 0.817
W209 PPB2 2 1.7717 3.3465 1.189 1.189 32700 20900 0.566
W209 PPB2 2 45 85 30.2 30.2 32700 20900 0.566
W209 PPB4 2 1.535 3.3465 1.189 1.189 32700 23200 0.659
W209 PPB4 2 39 85 30.2 30.2 32700 23200 0.659
W209 PPB11 1 1.7811 3.3465 0.866 1.437 32700 23200 0.573
W209 PPB11 1 45.24 85 22 36.5 32700 23200 0.573
W210 PP2 4 1.938 3.5433 1.189 1.189 35000 23200 0.667
W210 PP2 4 49.225 90 30.2 30.2 35000 23200 0.667
W210 PPB2 2 1.939 3.5433 1.189 1.189 35000 23200 0.708
W210 PPB2 2 49.225 90 30.2 30.2 35000 23200 0.708
W210 PPB5 2 1.785 3.5433 1.189 1.189 35000 23200 0.749
W210 PPB5 2 45.34 90 30.2 30.2 35000 23200 0.749
Bearing NO. Type

Dimensions(in./mm)

 Dynamic load ratings(N) Static load ratings(N) Weight(kg)
d D C

B
W210 PP8 4 1.53 3.5433 1.189 1.189 35000 23200 0.836
W210 PP8 4 38.862 90 30.2 30.2 35000 23200 0.836
W211 PP2 4 2.18 3.937 1.311 1.311 43300 29200 1.01
W211 PP2 4 55.575 100 33.3 33.3 43300 29200 1.01
W211 PPB2 2 2.18 3.937 1.311 1.311 43300 29200 0.81
W211 PPB2 2 55.575 100 33.3 33.3 43300 29200 0.81
W214 PP2 4 2.7559 4.9213 1.563 1.563 62100 44800 1.902
W214 PP2 4 70 125 39.7 39.7 62100 44800 1.902
W214 PPB2 2 2.7559 4.9213 1.563 1.563 62100 44800 1.667
W214 PPB2 2 70 125 39.7 39.7 62100 44800 1.667
W214 PPB9 1 2.7661 4.9213 1.1024 1.75 62100 44800 1.902
W214 PPB9 1 70.26 125 28 44.45 62100 44800 1.902
WIR210-31 5 1.937 2.543 0.787 1.937 35000 23200 0.74
WIR210-31 5 49.2 90 20 49.2 35000 23200 0.74
WIR211-33 5 2.063 3.937 0.827 2.189 43300 29200 1.122
WIR211-33 5 52.388 100 21 56.6 43300 29200 1.122
WIR212-39 5 2.437 4.331 0.866 2.437 47700 32800 1.249
WIR212-39 5 61.912 110 22 61.9 47700 32800 1.249

4-bolt flange bearing units manufacturer from China

/0 Comments/in /by

4-bolt flange bearing units is one kind of mounted ball bearing units, this design have 4 bolt in the housing and its suffix is UCF series, The UCF Ball bearing unit are also the most widely used on the market.

4-bolt flange bearing units feature an internal structure identical to single row deep groove ball bearings and can bear significant radial load, as well as a great deal of axial load in both directions. We called this design is UC pillow block bearing, The hardened steel balls exhibit a high degree of “roundness” and the races are highly polished to accommodate a smooth ride at a wide range of speeds. UC Series bearing are the most used in the mounted ball bearing units.

flange bearing units have the special ability to self-align inside the housing because of the spherical shape of the outer diameter of the bearing insert and the concave shape of the inner diameter of the housing into which it fits.

The housings are made primarily of gray cast iron, and stamped steel. Plastic and cast steel, Gray cast iron is the most popular choice for bearing units because of its optimal characteristics of vibration absorption, high strength, and excellent heat dissipation.

UCF Standard duty, Wider inner ring bearing, Setscrew locking, Cast gray iron housing, pressed steel housing, plastic housing,

Cast DUCTILE iron housing available upon request.

Unit No.

Shaft Dia

Dimensions(mm)

Bolt Size (mm)

Weight (kg)

d

L

J

A2

A1

A

N

B

S

Z

A3

(in)

(mm)

UCF201

12

86

64

15

12

25.5

12

31

12.7

33.3

M10

0.61

UCF201-8

1/2

86

64

15

12

25.5

12

31

12.7

33.3

M10

0.61

UCF202

15

86

64

15

12

25.5

12

31

12.7

33.3

M10

0.61

UCF202-9

9/16

86

64

15

12

25.5

12

31

12.7

33.3

M10

0.61

UCF202-10

5/8

86

64

15

12

25.5

12

31

12.7

33.3

M10

0.61

UCF203

17

86

64

15

12

25.5

12

31

12.7

33.3

M10

0.61

UCF203-11

11/16

86

64

15

12

25.5

12

31

12.7

33.3

M10

0.61

UCF204

20

86

64

15

12

25.5

12

31

12.7

33.3

38.2

M10

0.61

UCF204-12

3/4

86

64

15

12

25.5

12

31

12.7

33.3

38.2

M10

0.61

UCF205

25

95

70

16

14

27

12

34.1

14.3

35.8

40

M10

0.80

UCF205-14

7/8

95

70

16

14

27

12

34.1

14.3

35.8

40

M10

0.80

UCF205-15

15/16

95

70

16

14

27

12

34.1

14.3

35.8

40

M10

0.80

UCF205-16

1

95

70

16

14

27

12

34.1

14.3

35.8

40

M10

0.80

UCF206

30

108

83

18

14

31

12

38.

15.9

40.2

44

M10

1.00

UCF206-17

1-1/16

108

83

18

14

31

12

38.

15.9

40.2

44

M10

1.00

UCF206-18

1-1/8

108

83

18

14

31

12

38.

15.9

40.2

44

M10

1.00

UCF206-19

1-3/16

108

83

18

14

31

12

38.

15.9

40.2

44

M10

1.00

UCF206-20

1-1/4

108

83

18

14

31

12

38.

15.9

40.2

44

M10

1.00

UCF207

35

117

92

19

16

34

14

42.9

17.5

44.4

48.5

M12

1.40

UCF207-20

1-1/4

117

92

19

16

34

14

42.9

17.5

44.4

48.5

M12

1.40

UCF207-21

1-5/16

117

92

19

16

34

14

42.9

17.5

44.4

48.5

M12

1.40

UCF207-22

1-3/8

117

92

19

16

34

14

42.9

17.5

44.4

48.5

M12

1.40

UCF207-23

1-7/16

117

92

19

16

34

14

42.9

17.5

44.4

48.5

M12

1.40

UCF208

40

130

102

21

16

36

16

49.2

19

51.2

55.1

M14

1.80

UCF208-24

1-1/2

130

102

21

16

36

16

49.2

19

51.2

55.1

M14

1.80

UCF208-25

1-9/16

130

102

21

16

36

16

49.2

19

51.2

55.1

M14

1.80

UCF209

45

137

105

22

18

38

16

49.2

19

52.2

57

M14

2.20

UCF209-26

1-5/8

137

105

22

18

38

16

49.2

19

52.2

57

M14

2.20

UCF209-27

1-11/16

137

105

22

18

38

16

49.2

19

52.2

57

M14

2.20

UCF209-28

1-3/4

137

105

22

18

38

16

49.2

19

52.2

57

M14

2.20

UCF210

50

143

111

22

18

40

16

51.6

19

54.6

60

M14

2.40

UCF210-30

1-7/8

143

111

22

18

40

16

51.6

19

54.6

60

M14

2.40

UCF210-31

1-15/16

143

111

22

18

40

16

51.6

19

54.6

60

M14

2.40

UCF210-32

2

143

111

22

18

40

16

51.6

19

54.6

60

M14

2.40

UCF211

55

162

130

25

20

43

19

55.6

22.2

58.4

63

M16

3.50

UCF211-32

2

162

130

25

20

43

19

55.6

22.2

58.4

63

M16

3.50

UCF211-34

2-1/8

162

130

25

20

43

19

55.6

22.2

58.4

63

M16

3.50

UCF211-35

2-3/16

162

130

25

20

43

19

55.6

22.2

58.4

63

M16

3.50

UCF212

60

175

143

29

20

48

19

65.1

25.4

68.7

73.5

M16

4.20

UCF212-36

2-1/4

175

143

29

20

48

19

65.1

25.4

68.7

73.5

M16

4.20

UCF212-38

2-3/8

175

143

29

20

48

19

65.1

25.4

68.7

73.5

M16

4.20

UCF212-39

2-7/16

175

143

29

20

48

19

65.1

25.4

68.7

73.5

M16

4.20

UCF213

65

187

149

30

22

50

19

65.1

25.4

69.7

74.5

M16

5.30

UCF213-40

2-1/2

187

149

30

22

50

19

65.1

25.4

69.7

74.5

M16

5.30

UCF214

70

193

152

31

22

54

19

74.6

30.2

75.4

80

M16

5.90

UCF214-44

2-3/4

193

152

31

22

54

19

74.6

30.2

75.4

80

M16

5.90

UCF215

75

200

159

34

22

56

19

77.8

33.3

78.5

82.5

M16

6.30

UCF215-47

2-15/16

200

159

34

22

56

19

77.8

33.3

78.5

82.5

M16

6.30

UCF215-48

3

200

159

34

22

56

19

77.8

33.3

78.5

82.5

M16

6.30

UCF216

80

208

165

34

22

58

23

82.6

33.3

83.3

89

M20

7.30

UCF217

85

220

175

36

24

63

23

85.7

34.1

87.6

92.1

M20

8.90

UCF217-52

3-1/4

220

175

36

24

63

23

85.7

34.1

87.6

92.1

M20

8.90

UCF218

90

235

187

40

25

68

23

96

39.7

96.3

102

M20

11.60

UCF218-56

3-1/2

235

187

40

25

68

23

96

39.7

96.3

102

M20

11.60

Notes:1. Pressed steel covers available at one end.S=Open cap,SM=Close cap. Ordering example:UCF205+SM.

        2. Bearing housing solid base optional,add suffix SB as designation.



CoatMaster (China bearing  manufacturer & exporter) can manufacture and supply complete mounted bearing unit, UCF Series bearing unit we can supply our own brand for customer who have very high demand about the quality and lead time.

CoatMaster not only produce and supply 4-bolt Ball Bearing Unit, But also the other ball & roller bearing as follows:

1. Deep Groove Ball Bearing
2. Self-aliging Ball Bearing
3. Cylindrical Roller Bearing
4. Spherical Roller Bearing, Sinle row, and sealed spherical roller bearing
5. Needle Roller Bearing
6. Angular contact ball Bearing
7. Tapered roller bearing
8. Thrust Ball Bearing
9. Thurst Roller Bearing
10.Bearing Unit
11.Thin Section Bearing
12.Plummer Block housing
13.Insulated bearing
14.Track Roller Bearing
15.Linear motion bearing
16.Slewing Bearing
17.Spherical Plain Bearing

Pillow block bearing size chart

/0 Comments/in /by

Bearing Units UCP205

Pillow block bearing size chart

Unit No.

 Shaft Dia Dimensions (mm) Bolt Size
(mm)		 Weight

d

H

 L J A N N1 H1 Ho B S

A3

(kg)
(in)

(mm)
UCP201   12 30.2 125 95 32 13 18 13 57 27.4 11.5 – M10 0.72
UCP202   15 30.2 125 95 32 13 18 13 57 27.4 11.5 – M10 0.66
UCP203   17 30.2 125 95 32 13 18 13 57 27.4 11.5 – M10 0.66
UCP201   12 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.76
UCP201-8 1/2   30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.76
UCP202     15 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.74
UCP202-9 9/16   30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.74
UCP202-10 5/8   30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.74
UCP203    17 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.72
UCP203-11 11/16   30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.72
UCP204    20 33.3 127 95 38 13 19 14 64 31 12.7 46.4 M10 0.70
UCP204-12 3/4   33.3 127 95 38 13 19 14 64 31 12.7 46.4 M10 0.70
UCP205     25 36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP205-14  7/8   36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP205-15 15/16   36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP205-16 1   36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP206    30 42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-17  1-1/16   42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-18  1-1/8   42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-19  1-3/16   42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-20 1-1/4   42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP207   35 47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-20  1-1/4   47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-21  1-5/16   47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-22  1-3/8   47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-23 1-7/16   47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP208   40 49.2 180 137 52 17 21 18 99 49.2 19 68.2 M14 1.90
UCP208-24  1-1/2   49.2 180 137 52 17 21 18 99 49.2 19 68.2 M14 1.90
UCP208-25 1-9/16   49.2 180 137 52 17 21 18 99 49.2 19 68.2 M14 1.90
UCP209   45 54 190 146 54 17 21 20 106 49.2 19 70 M14 2.20
UCP209-26  1-5/8   54 190 146 54 17 21 20 106 49.2 19 70 M14 2.20
UCP209-27  1-11/16   54 190 146 54 17 21 20 106 49.2 19 70 M14 2.20
UCP209-28 1-3/4   54 190 146 54 17 21 20 106 49.2 19 70 M14 2.20
UCP210   50 57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP210-30  1-7/8   57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP210-31 1-15/16   57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP210-32 2   57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP211   55 63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.30
UCP211-32   2   63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.30
UCP211-34 2-1/8   63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.30
UCP211-35 2-3/16   63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.30
UCP212   60 69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.70
UCP212-36   2-1/4   69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.70
UCP212-38 2-3/8   69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.70
UCP212-39 2-7/16   69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.70
UCP213   65 76.2 262 203 70 25 30 26 149 65.1 25.4 89 M20 5.60
UCP213-40 2-1/2   76.2 262 203 70 25 30 26 149 65.1 25.4 89 M20 5.60
UCP214   70 79.4 266 210 72 25 30 27 155 74.6 30.2 98 M20 6.60
UCP214-44 2-3/4   79.4 266 210 72 25 30 27 155 74.6 30.2 98 M20 6.60
UCP215   75 82.6 274 217 74 25 30 28 162 77.8 33.3 97 M20 7.30
UCP215-47  2-15/16    82.6 274 217 74 25 30 28 162 77.8 33.3 97 M20 7.30
UCP215-48 3   82.6 274 217 74 25 30 28 162 77.8 33.3 97 M20 7.30
UCP216   80 88.9 292 232 78 25 30 30 174 82.6 33.3 110 M20 9.00
UCP217   85 95.2 310 247 83 25 28 32 186 85.7 34.1 114.2 M20 10.80
UCP217-52 3-1/4   95.2 310 247 83 25 28 32 186 85.7 34.1 114.2 M20 10.80
UCP218   90 101.6 326 262 88 27 30 33 198 96 39.7 124 M22 13.00
UCP218-56 3-1/2   101.6 326 262 88 27 30 33 198 96 39.7 124 M22 13.00
UCP220   100 115 380 305 95 30 36 40 225 108 42 – M24

16.00

Notes:1.Bearing housing solid base optional,add suffix SB as designation.

2.Upon request,pressed steel covers available at both ends.S=Open cap,SM=Close cap. Ordering example:UCP205+SM.

3.Grease fittings also available at 90° positions.

Pillow block bearing unit is a bearing unit that combines a rolling bearing with a bearing housing. Most pillow block bearings are made of spherical outer diameter and are installed with pillow block which have spherical inner holes. They have various structural forms, good versatility and interchangeability.

At the same time, the pillow block bearing with the housing also has a certain degree of self-alignment in design, easy to install, and has a double structure sealing device, which can work in harsh environments. The bearing housing is generally formed by casting. Some special design is cast steel,Ductile iron, stainless steel, plastic housing, Commonly used pillow block are UCP200, NAP200, UEP200, UKP200, UCPX, UCP300, UCPE2, UCAK2, SALP2, UCSB2.

Pillow block ball bearings unit can be divided into three categories according to the way they fit with the shaft:

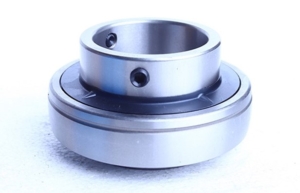

  1. insert bearing with set screw
  2. pillow block bearing with taper bore
  3. Outer spherical ball bearing with eccentric sleeve

China Pillow block bearing unit

/0 Comments/in /by

Bearing Units UCP205

Pillow block bearing unit is a bearing unit that combines a rolling bearing with a bearing housing. Most pillow block bearings are made of spherical outer diameter and are installed with pillow block which have spherical inner holes. They have various structural forms, good versatility and interchangeability.

At the same time, the pillow block bearing with the housing also has a certain degree of self-alignment in design, easy to install, and has a double structure sealing device, which can work in harsh environments. The bearing housing is generally formed by casting. Some special design is cast steel,Ductile iron, stainless steel, plastic housing, Commonly used pillow block bearing are

pillow block bearing unit UCP200,

Pillow block bearing units NAP200,

Pillow block bearing units UEP200,

Pillow block bearing units UKP200,

Pillow block bearing units UCPX,

Pillow block bearing units UCP300,

Pillow block bearing units UCPE200,

Pillow block bearing units UCAK200,

Pillow block bearing units SALP200,SBLP2,

Pillow block bearing units UCSB200

Pillow blocks can refer to a variety of bearing styles such as single row ball bearings, double row ball bearings, spherical roller bearings, taper roller bearings, etc. A unit is typically a reference for a 1-piece housing as opposed to a split housing. For simplicity, this article will focus on single row ball bearing units.

“A basic pillow block bearing unit is typically an insert bearing which is based on a sealed deep groove ball bearing and a one piece housing.” Joshua Goldman, Applications Engineer for SKF USA says. These units consist of:

*an insert bearing which is based on a sealed single row deep groove ball bearing in the 62 series with a spherical (convex) outside diameter surface and an extended inner ring:

*a one-piece housing made of several different material options which include but are not limited to cast iron, cast stainless steel, and composite. The housing has a correspondingly sphered but concave bore.

China pillow block ball bearing ucpa manufacturer

/801 Comments/in /by

UCPA  series ball Bearing unit (pillow block bearing with housing) is a kind of bearing units which combines rolling bearing and bearing housing, Most of the external spherical bearings are made of the outer diameter of the spherical surface, and installed with the pillow block with the spherical inner hole, with various structure forms, good universality and interchangeability between the bearing and housing each other.

At the same time, the design of the UCPA  series ball Bearing unit also has a certain degree of self-aligning, easy to install, with double structure sealing device, which can work in harsh environment. UCPA bearing block is generally cast. Other common types of bearing housing are UCP, UCF, UCFS, UCFC, UCFL, UCT etc.

The shape of UCPA pillow block is close to that of UCP bearing with housing. The two bearing units are installed with the same pillow block bearing. The block of UCPA is shorter than that of UCP, which is mainly used in places with limited installation space.

UCPA bearing pillow block we can provide cast iron material, with bearing steel material pillow block bearing, mainly used for general mechanical equipment, agricultural machinery, etc

It can also produce stainless steel pillow block and plastic bearing block, which are mainly matched with stainless steel outer spherical bearing, with the characteristics of waterproof, antirust and corrosion resistance, mainly used in food processing and chemical equipment, etc.

Unit NO.

Dimensions(mm/in.)

 Bolt mm/in. Bearing  Housing  Weight

(kg)
d h a e b s g l w B

n

UCPA201

12

 30.2 76 52 40 M10 11 15 62 31 12.7 M10 UC201 PA201

0.63

UCPA 201-8

 1/2 1-3/16 3 2-3/64 1-9/16 M10 7/16 19/32 2-7/16 1.2205 0.5 M10 UC201-8 PA201 0.62
UCPA202 15 1-3/16 3 2-3/64 1-9/16 M10 7/16 19/32 2-7/16 1.2205 0.5 M10 UC202 PA202 0.62
UCPA 202-9 9/16 1-3/16 3 2-3/64 1-9/16 M10 7/16 19/32 2-7/16 1.2205 0.5 M10 UC202-9 PA202 0.62
UCPA 202-10 5/8 1-3/16 3 2-3/64 1-9/16 M10 7/16 19/32 2-7/16 1.2205 0.5 M10 UC202-10 PA202 0.62
UCPA203 17 1-3/16 3 2-3/64 1-9/16 M10 7/16 19/32 2-7/16 1.2205 0.5 M10 UC203 PA203 0.61
UCPA 203-11 11/16 1-3/16 3 2-3/64 1-9/16 M10 7/16 19/32 2-7/16 1.2205 0.5 M10 UC203-11 PA203 0.6
UCPA204 20 1-3/16 3 2-3/64 1-9/16 M10 7/16 19/32 2-7/16 1.2205 0.5 M10 UC204 PA204 0.589
UCPA 204-12 3/4 1-3/16 3 2-3/64 1-9/16 M10 7/16 19/32 2-7/16 1.2205 0.5 M10 UC204-12 PA204 0.589
UCPA205 25 36.5 84 56 38 M10 12 15 72 34.1 14.3 M10 UC205 PA205 0.756
UCPA 205-13 13/16 1-7/16 3-5/16 2-13/64 1-1/2 M10 15/32 19/32 2-53/64 1.3425 0.563 M10 UC205-13 PA205 0.793
UCPA 205-14 7/8 1-7/16 3-5/16 2-13/64 1-1/2 M10 15/32 19/32 2-53/64 1.3425 0.563 M10 UC205-14 PA205 0.783
UCPA 205-15 15/16 1-7/16 3-5/16 2-13/64 1-1/2 M10 15/32 19/32 2-53/64 1.3425 0.563 M10 UC205-15 PA205 0.763
UCPA 205-16 1 1-7/16 3-5/16 2-13/64 1-1/2 M10 15/32 19/32 2-53/64 1.3425 0.563 M10 UC205-16 PA205 0.753
UCPA206 30 42.9 94 66 50 M14 12 18 84 38.1 15.9 M14 UC206 PA206 1.116
UCPA 206-17 1-1/16 1-11/16 3-45/64 2-19/32 1-31/32 M14 15/32 45/64 3-5/16 1.5 0.626 M14 UC206-17 PA206 1.126
UCPA 206-18 1-1/8 1-11/16 3-45/64 2-19/32 1-31/32 M14 15/32 45/64 3-5/16 1.5 0.626 M14 UC206-18 PA206 1.136
UCPA 206-19 1-3/16 1-11/16 3-45/64 2-19/32 1-31/32 M14 15/32 45/64 3-5/16 1.5 0.626 M14 UC206-19 PA206 1.116
UCPA 206-20 1-1/4 1-11/16 3-45/64 2-19/32 1-31/32 M14 15/32 45/64 3-5/16 1.5 0.626 M14 UC206-20 PA206 1.106
UCPA207 35 47.6 110 80 55 M14 13 20 95 42.9 17.5 M14 UC207 PA207

1.546

Unit NO.

Dimensions(mm/in.)

 Bolt mm/in. Bearing NO. Housing NO.

Weight

(kg)
d h a e b s g l w B n
UCPA 207-20 1-1/4 1-7/8 4-21/64 3-5/32 2-11/64 M14 33/64 25/32 3-47/64 1.689 0.689 M14 UC207-20 PA207 1.611
UCPA 207-21 1-5/16 1-7/8 4-21/64 3-5/32 2-11/64 M14 33/64 25/32 3-47/64 1.689 0.689 M14 UC207-21 PA207 1.581
UCPA 207-22 1-3/8 1-7/8 4-21/64 3-5/32 2-11/64 M14 33/64 25/32 3-47/64 1.689 0.689 M14 UC207-22 PA207 1.551
UCPA 207-23 1-7/16 1-7/8 4-21/64 3-5/32 2-11/64 M14 33/64 25/32 3-47/64 1.689 0.689 M14 UC207-23 PA207 1.521
UCPA208 40 49.2 116 84 58 M14 13 20 100 49.2 19 M14 UC208 PA208 1.798
UCPA 208-24 1-1/2 1-15/16 4-9/16 3-5/16 2-9/32 M14 33/64 25/32 3-15/16 1.937 0.748 M14 UC208-24 PA208 1.838
UCPA 208-25 1-9/16 1-15/16 4-9/16 3-5/16 2-9/32 M14 33/64 25/32 3-15/16 1.937 0.748 M14 UC208-25 PA208 1.808
UCPA209 45 54.2 120 90 60 M14 13 25 108 49.2 19 M14 UC209 PA209 2.053
UCPA 209-26 1-5/8 2-9/64 4-23/32 3-35/64 2-23/64 M14 33/64 63/64 4-1/4 1.937 0.748 M14 UC209-26 PA209 2.153
UCPA 209-27 1-11/16 2-9/64 4-23/32 3-35/64 2-23/64 M14 33/64 63/64 4-1/4 1.937 0.748 M14 UC209-27 PA209 2.113
UCPA 209-28 1-3/4 2-9/64 4-23/32 3-35/64 2-23/64 M14 33/64 63/64 4-1/4 1.937 0.748 M14 UC209-28 PA209 2.073
UCPA210 50 57.2 130 94 64 M16 14 25 116 51.6 19 M16 UC210 PA210 2.556
UCPA 210-29 1-13/16 2-1/4 5-1/8 3-45/64 2-33/64 M16 35/64 63/64 4-9/16 2.0315 0.748 M16 UC210-29 PA210 2.676
UCPA 210-30 1-7/8 2-1/4 5-1/8 3-45/64 2-33/64 M16 35/64 63/64 4-9/16 2.0315 0.748 M16 UC210-30 PA210 2.626
UCPA 210-31 1-15/16 2-1/4 5-1/8 3-45/64 2-33/64 M16 35/64 63/64 4-9/16 2.0315 0.748 M16 UC210-31 PA210 2.576
UCPA 210-32 2 2-1/4 5-1/8 3-45/64 2-33/64 M16 35/64 63/64 4-9/16 2.0315 0.748 M16 UC210-32 PA210 2.536
UCPA211 55 63.5 140 104 66 M16 14 25 125 55.6 22.2 M16 UC211 PA211 3.138
UCPA 211-32 2 2-1/2 5-33/64 4-3/32 2-19/32 M16 35/64 63/64 4-59/64 2.189 0.874 M16 UC211-32 PA211 3.288
UCPA 211-33 2-1/16 2-1/2 5-33/64 4-3/32 2-19/32 M16 35/64 63/64 4-59/64 2.189 0.874 M16 UC211-33 PA211 3.228
UCPA 211-34 2-1/8 2-1/2 5-33/64 4-3/32 2-19/32 M16 35/64 63/64 4-59/64 2.189 0.874 M16 UC211-34 PA211 3.188

Unit NO.

Dimensions(mm/in.)

 Bolt mm/in. Bearing NO. Housing NO.

Weight(kg)
d h a e b s g l w B n
UCPA 211-35 2-3/16 2-1/2 5-33/64 4-3/32 2-19/32 M16 35/64 63/64 4-59/64 2.189 0.874 M16 UC211-35 PA211 3.118
UCPA212 60 69.9 150 114 68 M16 15 25 138 65.1 25.4 M16 UC212 PA212 4.12
UCPA 212-36 2-1/4 2-3/4 5-29/32 4-31/64 2-43/64 M16 19/32 63/64 5-7/16 2.563 1 M16 UC212-36 PA212 4.25
UCPA 212-37 2-5/16 2-3/4 5-29/32 4-31/64 2-43/64 M16 19/32 63/64 5-7/16 2.563 1 M16 UC212-37 PA212 4.17
UCPA 212-38 2-3/8 2-3/4 5-29/32 4-31/64 2-43/64 M16 19/32 63/64 5-7/16 2.563 1 M16 UC212-38 PA212 4.1
UCPA 212-39 2-7/16 2-3/4 5-29/32 4-31/64 2-43/64 M16 19/32 63/64 5-7/16 2.563 1 M16 UC212-39 PA212 4.03
UCPA213 65 76.2 160 124 70 M16 15 25 150 65.1 25.4 M16 UC213 PA213 4.915
UCPA 213-40 2-1/2 3 6-19/64 4-7/8 2-3/4 M16 19/32 63/64 5-29/32 2.563 1 M16 UC213-40 PA213 5.005
UCPA 213-41 2-9/16 3 6-19/64 4-7/8 2-3/4 M16 19/32 63/64 5-29/32 2.563 1 M16 UC213-41 PA213 4.915



Pillow Block Bearing Unit are comprised of inner and outer rings, balls, and steel ball cages all of which are made from the highest quality of bearing steel.

These bearings possess the following features.
(1) High elastic limit to resist strong opposing force
(2) High rolling fatigue strength to allow for heavy loads
(3) Superior hardness
(4) Superior wear resistance
(5) Superior toughness against impact and shock loads
(6) Superior precision of dimensional tolerances

CoatMaster ( China Bearing  manufacturer) have more than 12 year bearing production and export experience. it can produce and supply complete series mounted ball bearing units,its production capacity and large storehouse can sure that our quality bearing can deliver to our customers within shortest time, we have large stocks for our own bearings, the usually bearings we can finish within 3days,and the large quantity and more different size our usual delivery date will be within 7-25 days upon specific situation.

CoatMaster perfect service can earn customers’ trust and make sure the customers have no risk to do business with us. Before place an order, we make sure the customer know the details about the quality, the price, the delivery, and also we will be work strictly according to our agreement, after the customers received our quality bearings, we accepted return back the bearing goods if the customers was not pleased the bearing quality.

So try to contact with us if you have demand about bearings. And Start our first step to know each other.

China Mounted Ball Bearing unit manufacturer

/0 Comments/in /by

Mounted Ball Bearing Unit have many features and are available in various models. A wide selection of mounted units is offered to fit virtually any application. Mounted Ball Bearing Unit consist of Insert ball bearing and High Quanlity Solid Cast Iron pillow block.

Mounted Ball Bearing Units feature an internal structure identical to single row deep groove ball bearings and can bear significant radial load, as well as a great deal of axial load in both directions. The hardened steel balls exhibit a high degree of “roundness” and the races are highly polished to accommodate a smooth ride at a wide range of speeds.

Mounted Ball Bearing Units have the special ability to self-align inside the housing because of the spherical shape of the outer diameter of the bearing insert and the concave shape of the inner diameter of the housing into which it fits.

The housings are made primarily of gray cast iron, and stamped steel. Gray cast iron is the most popular choice for mounted units because of its optimal characteristics of vibration absorption, high strength, and excellent heat dissipation.

CoatMaster as the China Bearing manufacturer, it can supply Complete series Mounted Ball Bearing Unit as follows:

  1. Pillow block bearing
  2. 4-Bolt Flange unit
  3. 2-Bolt Flange unit
  4. Ajustable 2-Bolt Flange unit
  5. 3-Bolt Flange unit
  6. 4-Bolt Flange Cartridge unit
  7. Take-up units
  8. Section steel frame Take-up units
  9. Channel steel frame take-up units
  10. steel plate frame take-up units
  11. Cartridge units
  12. Hanger Units

China Insert ball bearing manufacturer

/676 Comments/in /by

China Insert ball bearing usually called pillow block bearing or outer spherical ball bearing, it is actually a variant of the deep groove ball bearing, which is characterized in that the outer diameter surface of its outer ring is spherical and can be fitted into the corresponding concave spherical surface of the bearing seat to play a self-aligning role. Insert ball bearings are mainly used to withstand radial and axial combined loads, which are mainly radial loads. Generally, it is not suitable to bear axial loads alone.

Although its basic performance should be similar to that of deep groove ball bearings, but because these bearings are mostly used in relatively rough machinery, the installation and positioning are not accurate enough, the axis of the shaft and the seat hole is poorly aligned, or the shaft is long and deflected In the case of large grades, and the accuracy of the bearing itself is not high enough, and some structures are relatively rough, the actual performance of the performance is relatively discounted for deep groove ball bearings of the same specifications. For example: Insert ball bearing with top wires are used for through-shafts with poor rigidity and large deflections. These bearings have sealing rings on both sides to prevent the invasion of dirt tightly.

Appropriate amount of lubricant. No cleaning or relubrication is required before installation. When the top screw on the protruding end of the bearing inner ring is tightened on the shaft. The allowable axial load must not exceed 20% of the rated dynamic load.

The performance of the insert ball bearing with eccentric sleeve is basically the same as that of the insert ball bearing with top wire, except that the top wire is not on the inner ring, but on the eccentric sleeve. The inner hole of the  insert ball bearing with a tapered hole is a tapered hole with a 1:12 taper, which can be directly mounted on a tapered shaft, or mounted on an optical shaft without a shoulder by means of a fixed bush, and the bearing clearance can be fine-tuned.

Insert Ball Bearing with chrome steel material is the most used on the market, we can also supply the Stainless steel insert ball bearings, ceramic insert ball bearing, plastic insert ball bearing, the insert ball bearing usually working with any other kinds of pillow block,

Insert ball bearing are preferably used in applications that require simple equipment and parts, such as agricultural machinery, transportation systems, or construction machinery. Food machinery, Chemical industry.

Bearing NO.

 Dimensions(mm/in.) Dynamic load ratings(N) Static load ratings(N) Weight

(kg)
d D B C S S1 G Ds

F
UCS201 12 40 27.4 14 11.5 15.9 4 M5x0.8 3.7 9600 4600 0.12
UC 201-8 1/2 1.5748 1.0787 0.5512 0.4528 0.626 0.157 10-32UNF 0.146 9600 4600 0.12
UCS202 15 1.5748 1.0787 0.5512 0.4528 0.626 0.157 10-32UNF 0.146 9600 4600 0.11
UC 202-9 9/16 1.5748 1.0787 0.5512 0.4528 0.626 0.157 10-32UNF 0.146 9600 4600 0.11
UC 202-10 5/8 1.5748 1.0787 0.5512 0.4528 0.626 0.157 10-32UNF 0.146 9600 4600 0.11
UCS203 17 1.5748 1.0787 0.5512 0.4528 0.626 0.157 10-32UNF 0.146 9600 4600 0.1
UC 203-11 11/16 1.5748 1.0787 0.5512 0.4528 0.626 0.157 10-32UNF 0.146 9600 4600 0.1
UC201 12 47 31 17 12.7 18.3 4.8 M6x1 3.7 12800 6600 0.2
UC 201-8 1/2 1.8504 1.2205 0.6693 0.5 0.72 0.189 1/4-28UNF 0.146 12800 6600 0.19
UC202 15 1.8504 1.2205 0.6693 0.5 0.72 0.189 1/4-28UNF 0.146 12800 6600 0.19
UC 202-9 9/16 1.8504 1.2205 0.6693 0.5 0.72 0.189 1/4-28UNF 0.146 12800 6600 0.19
UC 202-10 5/8 1.8504 1.2205 0.6693 0.5 0.72 0.189 1/4-28UNF 0.146 12800 6600 0.19
UC203 17 1.8504 1.2205 0.6693 0.5 0.72 0.189 1/4-28UNF 0.146 12800 6600 0.18
UC 203-11 11/16 1.8504 1.2205 0.6693 0.5 0.72 0.189 1/4-28UNF 0.146 12800 6600 0.17
UC204 20 47 31 17 12.7 18.3 4.8 M6x1 3.7 12800 6600 0.16
UC 204-12 3/4 1.8504 1.2205 0.6693 0.5 0.72 0.189 1/4-28UNF 0.146 12800 6600 0.16
UC205 25 52 34.1 17 14.3 19.8 5 M6x1 3.9 14000 7850 0.19
UC 205-13 13/16 2.0472 1.3425 0.6693 0.563 0.78 0.197 1/4-28UNF 0.154 14000 7850 0.23
UC 205-14 7/8 2.0472 1.3425 0.6693 0.563 0.78 0.197 1/4-28UNF 0.154 14000 7850 0.22
UC 205-15 15/16 2.0472 1.3425 0.6693 0.563 0.78 0.197 1/4-28UNF 0.154 14000 7850 0.2



Bearing NO.

 Dimensions(mm/in.) Dynamic load ratings(N) Static load ratings(N) Weight

(kg)
d D B C S S1 G Ds

F
UC 205-16 1 2.0472 1.3425 0.6693 0.563 0.78 0.197 1/4-28UNF 0.154 14000 7850 0.19
UC206 30 62 38.1 19 15.9 22.2 5 M6x1 5 19450 11250 0.3
UC 206-17 1-1/16 2.4409 1.5 0.748 0.626 0.874 0.197 1/4-28UNF 0.197 19450 11250 0.31
UC 206-18 1-1/8 2.4409 1.5 0.748 0.626 0.874 0.197 1/4-28UNF 0.197 19450 11250 0.32
UC 206-19 1-3/16 2.4409 1.5 0.748 0.626 0.874 0.197 1/4-28UNF 0.197 19450 11250 0.3
UC 206-20 1-1/4 2.4409 1.5 0.748 0.626 0.874 0.197 1/4-28UNF 0.197 19450 11250 0.29
UC207 35 72 42.9 20 17.5 25.4 7 M8x1 5.7 25700 15200 0.45
UC 207-20 1-1/4 2.8346 1.689 0.7874 0.689 1 0.276 5/16-24UNF 0.224 25700 15200 0.51
UC 207-21 1-5/16 2.8346 1.689 0.7874 0.689 1 0.276 5/16-24UNF 0.224 25700 15200 0.48
UC 207-22 1/3/8 2.8346 1.689 0.7874 0.689 1 0.276 5/16-24UNF 0.224 25700 15200 0.45
UC 207-23 1-7/16 2.8346 1.689 0.7874 0.689 1 0.276 5/16-24UNF 0.224 25700 15200 0.42
UC208 40 80 49.2 21 19 30.2 8 M8x1 6.2 29500 18100 0.6
UC 208-24 1-1/2 3.1496 1.937 0.8268 0.748 1.189 0.315 5/16-24UNF 0.244 29500 18100 0.64
UC 208-25 1-9/16 3.1496 1.937 0.8268 0.748 1.189 0.315 5/16-24UNF 0.244 29500 18100 0.61
UC209 45 85 49.2 22 19 30.2 8 M8x1 6.4 32700 20900 0.65
UC 209-26 1-5/8 3.3465 1.937 0.8661 0.748 1.189 0.315 5/16-24UNF 0.252 32700 20900 0.75
UC 209-27 1-11/16 3.3465 1.937 0.8661 0.748 1.189 0.315 5/16-24UNF 0.252 32700 20900 0.71
UC 209-28 1-3/4 3.3465 1.937 0.8661 0.748 1.189 0.315 5/16-24UNF 0.252 32700 20900 0.67
UC210 50 90 51.6 24 19 32.6 10 M10x1 6.5 35000 23200 0.75
UC 210-29 1-13/16 3.5433 2.0315 0.9449 0.748 1.283 0.394 3/8-24UNF 0.256 35000 23200 0.87



Bearing NO.

Dimensions(mm/in.)

 Dynamic load ratings(N) Static load ratings(N)

Weight

(kg)
d D B C S S1 G Ds F
UC 210-30 1-7/8 3.5433 2.0315 0.9449 0.748 1.283 0.394 3/8-24UNF 0.256 35000 23200 0.82
UC 210-31 1-15/16 3.5433 2.0315 0.9449 0.748 1.283 0.394 3/8-24UNF 0.256 35000 23200 0.77
UC 210-32 2 3.5433 2.0315 0.9449 0.748 1.283 0.394 3/8-24UNF 0.256 35000 23200 0.73
UC211 55 100 55.6 25 22.2 33.4 10 M10x1 7 43300 29200 0.99
UC 211-32 2 3.937 2.189 0.9843 0.874 1.315 0.394 3/8-24UNF 0.276 43300 29200 1.14
UC 211-33 2-1/16 3.937 2.189 0.9843 0.874 1.315 0.394 3/8-24UNF 0.276 43300 29200 1.08
UC 211-34 2-1/8 3.937 2.189 0.9843 0.874 1.315 0.394 3/8-24UNF 0.276 43300 29200 1.07
UC 211-35 2-3/16 3.937 2.189 0.9843 0.874 1.315 0.394 3/8-24UNF 0.276 43300 29200 0.967
UC212 60 110 65.1 27 25.4 39.7 10 M10x1 7.6 47700 32800 1.32
UC 212-36 2-1/4 4.3307 2.563 1.063 1 1.563 0.394 3/8-24UNF 0.299 47700 32800 1.52
UC 212-37 2-5/16 4.3307 2.563 1.063 1 1.563 0.394 3/8-24UNF 0.299 47700 32800 1.44
UC 212-38 2-3/8 4.3307 2.563 1.063 1 1.563 0.394 3/8-24UNF 0.299 47700 32800 1.37
UC 212-39 2-7/16 4.3307 2.563 1.063 1 1.563 0.394 3/8-24UNF 0.299 47700 32800 1.3
UC213 65 120 65.1 28 25.4 39.7 10 M10x1 8.5 57200 40000 1.7
UC 213-40 2-1/2 4.3307 2.563 1.1024 1 1.563 0.394 3/8-24UNF 0.335 57200 40000 1.79
UC 213-41 2-9/16 4.3307 2.563 1.1024 1 1.563 0.394 3/8-24UNF 0.335 57200 40000 1.7
UC214 70 125 74.6 29 30.2 44.4 12 M12x1.5 8.9 62100 44800 1.94
UC 214-42 2-5/8 4.9213 2.937 1.1417 1.189 1.748 0.472 7/16-20UNF 0.35 62100 44800 2.15
UC 214-43 2-11/16 4.9213 2.937 1.1417 1.189 1.748 0.472 7/16-20UNF 0.35 62100 44800 2.05
UC 214-44 2-3/4 4.9213 2.937 1.1417 1.189 1.748 0.472 7/16-20UNF 0.35 62100 44800 1.95



Bearing NO.

 Dimensions(mm/in.) Dynamic load ratings(N) Static load ratings(N) Weight

(kg)
d D B C S S1 G Ds

F
UC215 75 130 77.8 30 33.3 44.5 12 M12x1.5 9.2 66200 49300 2.16
UC 215-45 2-13/16 5.1181 3.063 1.1811 1.311 1.752 0.472 7/16-20UNF 0.362 66200 49300 2.16
UC 215-46 2-7/8 5.1181 3.063 1.1811 1.311 1.752 0.472 7/16-20UNF 0.362 66200 49300 2.41
UC 215-47 2-15/16 5.1181 3.063 1.1811 1.311 1.752 0.472 7/16-20UNF 0.362 66200 49300 2.3
UC 215-48 3 5.1181 3.063 1.1811 1.311 1.752 0.472 7/16-20UNF 0.362 66200 49300 2.1
UC216 80 140 82.6 32 33.3 49.3 12 M12x1.5 9.5 72600 53300 2.65
UC 216-49 3-1/16 5.5118 3.252 1.2598 1.311 1.9409 0.472 7/16-20UNF 0.374 72600 53300 2.83
UC 216-50 3-1/8 5.5118 3.252 1.2598 1.311 1.9409 0.472 7/16-20UNF 0.374 72600 53300 2.7
UC 216-51 3-3/16 5.5118 3.252 1.2598 1.311 1.9409 0.472 7/16-20UNF 0.374 72600 53300 2.57
UC217 85 150 85.7 34 34.1 51.6 12 M12x1.5 10.2 83300 63700 3.29
UC 217-52 3-1/4 5.9055 3.374 1.3386 1.341 2.031 0.472 7/16-20UNF 0.402 83300 63700 3.41
UC 217-53 3-5/16 5.9055 3.374 1.3386 1.341 2.031 0.472 7/16-20UNF 0.402 83300 63700 3.37
UC 217-55 3-7/16 5.9055 3.374 1.3386 1.341 2.031 0.472 7/16-20UNF 0.402 83300 63700 3.08
UC218 90 160 96 36 39.7 56.3 12 M12x1.5 11.2 96000 71100 4.04
UC 218-56 3-1/2 6.2992 3.7795 1.4173 1.563 2.217 0.472 1/2-20UNF 0.441 96000 71100 4.15
UC220 100 180 108 40 42 66 16 M14x1.5 13.1 122000 92800 4.56
UC 220-64 4 7.0866 4.252 1.5748 1.6535 2.5984 0.6299 9/16-18UNF 0.5157 122000 92800 4.35



CoatMaster as China insert ball bearing manufacturer, it is not only produce insert ball bearings with different material, but also Complete series Mounted Ball Bearing Unit as follows:

  1. Pillow block bearing
  2. 4-Bolt Flange unit
  3. 2-Bolt Flange unit
  4. Ajustable 2-Bolt Flange unit
  5. 3-Bolt Flange unit
  6. 4-Bolt Flange Cartridge unit
  7. Take-up units
  8. Section steel frame Take-up units
  9. Channel steel frame take-up units
  10. steel plate frame take-up units
  11. Cartridge units
  12. Hanger Units

What can we do in the face of the new coronavirus 2020?

/0 Comments/in /by

As everyone knows, a new coronal pneumonia virus broke out in China in January, Today is March 7th, and China has been working hard for more than a month to control the spread of the epidemic. We believe that the people who infected with the new pneumonia in other provinces outside Hubei will be cleared at the end of March, and the epidemic situation in Wuhan and other regions will also be greatly improved. China will soon be able to return to normal social situation.

In the past more than one month, Chinese society and people have paid a heavy cost to control the epidemic. On January 23, Wuhan was closed down the city, and on January 25, all of the China cities began to launch TOP Level response to major public health emergencies. China’s 1.4 billion people, except for special departments such as public service departments, are forbidden to go out, gather, all of the schools and factories are closed almost overnight, the whole society is at a standstill. China’s bearing industry and all its production and operation enterprises are at a standstill. The epidemic has a major impact on China’s economy and China Bearing industry.

The medical staff and medical resources of the whole country are deployed to all cities in Hubei Province, and various food production areas and vegetable production areas are constantly transporting all kinds of necessities to epidemic areas. It is with timely and reasonable resource allocation and strong guarantee that the epidemic area can concentrate on fighting against the virus. The efforts of the Chinese people can only be realized after experience.

So I would like to ask all the people in the world to pay attention to protecting themselves, others, the critical period and prevention in advance.

Let’s take a look at the epidemic situation in various countries today:

Date:03/07/2020

国家

新增确诊

累计确诊

治愈

死亡
region Newly diagnosed Cumulative diagnosis Cured Death
20652 23073 1969 452

亚洲

 Asia 1528 14685 1353 212

欧洲

 Europe 581 7816 575 221

北美洲

 North America 114 407 18 17

大洋洲

 Oceania 14 77 22 2

非洲

 Africa 16 46 1 0

南美洲

 South America 15 42 0 0

地区

新增确诊

累计确诊

治愈

死亡
省份 Province Newly diagnosed Cumulative diagnosis Cured Death
80815 55600 3073

湖北

 Hubei 74 67666 43527 2959

广东

 Guangdong 1 1352 1240 7

河南

 Henan 0 1272 1244 22

浙江

 Zhejiang 0 1215 1166 1

湖南

 Hunan 0 1018 960 4

安徽

 Anhui 0 990 979 6

江西

 Jiangxi 0 935 916 1

山东

 Shandong 0 758 629 6

江苏

 Jiangsu 0 631 606 –

重庆

 Chongqing 0 576 521 6

四川

 Sichuan 0 539 454 3

黑龙江

 Heilongjiang 0 481 405 13

北京

 Beijing 4 426 306 8

上海

 Shanghai 3 342 313 3

河北

 Hebei 0 318 307 6

福建

 Fujian 0 296 295 1

广西

 Guangxi 0 252 219 2

陕西

 Shanxi 0 245 226 1

云南

 Yunnan 0 174 170 2

海南

 Hainan 0 168 158 6

贵州

 Guizhou 0 146 117 2

天津

 Tianjin 0 136 128 3

山西

 Shanxi 0 133 126 –

辽宁

 Liaocheng 0 125 108 1

甘肃

 Gansu 17 120 87 2

香港

 Hongkong 3 108 51 2

吉林

 Jilin 0 93 90 1

新疆

 Xinjiang 0 76 72 3

宁夏

 NingXia 0 75 71 –

内蒙古

 Nei Monggol 0 75 67 1

台湾

 Taiwan 1 45 13 1

青海

 Qinghai 0 18 18 –

澳门

 Macao 0 10 10 –

西藏

 Tibet 0 1 1 –



What did the Chinese do during the outbreak of Virus?

Tools / raw materials

— Mask

— alcohol disinfectant

— thermometer

The epidemic is very serious. Many people are infected, mainly through droplets, coughs and sneezes. If one person is infected, the whole family may be infected. That’s a series problem.

  1. Step 1: always wear a mask when going out. It’s better to wear gloves, hats and glasses. This is more safe. If you don’t wear gloves, don’t touch the elevator door or elevator button with your hands. You should not only remind yourself, but also remind your family (it’s better to wear a medical surgical mask)
  2. second step: novel coronavirus pneumonia should be reduced to less people and places. Reduce bus and subway, do not have intimate contact with new crown pneumonia patients. You may also be infected. So, everyone, if you want to go to the hospital for medical observation, you should cooperate with the doctor. Note: if you have fever and cough, please consult the doctor in time.
  3. Step 3: if you go out and come back during the epidemic, you must disinfect it. You’d better take your temperature, wash your hands immediately, wash them with hand sanitizer and clean them.
  4. I’d like to give you a hint: I’m at home every day during the epidemic, and I feel bored. What are we going to do? I’ll tell you that you can do manual work, watch TV, do sports to improve your immunity, play with your children and so on, depending on your life.
  5. I know it’s boring for us to stay at home. It’s for our health and life. We don’t want to be infected, but a beautiful day will come. One day, we will take off our masks, adults will work in the office, children will run on the school playground, China will go, World will go.
