The electrically insulated bearings adopts a special spraying process. The outer surface of the bearing is spray-plated with a high-quality coating. The coating and the substrate have a strong binding force and good insulation performance. It can avoid the electric corrosion of the bearing by the induced current and prevent the current from affecting the grease and rolling elements. The damage caused by the raceway increases the service life of the bearing. The process is continuously improved. In the electrically insulated bearing, there is a layer with a thickness of 100 μm on the surface of the outer ring or the inner ring, which can withstand a voltage of up to 1000 V DC. The special spraying process can form a coating with uniform thickness and extremely strong adhesion, and then further processing to make it immune to the influence of moisture and humidity.
Electrically insulated bearings can avoid damage caused by electrical corrosion, so compared with ordinary bearings, they can ensure more reliable operation in motors. Compared with other insulation methods, such as shaft or housing insulation, it is more cost-effective and reliable. The dimensions and basic technical characteristics of insulated bearings are the same as those of non-insulated bearings, so they are 100% interchangeable.
Application of electrically insulated bearings
Electric power industry:
insulated cylindrical roller bearing for generator, wind power generator, hydro generator, thermal generator,
applicable to motor, generator, especially used in frequency conversion motor.

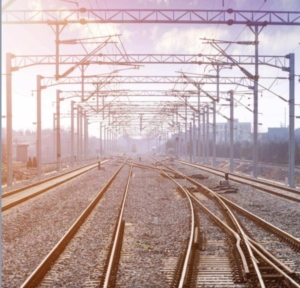

Railway Industry:
Insulated cylindrical roller bearing for diesel locomotive traction motor:
applied to locomotive, etc
Mechanical and metallurgical industry:
insulated bearings for high-power frequency conversion motors:
applied to cranes, textile machines, printing machines, iron making equipment, steel-making equipment, rolling equipment, cutting equipment, coking equipment, smelting complete equipment, etc
Mining machinery industry:
insulated bearing for high-power high-voltage motor,
insulated bearings for high-power explosion-proof motors:
applied to compressors, etc

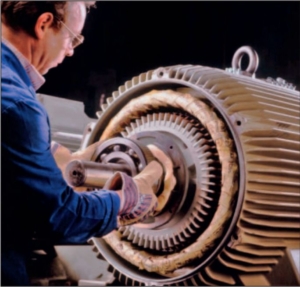

High voltage motors can be used to drive various machines. Such as compressor, water pump, crusher, cutting machine, transport machinery and other equipment, for mining, machinery industry, petrochemical industry, generator and other industries as prime mover. The motors used to drive the blowers, coal mills, rolling mills and hoists shall indicate the purpose and technical requirements when ordering, and special design shall be adopted to ensure reliable operation, electrically insulated bearing can save your time and support your machine More efficient.
https://www.china-bearing-manufacturer.com/wp-content/uploads/2020/01/current-insulating.jpg754800chinabearingadminhttps://www.china-bearing-manufacturer.com/wp-content/uploads/2019/11/CoatMaster-1.pngchinabearingadmin2020-01-30 11:27:552020-01-30 11:27:55Application of electrically insulated bearings
The electrically insulated bearings adopts a special spraying process. The outer surface of the bearing is spray-plated with a high-quality coating. The coating and the substrate have a strong binding force and good insulation performance. It can avoid the electric corrosion of the bearing by the induced current and prevent the current from affecting the grease and rolling elements. The damage caused by the raceway increases the service life of the bearing. The process is continuously improved. In the electrically insulated bearing, there is a layer with a thickness of 100 μm on the surface of the outer ring or the inner ring, which can withstand a voltage of up to 1000 V DC. The special spraying process can form a coating with uniform thickness and extremely strong adhesion, and then further processing to make it immune to the influence of moisture and humidity.

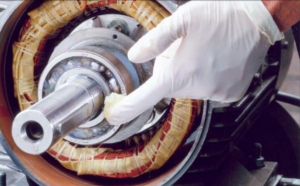

Electrically Insulated bearings are mainly used in motor products. Its use depends on the power state of the motor. Normal grid power supply has no high-frequency voltage and current components. Generally, electrically insulated bearings are not used. Only high-voltage motors and large motors such as 400 or more are used.
But now the frequency conversion power supply, The power quality contains a lot of high-frequency components, causing the motor shaft current to increase, so should be considered in the specifications above 400, even the smallest specifications also consider the installation to use Electrically Insulated Bearings, such as electric motors, electric rail locomotives, and other main motors generally use about 100KW. Electrically insulated bearings must be used (or other insulation structures must be used to ensure that shaft current does not flow).
Electrically insulated bearings can avoid damage caused by electrical corrosion, so compared with ordinary bearings, they can ensure more reliable operation in motors. Compared with other insulation methods, such as shaft or housing insulation, it is more cost-effective and reliable. The dimensions and basic technical characteristics of insulated bearings are the same as those of non-insulated bearings, so they are 100% interchangeable.
According to the bearing structure, insulated bearings can be divided into electrically insulated deep groove ball bearings, electrically insulated angular contact ball bearings, electrically insulated cylindrical roller bearings, Insulated taper roller bearings, inner or outer ring insulated bearings with oxide coatings, and hybrid bearings with electrically insulated ceramic rolling elements and so on.
Insulated deep groove ball bearings are suitable for high-speed and even very high-speed operation, and are very durable and do not require frequent maintenance. This type of bearing has a small friction coefficient, high limiting speed, and a wide range of sizes and forms. It is used in low-noise motors and other industries. It is the most widely used type of insulated bearing. It mainly bears radial load and can also bear -quantitative axial load.
Insulated angular contact ball bearings can support both radial and axial loads. Can work at higher speeds. The larger the contact angle, the higher the axial load capacity. High-precision and high-speed bearings usually adopt a contact angle of 15 degrees. Under the action of axial force, the contact angle will increase. Inner or outer ring of the insulated bearings with oxide coatings and hybrid bearings with electrically insulated ceramic rolling elements are mainly named for their product characteristics.

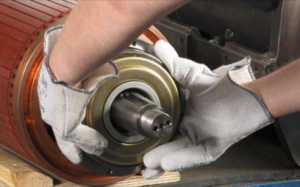

Even if the motor is strictly controlled during the manufacturing process, it is difficult to completely avoid the magnetic asymmetry of the armature and the rotor. This asymmetry will generate a voltage between the stators, which will generate a current through the bearing, especially in AC motors, this current generates pits, melting marks, galvanic erosion, discoloration, wear and other damage on the surface of the bearing raceway and rolling elements. Of course, this phenomenon also occurs with motors using inverter and frequency conversion technology. In order to stop this kind of current from flowing through the bearing, it is necessary to cut off the circuit, and the insulated bearing and insulated bearing room have emerged at the historic moment. Insulated bearing chamber is made of a certain hardness of insulating material in the bore and end face of the bearing chamber.
CoatMaster As the Top Brand of China Insulated Bearing manufacturer, focus on reserch & develop Electrically Insulated Bearing, it can provide various types of insulated bearings
Inner or outer ring insulated bearing with oxide coating
Hybrid bearing with electric insulating ceramic rolling element
CoatMaster as the China bearing manufacturer & exporter & supplier, it can supply complete electrically insulated bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG Current insulated Bearing, NSK Insulated Bearing, SKF INSOCOAT Bearing, NTN, NKE are also have manufacture production for electrically insulated Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Small order is available also by us, DHL,UPS,Fedex is the best choice for shipment for small quantity, the weight more than 80kg and less than 500 kg, we suggest ship them by air to port, we alway supply for the best solution for your applications, just contact with CoatMaster for start our service.
https://www.china-bearing-manufacturer.com/wp-content/uploads/2020/01/Insulated-bearing.jpg630800chinabearingadminhttps://www.china-bearing-manufacturer.com/wp-content/uploads/2019/11/CoatMaster-1.pngchinabearingadmin2020-01-29 18:10:542020-01-29 18:11:55Why we use electrically insulated bearing?
Xiangyang Automobile Bearing Co., Ltd., founded in 1968, is a national key project of 120 million yuan invested by the state during the fourth Five-Year Plan period, which is specially designed to manufacture supporting bearings for automobiles in China and the biggest automobile bearing manufacturer of China. In 1993, Xiangyang Automobile Bearing Co., Ltd. completed the joint-stock reform and listed on the Shenzhen Stock Exchange in 1996 (Code: 000678). In 2003, Xiangyang Automobile Bearing Co., Ltd. successfully implemented the reform and restructuring with the main content of “state-owned employee identity conversion” In April 2009, nearly 10000 employees completed the identity transformation at one time; in April 2009, they successfully implemented the strategic restructuring with Tri-Ring Group, and the actual controller of the enterprise was changed to Tri-Ring Group. in 2011, the Sanhuan Xiangxi Industrial Park, with an investment of 3 billion yuan and an area of 1070 mu, was the Automobile Bearing Industrial Park constructed once in the bearing industry.
In August 2013, ZXY purchased the biggest bearing factory- Fabryka Lozysk Tocznych – Krasnik S.A. (KFLT) in Poland with the great support of Tri-Ring Group, and stepped into the range of multinational companies. it now has about 4500 employees. With total assets amount to USD 326 million, It has more than 4000 sets of main equipments with an annual capacity of 70 million pieces. It is the biggest automobile bearing manufacturer in China and the national key bearings export base.
The main bearing products of Xiangyang Automobile Bearing Co., Ltd
Deep groove ball bearing
The deep groove ball bearing is simple in structure and convenient in use. It is a kind of bearing with the largest production batch and the widest application range. It is mainly used to bear radial load. When the radial clearance of the bearing increases, it has the performance of angular contact ball bearing and does not bear the increased axial load. This kind of bearing has small friction coefficient, low vibration and noise, and high limit speed. Not resistant to impact, not suitable for heavy load.
Deep groove ball bearing generally adopts steel plate stamping wave cage, or engineering plastic and copper solid cage. According to the different use environment, the special grease can be added in the sealed bearing.
ZXY can mass produce ordinary deep groove ball bearing with outer diameter less than 260mm. It is used in gearbox, engine, water pump and other parts of all kinds of automobiles, and is suitable for other kinds of machinery. According to the requirements of users, deep groove ball bearings with high precision (P6, P5, P4), various clearance groups, special vibration and noise requirements (Z1, Z2 or V1, V2) can be manufactured.
60000 type deep groove ball bearing;
60000-n type deep groove ball bearing with stop groove around
60000-z type deep groove ball bearing with dust cover on one side and 60000-2z type with dust cover on both sides;
60000-rs type deep groove ball bearing with dust ring (contact type) on one side and 60000-2rs type contact seal on both sides;
60000-rz deep groove ball bearing with sealing ring on one side and 60000-2rs deep groove ball bearing with non-contact on both sides;
Double row deep groove ball bearing 40000 type;
Deep groove ball bearing with ball loading notch 200, 300 or 200V, 300V
2. Taper roller bearings
Tapered roller bearings are mainly used to bear the combined radial and axial loads. The larger the contact angle of the outer ring raceway, the greater the bearing capacity of the axial and radial load ratio. The linear contact between the roller and the raceway makes the tapered roller bearing have greater bearing capacity. The bearing is a separate type bearing, and the inner components (inner ring, tapered roller and cage) and outer ring can be installed separately. The characteristics of tapered roller bearing make it an ideal choice in many applications.
The radial and axial clearance of tapered roller bearings can be adjusted in the process of installation and use, and can also be installed with axial preload. The size of axial clearance has a great influence on whether the bearing can work well. When the axial clearance is too small, the temperature rises; when the axial clearance is too large, the bearing is easy to be damaged. Therefore, pay special attention to adjust the axial clearance of the bearing during installation and operation.
ZXY can produce metric series and inch series tapered roller bearings, and also can design and manufacture various non-standard series tapered roller bearings for users. Widely used in automobile differential, wheel hub, gearbox and other parts.
Cylindrical roller bearing
Generally, cylindrical roller bearings are only used to bear radial load, and the roller and the raceway of the ferrule are in linear contact, so they are axial separable bearings. Compared with the deep groove ball bearing with the same dimension, the cylindrical roller bearing has larger radial bearing capacity. The bearing has the advantages of convenient installation and disassembly, impact resistance, good rigidity, limited displacement in axial direction and can not bear axial load alone.
Cylindrical roller bearings have n, Nu, NJ, NUP, RNU, RN and other structural types.
The cylindrical roller bearing of ZXY adopts the structure of optimized design. The internal cage of the bearing has the forms of steel plate stamping, copper solid, engineering plastics and no cage filled with rollers. The convex roller and filled roller structure can effectively improve the radial load capacity of the cylindrical roller bearing.
ZXY cylindrical roller bearing products are widely used in gearbox of various kinds of automobiles and tractors, guide bearing of axle differential, shaft support of water pump, and other machines. They are used in the shaft with good rigidity and axial displacement, and the machine parts that need axial separation bearing for installation and disassembly.
Needle roller bearing
The radial structure of needle roller bearing is compact, its inner diameter and load capacity are the same as other types of bearings, and its outer diameter is the smallest. It is especially suitable for supporting structures with smaller radial installation application. It can only bear radial load. When no inner ring or outer ring is selected, and no inner or outer ring rolling bearing is selected, the hardness, machining accuracy and surface quality of the surface of the shaft or shell hole as the raceway shall be similar to that of the raceway of the bearing ring, so as to ensure that the load capacity and operation performance are the same as that of the raceway bearing.
The structure of needle bearing includes single row and double row K-type, stamping M-type, engineering plastic cage, double half split type, engineering plastic cage structure, etc. The convex machining of the rolling surface of the needle, the surface strengthening treatment of the cage and the uneven distribution of the window hole of the needle are adopted. The transmission needle bearing is often used with the needle bushing.
ZXY can produce all kinds of needle roller bearings, suitable for gearbox, universal joint support, rear axle suspension and other mechanical selection
Clutch release bearing
Clutch release bearing is an important part of automobile. It is installed between clutch and transmission. Because the clutch pressure plate, release lever and engine crankshaft run synchronously, in order to ensure the smooth engagement, soft separation, reduce wear and prolong the service life of clutch and the whole transmission system, it is necessary to make the release lever rotate at the same time through the release bearing Move axially along the clutch output shaft. The disassembly and assembly of clutch release bearing is complex and time-consuming. Therefore, the bearing with high reliability and guaranteed quality can be selected and properly maintained in use, which can prolong the service life of bearing and improve the economic benefits of users.
Wheel hub bearing
Wheel Hub bearing is a special bearing applied to the wheels of automobiles, which bears the weight of the whole vehicle, acceleration force, deceleration force, turning lateral force and vibration and impact force brought by the road conditions. In order to ensure the safety and reliability of braking, anti lock braking system (ABS) is becoming more and more popular. Therefore, the market demand for sensor built-in hub bearing unit is also growing. According to its development, hub bearing can be divided into the first generation, the second generation and the third generation.
Compared with the traditional two sets of single row bearings, the first generation hub bearing integrates the two sets of bearings into one, which is simple and reliable to apply preload, convenient to install, and does not need gasket and midway grease supply. Compact structure, built-in high-performance seal ring, saving installation space and time.
Compared with the first generation hub bearing, the second generation hub bearing does not need to press into the knuckle, so it is more convenient to install, and the preloading is simpler and more reliable. If the outer ring rotates, the sensor rotor can also be installed. The product is lightweight and integrated.
Compared with the second-generation hub bearing, the third-generation hub bearing has been selected and pre tightened by the bearing manufacturer before leaving the factory. It is easier to install the anti lock brake system (ABS) sensor and lighter and more integrated.
7.Cross shaft Bearing
The cross shaft bearing, also known as the cross joint bearing, is mainly used in commercial vehicles. Generally, it is composed of a cross shaft and four stamped outer ring roller bearings. Each outer diameter of the cross shaft needs to be processed with high precision before it can be used as the inner ring of the bearing to contact with the needle roller. The needle roller bearing has a self sealing device, which can prevent dust and grease leakage and improve the service life of the bearing. When it is used, the maintenance personnel shall regularly The hollow bearing through the cross shaft is grease lubricated for the four outer bearings. The cross axle is a part to realize the power transmission of variable angle, which is used to change the direction of transmission axis. It is the “joint” part of the universal drive device of the automobile drive system. The cross axle type rigid universal joint is a widely used non constant velocity universal joint in automobiles. The maximum allowable intersection angle of two adjacent axles is 15 ゜ – 20 ゜. The spider is one of the key parts of the spider type rigid universal joint.
In November 1996, ZXY first passed the ISO9001 quality review in the bearing industry, and obtained the ISO9001 quality standard certification; at the end of 1997, it obtained the ISO9001 product quality certification of FMRC company in the United States; in March 2005, it passed the audit of TS16949 quality management system by SGS company, the Swiss international certification agency, and obtained the TS16949 certificate.
ZXY has an engineering technology center specialized in the research and development and application of new products and technologies of automobile bearings, and a large number of senior professional engineering and technical personnel engaged in the development of new products. In addition to automobile bearings, it also involves a variety of bearing products in the fields of machinery, agricultural machinery, home appliances and wind power. The company’s technology research and development ability is absolutely in the leading position in the domestic automobile bearing industry, with many national and provincial scientific achievement awards, among which many technologies such as reinforced tapered roller bearing, full roller cylindrical bearing, automobile air conditioning compressor and clutch bearing simulation test machine have national patents. The company’s products are capable of supporting series of bearing products such as Dongfeng, Jiefang, Sitai, Beibei Benz, JAC, Beiqi Futian, Yuejin, Isuzu, etc., and can design and manufacture all kinds of bearing and parts products for special purposes for users.
ZXY has formed a supporting bearing system for heavy-duty, medium-sized, light-duty, micro, car and other vehicle types. It has set up 28 sales branches and 14 distribution centers in China. Its sales and service network covers all large and medium-sized cities in China. ZXY brand bearings enjoy a high reputation in the auto parts market. Its products are exported to Europe, America, Southeast Asia and other countries and regions.
ZXY has established the enterprise development strategy of “building China’s first-class automobile bearing R & D and production base”. The company is further improving the transformation of car bearing project, introducing foreign advanced car bearing production technology and equipment, and forming the capacity of mass production of automobile bearings, while also expanding the capacity of production of heavy truck bearings. At present, Xiangxi is planning to build “Xiangxi Industrial Park”, build “China’s first-class, international advanced” automobile bearing R & D and production base, and make unremitting efforts to build China’s best automobile bearing.
https://www.china-bearing-manufacturer.com/wp-content/uploads/2020/01/201507171020095982.jpg320800chinabearingadminhttps://www.china-bearing-manufacturer.com/wp-content/uploads/2019/11/CoatMaster-1.pngchinabearingadmin2020-01-29 10:41:032020-01-29 10:41:03biggest automobile bearing manufacturer of China-ZXY
Luoyang Bearing Research Institute Co., Ltd. (ZYS) is a high-tech enterprise that focuses on the research and development of “high, precision, sharp and special” bearing products for the national economic construction in various fields and national defense construction. Its predecessor, Luoyang Bearing Research Institute, was founded in 1958. It is the only national class a comprehensive research institute in China’s bearing industry. It entered China Machinery Industry Group Co., Ltd. in 1999 and was transformed into a scientific and technological enterprise.
ZYS focuses on the development of high-performance bearing products for key engine of national economy and national defense construction, and mass production of various types of high-end equipment bearings and components with inner diameter of 0.6mm to outer diameter of 6.8m. Its main business is research, development, production and sales of precision and special bearings, high-speed machine tool spindles, bearing special equipment and testing instruments, bearing testing machines and bearing special materials. Its products are widely used in aerospace, Naval Weapons, machine tools, wind power generation, mine metallurgy, petrochemical, medical equipment, automobile and rail transit, engineering machinery, intelligent system Manufacturing service and other fields.
With a total assets of 2.06 billion yuan, the company has a research and development center and three industrial bases, covering an area of more than 700 mu, advanced bearing manufacturing equipment and world-class testing instruments, strong strength in manufacturing, testing and testing of high-precision and high reliability bearings and related parts, more than 380 engineering and technical personnel in various disciplines related to bearings, and more than 380 in bearing Design, basic theoretical research, lubrication technology, metal and non-metal materials, testing and industrial standards, etc. remain in the leading position. The company has national bearing quality supervision and inspection center, national bearing accreditation laboratory, industrial (rolling bearing) product quality control and technical evaluation laboratory, national rolling bearing Standardization Technical Committee, ISO / TC4 domestic technology centralized unit, China Bearing Industry Association Technical Committee, mechanical industry professional skills appraisal bearing industry sub center, national rolling bearing production Strategic alliance of industrial technology innovation, national and local joint Engineering Laboratory of high-end bearing tribology technology and application, National Key Laboratory of shield and Tunneling Technology (bearing), engineering research center of high-speed precision bearing in mechanical industry, engineering technology research center of machine tool spindle unit in Henan Province, Key Laboratory of high-performance bearing technology in Henan Province, National Postdoctoral research workstation, he Many scientific research, test and service institutions, such as the academician workstation of bearing common technology in southern province, patent exchange station of the State Intellectual Property Office, have achieved 908 major scientific research achievements so far, including 31 national awards such as the National Invention Award and the national science and technology progress award, 234 provincial and ministerial science and technology achievements awards, 792 authorized patents, 277 of which are invention patents, and the preparation and revision of bearings More than 670 items of industry technical standards, 457 issues of journal bearing.
As the main supporting unit in the field of China’s aerospace, the company has successfully completed the supporting tasks of the landmark “Dongfanghong” series artificial earth satellites, “Shenzhou” series manned spacecraft, “Chang’e” lunar exploration project, “Shenzhou” and “Tiangong” Rendezvous and docking bearings and components. It is also an important supplier of parts for CNC machine tools, shipbuilding, rail transit, aviation manufacturing, automobile industry, wind power and other industries at home and abroad. The company has successively won the national high-tech project construction outstanding contribution award, national defense science and technology industry coordination advanced unit, national defense science and technology innovation team, national enterprise and public intellectual property demonstration unit, Henan innovation leading enterprise and other honors.
ZYS precision angular contact ball bearing is divided into four series: high-speed angular contact bearing (Standard Series), ultra-high-speed angular contact ball bearing, high-speed sealed angular contact ball bearing and high-speed electric spindle bearing.
Generally, the inner and outer rings of rolling bearings are made of high carbon chromium bearing steel, but in some applications, such as in places requiring ultra-high speed, wear resistance, low temperature rise, long life and high reliability, the performance of steel bearings can not meet the requirements of working conditions, so it is necessary to select bearing materials with better performance. Among them, silicon nitride ceramic is considered to be the most ideal rolling bearing material instead of bearing steel. ZYS also provides widely used hybrid ceramic angular contact ball bearings for high-speed precision machine tool spindles and other high-speed precision machine spindles, that is, the inner and outer rings of the bearings are made of high-quality bearing steel, while the rolling elements are made of silicon nitride ceramic.
Compared with the angular contact ball bearing made of the same structure, size and standard steel, the hybrid ceramic angular contact ball bearing has the advantages of high speed performance, high rigidity, low friction heating and long service life.
ZYS angular contact ball bearings can bear radial load and one direction axial load. When the bearing withstands radial loads, axial force will be generated on inner ring. Therefore, the single-row angular contact ball bearings are often used with other bearings which can withstand axial load in the opposite direction. That is, angular contact ball bearings are commonly used in pair, or in groups with three, four and even five bearings.
Contact angles
The contact angles of ZYS angular contact ball bearings for machine tool are 15° and 25°. The bearing with 15° contact angle is used when the high speed and light axial load are needed, while the 25° contact angle bearing should be adopted on the contrary.
Four dimension series
The precision angular contact ball bearings for spindles have four dimension series, 718, 719, 70 and 72. With the same inner diameter, the outer diameter and the width of 718, 719, 70 and 72 increase in sequence.
The types and performance of ZYS angular contact ball bearings
ZYS angular contact ball bearing series
Structures
Dimension series
Bore size range
Performance
High precision angular
contact ball bearing
718 C
718 AC
719 C
719 AC
70 C
70 AC
72 C 72 AC
718:10～360mm
719:8～460mm
70: 8～380mm 72: 8～220mm
High speed;
Large loading capacity;
Suit for grease
or oil-mist lubrication
High speed angular contact ball
bearing(incl. hybrid ball bearing)
H719 C
H719 AC
H70 C
H70 AC
H719 C/HQ1
H719 AC/HQ
H70 C/HQ1
H70 AC/HQ1
High speed bearings for inner diameter
grinding spindles (incl. hybrid ball bearing)
B70 C
B70 C/HQ1
B70 C:10～60mm
B70 C /HQ1:10～60mm
Super speed;
High rigidity;
Suit for oil mist lubrication
Application:
•Machine tool spindle
•high-frequency motor
•Robot technology
•gas turbine
•centrifuge
•small-size automobile front wheels
•differential pinion shaft
Advantages:
As an important type of machine tool bearing, ZYS angular contact ball bearing has the following advantages:
The chamfer arc radius of rings is reasonable, which is not only convenient to install, but also guaranteed to improve the installation precision and reduce the risk of the related parts being bumped;
•The speed performance is outstanding
•Unique heat treatment process allows products to achieve the best dimensional stability and rigidity, so as to reduce wear and tear;
•Multiple pre-load levels can help to meet different requirements for speed and system stiffness, which is more reasonable to select and use the levels.
ZYS Ball screw support bearing is a kind of one-direction angular contact thrust ball bearing (contact angle 60°) with high precision, high speed, high axial stiffness, low friction, long life and transient high/low speed conversion. The bearing is particularly suitable for the supporting of ball screw and similar transmitting components in high-speed precision CNC machine tools.
ZYS precision ball screw support bearings include four kinds of products: 7602, 7603, BS, BSS. The 7602 and 7603 series are standard metric, with the inner diameters from 12mm to 130mm; BS series are non-standard metric and BSS series are inch series.
2.Slewing bearings
3.Wind turbine bearings
4.Bearing for Rollings Mills
5.Special Precision Bearings
6.Bearings for Rails Transportation
7.Automotive Bearings
8.Large-size bearings
9.Hydrodynamic bearings
10.One-way bearings
11.Spherical plain bearings
12.Standard ball bearings
13.Tapered roller bearings
ZYS as the China Bearing Manufacturer and industry standard company,it is only only produce precision bearings, but also supply Precision bearing instruments, bearing testing machines, bearing manufacturing machines, bearing relevant materials, abrasion-resistant materials. ZYS adheres to the business philosophy of integrity, preciseness and win-win innovation, adheres to scientific and technological innovation, adheres to the development of modern manufacturing service industry and other characteristic advantageous industries, creates the innovation leader of China’s bearing industry, builds China’s high-end bearing industrialization base, and is an international well-known enterprise in the world’s rolling & transmission field.
Fujian Longxi bearing (Group) Co., Ltd. is a modern state-owned group company that produces and operates joint bearings（Spherical Plain Bearing), tapered roller bearings, rolling functional parts and high-end mechanical parts. It is one of the top 100 enterprises with core competitiveness in China’s machinery industry, a key high-tech enterprise under the national Torch Program, a national innovative pilot enterprise and the only one in the national bearing industry The industry’s single champion demonstration enterprise and the national industrial brand cultivation demonstration enterprise are the leaders of the spherical plain bearing (joint bearing) manufacturer in China.
The company has several holding subsidiaries, such as Fujian Yong’an Bearing Co., Ltd., Mintai Longma Linear Technology Co., Ltd., Fujian jinchanglong Machinery Technology Co., Ltd., and Longxi bearing America Co., Ltd., with an annual output of 15 million sets of joint bearings, 8 million sets of tapered roller bearings and Ag bearings, 1.82 million sets of rolling functional components, and 2.6 million maintenance free cross shafts Production capacity of 20 million pieces and shaft sleeves. The leading products of the company are the number of spherical bearings and the volume of production and sales, ranking first in the world. They are widely used in all kinds of machinery and equipment and national key projects in various sectors of the national economy, such as Shenzhou series, Chang’e series, National Observatory FAST project, Tiangong, big plane, Shanghai Center Tower, etc., and exported to more than 40 industrial developed countries and regions in Europe, America and Asia. The company vigorously develops aviation high-end joint bearings, and has successively undertaken more than 30 national and provincial scientific research projects such as research on general technology of aviation joint bearings, construction of research and maintenance conditions for aviation joint bearings, among which “construction of technological innovation platform for joint bearing products”, “PTFE fabric liner for aviation self-lubricating joint bearings” and “R & D and industrialization of high-end self-lubricating joint bearings” have been awarded Fujian science and technology progress first and second prizes, “long life high reliability heavy truck thrust rod joint bearing” won the second prize of Fujian technology invention. It has successfully provided supporting products for national air, space, sea and land high-tech projects, effectively reversed the long-term dependence on imports of high-end joint bearings in the aviation field, and become the main contractor of high-end joint bearings in China’s aviation industry. The company not only can develop as and en standard aviation joint bearings, but also can develop all kinds of non-standard aviation joint bearings. It has passed the most rigorous a-standard bearing certification of navair laboratory, the most authoritative experimental organization in the field of (spherical plain bearing) joint bearings. It is the only enterprise in China that has passed the certification. The developed 8 categories and more than 6000 specifications of aviation (spherical plain bearing) joint bearings are listed in the U.S. government procurement qualification Product catalog (qpl-as81820).
The company has a perfect R & D system and strong R & D capability. It has a national enterprise technology center, the only spherical plain bearing Research Institute in China and a national joint bearing testing and experiment center. It has been approved as the Key Laboratory of spherical plain bearing enterprises in Fujian Province, the research and development center of precision bearing engineering in Fujian Province, and the research and development center of high-end joint bearing engineering in Fujian Province. It has established a postdoctoral research workstation for enterprises It is the Secretariat unit of the joint bearing sub Technical Committee of the national rolling bearing Standardization Technical Committee, the main drafting unit of the joint bearing national standards and industry standards, the only domestic drafting unit participating in the international ISO spherical plain bearing standards. It has won the first prize of Fujian Province standard contribution award, and now has 85 valid authorized patents, 37 of which are authorized invention patents.
Scope of Fujian Longxi bearing company products:
Lubricating radial spherical plain bearing
Self lubricating radial spherical plain bearing
Angular contact spherical plain bearing
Thrust spherical plain bearing
Rod end spherical plain bearing
Spherical plain bearing of rod end with housing and lock
Ball Joint Rod Ends
Lubricating radial spherical plain bearing
1. Bearing number:
GE4E–GE12E
GE15ES–GE300ES
GE15ES-2RS –GE300ES-2RS
sliding friction couples: Steel / steel
Product features: the outer ring has an axial seam, the inner and outer rings are made of bearing steel, quenched, phosphated, sliding surface coated with molybdenum disulfide. Except for the model post code e, other models have lubricating oil groove oil holes in the inner and outer rings, and the post code – 2RS means that both ends of the outer ring are provided with sealing rings.
Product features: the outer ring has an axial seam, the inner and outer rings are made of bearing steel, quenched, phosphated, sliding surface coated with molybdenum disulfide. Except for the model post code e, other models have lubricating oil groove oil holes in the inner and outer rings, and the post code – 2RS means that both ends of the outer ring are provided with sealing rings.
Operating temperature range:
GEG… E GEG… Es – 50 ℃ ~ + 150 ℃
GEG… ES-2RS -30℃～+130℃
3 Bearing number:
GEEW… ES 12 ～ 320
Sliding friction Couples: Steel / steel
Features: both ends of the inner ring are provided with protruding cylinder, and the outer ring has an axial slot. The inner and outer rings are made of bearing steel, which are hardened, phosphated and coated with molybdenum disulfide on the sliding surface.
Operating temperature range: – 50 ℃ ■ + 150 ℃
4. Bearing number:
GEEM… ES-2RS 20 ~ 120
Sliding friction Couples: Steel / steel
Features: the inner and outer rings are made of bearing steel, quenched, phosphated, and coated with molybdenum disulfide on the sliding surface. The post code is – 2RS, and the outer rings are made of sealing rings.
Operating temperature range: – 30 ℃ ■ + 130 ℃
5. Bearing number:
GEF…ES 12～150
Sliding friction couples: Steel / steel
Product features: the product features are the same as ge… ES series.
Operating temperature range: – 50 ℃ ■ + 150 ℃
6. Bearing number:
GE… XS / K 12 ～ 150
Sliding friction couples: Steel / steel
Product features: the product features are the same as GEC… XS series.
Operating temperature range: – 50 ℃ ■ + 150 ℃
7. Bearing number:
GEZ…ES 12.7～304.8
GEZ…ES-2RS 19.05～304.8
Sliding friction couples: Steel / steel
Product features: GEZ… ES product features are the same as GE… ES series, but in Inch size.
GEZ… ES-2rs products feature the same features as Gez… Es-2rs series, but in English size.
Operating temperature range:
GEZ… ES – 50 ~ + 150 ℃
GEZ…ES-2RS -30℃～+130℃
8. Bearing number:
GEWZ… ES 12.7～152.4
GEWZ…ES-2RS 19.05～152.4
Sliding friction couples: Steel / steel
Product features: GEWZ… Es product features and geew The ES series are the same, but inch size.
GEWZ… ES-2RS product features and GEEM The es-2rs series is the same, but inch size.
Operating temperature range:
GEWZ… ES – 50 ℃ ~ + 150 ℃
GEWZ…ES-2RS -30℃～+130℃
9. Bearing number:
GEGZ… ES 31.75～139.7
GEGZ…ES-2RS 31.75～139.7
Sliding friction couples: Steel / steel
Product features: GEGZ… ES product features and GEG The ES series are the same, but inch size.
Gegz… Es-2rs product features and GEG The es-2rs series is the same, but inch size.
Operating temperature range:
GEGZ… ES – 50 ℃ ~ + 150 ℃
GEGZ…ES-2RS -30℃～+130℃
10. Bearing number:
GEGZ…HS/K 31.75～139.7
Sliding friction Couples: Steel / steel
Features: the outer ring is divided into two parts radially, with a spacer in the middle. The inner and outer rings are made of bearing steel, quenched, phosphated, and the sliding surface coated with molybdenum disulfide.
Operating temperature range: – 50 ℃ ■ + 150 ℃
Fujian Longxi bearing (Group) Co., Ltd, As the biggest spherical plain bearings manufacturer in China, it is not only produce lubrication radial spherical plain bearing, but also the self-lubrication radial spherical plain bearing, angular contact spherical plain bearing, thrust spherical plain bearing, rod end spherical plain bearing, spherical plain bearing of rod end with housing and lock, ball joint rod ends. here we only talk about the lubrication spherical plain bearing, we would like to introduce more if have chance, if you want to know more about LS Bearing details, just contact with us by Email or by phone any time.
Baota Industrial Co., Ltd. (formerly Northwest Bearing Co., Ltd.), located in Yinchuan City, the capital of Ningxia Hui Autonomous Region, was founded in 1965. In April 1996, Northwest Bearing Co., Ltd. was established, which is the first A-share listing in China’s bearing industry.
Baota Industrial Co., Ltd. (formerly Northwest Bearing Co., Ltd.) is based on the development position of the western part of the motherland, equipping China, and serving the world. It can produce outer diameters of 40 mm to 4000 mm in accordance with international standards, the latest national technical standards and special customer requirements. More than 6000 kinds of bearings. Products are widely used in petroleum machinery, metallurgical rolling mills, heavy-duty vehicles, construction machinery and mining machinery, rail transportation, military equipment, precision motors and other fields. Customers cover the country and are exported to more than 50 countries in Europe, the United States, Asia, and Africa. area.
The company formerly known as the northwest bearing factory, is a third-line enterprise, founded in 1965 in the depths of Helan Mountain. In 1982, it began to move to Yinchuan urban area. It took ten years to build a modern factory in the beautiful saishanghu City Yinchuan urban area. It has become one of the 520 large enterprises supported by the state, one of the top 100 enterprises in the national machinery industry, and one of the backbone enterprises in the national bearing industry. It is one of the largest professional bearing production enterprises in Western China. In 1996, it was restructured and listed, becoming the first listed company in China’s bearing industry. In 2006, NXZ brand of the company was recognized as a well-known trademark in China. In 2008, it obtained the national export exemption qualification. In 2011, Baota Petrochemical Group became the controlling shareholder of the company, established the grand blueprint of building the company into a production base of high-end bearings and a first-class brand enterprise in China by taking strengthening the bearing industry as the main line, aiming at strategic emerging industries and major equipment manufacturing industries, seizing the commanding heights of Science and technology and market.
Northwest Bearing Co., Ltd. is the first listed bearing manufacturer in China. After more than 30 years of development, Northwest Bearing Co., Ltd. has stepped into the ranks of China’s 100 largest mechanical industry enterprises and become one of the largest bearing production enterprises in China. Main production and sales of all kinds of rolling bearings, products are exported to more than 50 countries and regions. The company’s technology center is recognized as a national enterprise technology center, developing nearly 200 kinds of new products every year. In 2000, more than 100 kinds of new products have been developed to fill the domestic gap, and a large number of products have reached the advanced level of similar products abroad. The company has perfect quality system and reliable quality assurance ability. In 2003, it passed ISO9001:2000 quality system certification. It has won many honors, such as “May 1st” labor certificate, “national quality and benefit oriented advanced enterprise” and “national quality Wanlixing advanced enterprise”.
In 2008 and 2009, he successively undertook the R & D of many new technologies and products, such as key technological innovation projects, pilot production projects of key new products in the autonomous region, scientific and technological research projects in the autonomous region, capital projects for optimizing the import and export structure of electromechanical and high-tech products, and has applied for 6 patents. The bidirectional cylindrical roller thrust bearing of new structure, rotary table bearing and backing bearing of oil drilling rig have been awarded In December 2008, it passed the appraisal of scientific and technological achievements of the autonomous region. Through the implementation of the project, the scientific research level of the engineering and technical personnel of the company has been improved. Three people were selected into the “new century 313 talent project” of the autonomous region, one received special allowance from the government of the autonomous region, and two obtained the qualification of professor level senior engineer.
According to the overall plan of the third line construction of the state, with the approval of the former first Ministry of machinery industry, Wafangdian Bearing Factory was built. From the end of 1964 to the beginning of 1965, the first Ministry of machinery sent personnel to Ningxia for investigation twice, and established the northwest bearing factory in Dashuigou, Pingluo County, Ningxia, which met the requirements of “relying on mountains, concealing and dispersing” combat readiness. In April 1996, the original northwest bearing factory established Northwest Bearing Co., Ltd., the first listed company in China’s bearing industry, through joint-stock transformation. In 47 years of development and construction, the West axis has experienced three stages.
Stage one
From 1965 to 1981, it was the stage of building factories in mountainous areas. Thousands of builders from Wafangdian Bearing Factory and all over the country have been working hard in Dashuigou to build roads, bridges and factories. After several years of hard work, it was put into production in 1970. In the next few years, the factory developed slightly, but due to its remote location, inconvenient transportation, the production lingered. In the early 1980s, the production jumped into a low ebb and became a big loss maker in Ningxia at that time.
The second stage
From 1982 to 1992, it was the stage of adjustment and transformation. That is to say, the relocation from Dashuigou in Helan Mountain to Yinchuan city will be carried out. With the concern and support of the party and the government, the company merged the original Yinchuan bearing factory, opened a new factory in the new urban area of Yinchuan City, and started its second business. In 1986, the main production plants, such as material preparation, forging, heat treatment, lathe workers, medium-sized and large-scale ones, were moved to Yinchuan. Later, all the production plants, auxiliary production plants and thousands of employees’ families were gradually moved to the new plant area. Without asking for a penny from the state, without stopping production for a day, and with very hard production and life, it took 10 years to build infrastructure, move, produce, transform and develop at the same time. At the end of 1992, it successfully completed the historical task of adjustment and relocation. People of West axis composed a song of entrepreneurship and victory with wisdom and heart blood.
The third stage
Since 1993, it is a stage of rapid development. In 1996, Northwest Bearing Co., Ltd. was founded. From 2002 to 2006, we put forward and achieved the goal of “three years to get rid of poverty, five years to double and leap forward development”. Then we put forward the goal of “three to five years to achieve a total sales of 1 billion yuan and 10 years to enter the top five industries”. In 2007, after the assets reorganization, China Great Wall Asset management company obtained 81.92 million shares of West axis held by West axis group, accounting for 37.78% of the total share capital, becoming the largest shareholder of West axis. “NXZ” trademark is recognized as “China’s well-known trademark”. In 2008, the company won the honorary titles of “national export commodity exemption qualification”, “autonomous region’s oil R & D and innovation team”, and passed the “national high-tech enterprise certification”.
Advantage of NXZ Bearing
1. The CAD / CAPP / PDM integrated R & D system is advanced in China and has strong product R & D ability. It can provide users with technical support in bearing selection, installation guidance, use and maintenance, etc.
2. Personalized design can be carried out according to user needs and spatial structure to meet user needs.
3. The bearing structure of petroleum machinery is advanced, with high reliability and long service life.
4. The bearing of metallurgical rolling mill is high speed, high precision and impact resistant.
5. High precision, low temperature rise and high reliability of rail transit bearing.
6. Low noise, wear resistance and long service life of cement mechanical bearing.
7. The bearing of metallurgical diaphragm pump has high load, high reliability and long service life.
8. Construction machinery and heavy-duty automobile bearings are of high load and full range.
9. Self lubrication, high strength and high precision of hydraulic machinery joint bearing
In May 2011, Ningxia Baota Petrochemical Co., Ltd. acquired 20% shares of northwest bearing held by Great Wall Asset Management Co., Ltd., becoming the largest shareholder of northwest bearing. Great Wall Asset Management Co., Ltd. still holds 17.78% shares of northwest bearing, becoming the second largest shareholder of our company. After the pagoda became the master of the West axis, it insisted on the West axis people’s governance, put forward and established the development strategy of “big thinking, big hand, great spirit”, “strengthen the main business, expand the scale, and develop the sideline business”, and then put forward the short-term goal of “one year to get rid of difficulties, two years to step up, three years to develop”. Through the unremitting efforts of all employees, the company turned around its losses in 2011, and is moving forward to the goal of “two years to the next level, three years to develop”.
The company has a national enterprise technology center, with strong technical strength, first-class new product research and development and technological innovation capabilities. At present, there are more than 300 professional and technical personnel, including more than 90 senior professional and technical personnel, 8 enjoying the special allowance of the State Council, 4 enjoying the government allowance of Ningxia Hui Autonomous Region, 1 candidate for the national “one million talents project” and 2 postdoctors. The company takes 14 specialized research institutes such as national enterprise technology center, national and local joint engineering laboratory, postdoctoral research workstation, product design institute, technology research institute and Petroleum Machinery Bearing Research Institute as the platform to form a perfect technology and product system, with an average of more than 200 new products developed each year. The oil drilling bearing 30228 / 630q researched and developed has won the National Quality Gold Award. It is at the leading level in domestic product research and development and manufacturing technology in the field of large special bearings. The product has been successfully applied to the launch monitoring devices of Shenzhou V and Shenzhou VI. The company has more than 500 kinds of products to fill the national gap, nearly 1000 of which have reached the international advanced level.
The company practices the quality concept of “customer first, quality first”. It has passed the ISO9001 quality management system, ISO14001 environmental management system, ISO10012 measurement management system, gjb9001b military product quality system and ISO / TS16949 automobile product quality system certification. It is a national first-class measurement unit.

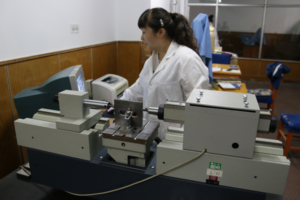

The company has 2500 sets of all kinds of equipment and test instruments, including 425 sets of high, precision and sharp equipment and numerical control equipment. In recent years, the company has made great efforts to strengthen technical transformation, strive to create information-based and intelligent process equipment, so that the quality of the company’s products in the same industry has been greatly improved.
The company has set up distribution outlets in major central cities of the country, formed 16 marketing and service networks covering 31 provinces, cities and autonomous regions of the country, and established good cooperative relations with more than 300 domestic and foreign agents, striving to serve customers more conveniently, quickly and efficiently.
In recent years, the company has planned high-end bearing industrial base in Yinchuan national economic and Technological Development Zone. At present, the company has invested nearly 200 million yuan in the rail transit bearing project. In 2014, the high-end bearing project of 400 million yuan has been launched, and the company’s high-end bearing industrialization base has been initially formed.
https://www.china-bearing-manufacturer.com/wp-content/uploads/2020/01/sy_about_img-1.jpg475800chinabearingadminhttps://www.china-bearing-manufacturer.com/wp-content/uploads/2019/11/CoatMaster-1.pngchinabearingadmin2020-01-21 11:46:202020-01-21 11:53:13Northwest Bearing Co., Ltd-NXZ China bearing manufacturer
Zhejiang Tianma Bearing Group Co., Ltd. is located in the navigation manufacturing town of Huzhou Moganshan High-tech Industrial Development Zone. With a 30-year development history, the company has a registered capital of 1.8 billion yuan and it is a large China bearing manufacturer. The company’s leading products include ten categories of more than 8,000 varieties of bearing products. Products by category are: short cylindrical roller bearings (single and double row, four rows), deep groove ball bearings, tapered roller bearings, spherical roller and spherical ball bearings, angular contact ball bearings (single and double row), thrust Roller and thrust ball bearings, non-standard bearings, etc. According to application fields: aerospace bearings, military bearings, railway freight cars, passenger cars and rail transportation bearings, automotive bearings (new energy), wind power bearings, marine bearings, machine tool bearings, machinery Bearings, metallurgical rolling mill bearings, motor bearings, etc. The new materials independently developed by the product are used for high-end bearing products. Because of the long life and high quality of the products, they have won the favor of users at home and abroad. Among them, short cylindrical roller bearings, railway bearings, wind power bearings, rolling mill bearings, etc. have always enjoyed very High visibility.
As of the end of 2009, the company has a total of 10,968 employees. It has established six professional production bases in five domestic provinces and cities, including Hangzhou, Chengdu, Beijing, Guizhou, and Qiqihar, covering a total area of 1.7 million square meters. Research, development and manufacturing, with sales revenue of 3.262 billion yuan in 2009. The company is not only one of the leading enterprises in China’s bearing industry today, but also the only precision equipment manufacturing enterprise in China that integrates three major industries of materials, bearings and equipment. Since 2007, it has been ranked among the “Top 100 Enterprises in China’s Machinery Industry” Ranks. The company’s bearing and machine tool products are positioned to replace imported high-end markets. The “TMB” bearing produced is a collection of titles such as “China Famous Brand”, “Most Competitive Brand in the Market” and “China Well-known Trademark”, covering more than 4,500 varieties in 10 categories. It is widely used in railway, aviation, shipping, Automobiles, machine tools, motors, mining metallurgy, wind power generation, agriculture, machinery, heavy machinery, engineering machinery, port machinery, and many other fields, including short cylindrical roller bearings, railway bearings, wind power bearings, rolled bearings, and “uniform” The heavy-duty CNC vertical and horizontal lathes and other products have ranked first in the country in terms of domestic market share and become champions of market segments.
The company has a national enterprise technology center, multiple provincial high-tech enterprises, a collection of national post-doctoral research workstations and academician workstations, and has strong technical strength. The company’s own brand “TMB” was once a Chinese famous brand, a well-known trademark in China, and the most competitive brand in the market. Has passed ISO9001, ISO14001, TS16949, laboratory and other quality and environmental management system certification. The company has established a complete sales network and service system. The products sell well all over the country and are exported to developed countries and regions such as Europe and the United States. The company has successively been awarded the title of “Top 100 Enterprises in China’s Machinery Industry”, China’s Advanced Management Enterprise in Bearing Industry, the First Integrity Demonstration Enterprise in Zhejiang Province, Green Enterprise in Zhejiang Province, and AAA-level Contract-honoring Enterprise in Zhejiang Province. The company ranks at the forefront of China’s bearing industry in many aspects such as capital strength, production scale, technical strength and sales performance.
In 2013 Year
In 2013, Deqing Tianma Bearing Co., Ltd. and Deqing Tianma Heavy Industry Machinery Co., Ltd. funded by Tianma Co., Ltd. were merged into Zhejiang Tianma Bearing Co., Ltd. and upgraded to Zhejiang Tianma Bearing Group Co., Ltd. in 2016.
In 2007 Year
In January 2007, the former Guizhou Hongshan Bearing General Plant was acquired and formed into Guizhou Tianma Hongshan Bearing Co., Ltd. In March 2007, Beijing Times Newcomer Bearing Co., Ltd., which mainly produces large rolling mill bearings, was reorganized and renamed as Beijing Tianma Bearing Co., Ltd. Tianma Bearing Group Co., Ltd. was successfully listed in March, and Qizhong CNC Equipment Co., Ltd. was reorganized in December.
In 2002 Year
Tianma Bearing Group Co., Ltd. was established in November 2002. Acquired the former Chengdu Railway Bearing Factory and established it as Chengdu Tianma Railway Bearing Co., Ltd.
In 1999 Year
In 1999, Hangzhou Gongshu Bearing Factory was renamed as Zhejiang Rolling Bearing Factory, and the same year was renamed Zhejiang Rolling Bearing Co., Ltd., with its own brand “TMB”. The company was renamed as Zhejiang Tianma Holdings Group Co., Ltd. in 2002, and renamed as Tianma Holdings Group Co., Ltd. in 2004. It was renamed as Horgos Tianma Venture Capital Group Co., Ltd. in 2016.
In 1992 Year
In 1992, Hangzhou Banshan Shaft Accessory Factory was renamed Hangzhou Gongshu Bearing Factory, and the design, manufacturing and sales of finished bearings began.
In 1987 Year
In 1987, Hangzhou Banshan Bearing Accessory Factory was established to provide parts for the bearing industry.
Intellectual property management
The company has applied for 265 patents and 236 authorized patents, including 26 appearance patents, 45 invention patents and 165 utility model patents.
Quality system management
The company has passed ISO9001, OHSA18001, ISO / TS16949, ISO14001 and other quality and environmental management system certifications.
https://www.china-bearing-manufacturer.com/wp-content/uploads/2020/01/1514710810563845.jpg531800chinabearingadminhttps://www.china-bearing-manufacturer.com/wp-content/uploads/2019/11/CoatMaster-1.pngchinabearingadmin2020-01-19 22:04:522020-01-19 22:04:52The biggest cylindrical roller bearing manufacturer of China-TMB
Founded in 1984, Renren Group Co., Ltd. is a group company with China bearing manufacturing as its leading industry. It also has Renren Electromechanical Trade, a full chain of convenience stores and other industries. There are 137 member companies, more than 20,000 employees, assets of 11.09 billion yuan, sales revenue of 17.13 billion yuan in 2018, and completion of profit and tax of 1.21 billion yuan. Renren Group was named “Top 100 Enterprises in China Machinery Industry”, “Top 500 National Private Enterprises”, “Top Ten Enterprises in National Key Industries”, “The Most Competitive Brand in China’s Bearing Industry” “C & U)” is a well-known trademark in China.
The bearing manufacturing industry is the leading industry of C&U Group. The precision low-noise bearings (Z3, Z4 products) are tested by the National Bearing Supervision and Inspection Center. The precision reserve rate is 100%, and the premium rate is 100%. Z3 The group stability rate is 95% … It is in a leading position in the domestic industry and fills the domestic gap. The “people-group 10 million sets of precision low-noise car generator bearing project” was included in the National Science and Technology Development Plan by the Ministry of Science and Technology, is a national torch plan project, and is also listed as a national key new product. C & U bearings have been awarded the title of “Excellent Bearing” in China for many times. Seven major bearing production bases including Wenzhou, Hangzhou, Wuxi, Shanghai, Nanchong, Wuhu, and Huangshi have been formed. There are now 65 bearing finished product and accessory manufacturing companies, covering more than 30,000 large, medium and small product specifications. Annual production With a capacity of 1.2 billion sets, it is China’s largest bearing company.
C&U mainly rolling bearings as follows:
1.Deep groove ball bearing
2.Angular contact ball bearings
3.Self-aligning ball bearings
4.Cylindrical Roller Bearings
5.Tapered Roller Bearings
6.Spherical roller bearing
7.Thrust ball bearing
8.Thrust spherical roller bearings
9.Outer spherical bearing
10.Needle roller bearing
11.Water pump bearing
12.Constant velocity universal joint and its assembly for automobile
13.Linear Bearings
14.Turntable bearings
15.Dental drill bearings
C&U also supply bearings for customers applications as follows:
Automotive bearings
Household appliances bearings
Motor / power tools bearings
Motorcycle bearings
Dental drill bearings
Wind power bearings
Metallurgical bearings
High Precision bearings
Automotive bearings
At present, automobiles are developing in terms of light weight, compact structure, solid, high power, good acceleration performance, comfort, durability and high reliability. In addition, due to the advancement of electronic control technology, automobiles have also developed towards practical performance such as low energy consumption, good driving performance, and convenience. Therefore, rolling bearings, as important components for automobile support, must adapt to this development trend.
The C&U Group closely combines these characteristics and is committed to the research and development of automotive bearings, and has developed hub bearing units with inherited ABS pulse generators, long-life gearbox bearings, high-temperature and high-speed electromagnetic clutch bearings, and high-speed sealing performance. Rotary sealed ball bearings, automotive water pump bearings, etc.
Automobile engine
Engine ball bearing
Automotive water pump shaft connection bearing
Needle bearing for engine rocker
Automotive generator bearings
Automotive air-cooled fan bearings 608, 629
Automotive tension wheel bearings
Automotive clutch bearings
Silicone fan bearing
Automotive air conditioning compressor bearings
Car suspension system:
— Tapered bearing for truck axle and differential
— Wheel Bearing
First generation hub bearing
Second generation hub bearing
Third generation hub bearing
— Car gearbox
— Tapered roller bearings for automotive transmissions
— Cylindrical roller bearings for automotive gearboxes
— Automotive transmission ball bearings
— Needle bearings for automotive gearboxes
Household appliances bearings
With the continuous improvement of people’s living standards, people have put forward higher requirements for the performance of household appliances. Renren Group has always taken customer satisfaction as its responsibility, and has successfully developed ball bearings with low noise, long life, and high rotation accuracy.
In addition, the high-end household appliance bearings produced by Renren Group can meet the requirements of low noise. It has long-term quietness, long-distance transport resistance, and is suitable for supporting household appliances (air conditioners, washing machines, refrigerators, dryers, dishwashers, and small appliances). , Ceiling fan, vacuum cleaner, exhaust fan, etc.).
Our goal is to provide quality products to society. After years of exploration and improvement, human-based bearings have successfully replaced imports and become excellent suppliers of air conditioners, refrigerators, washing machines, range hoods, and vacuum cleaners for Midea, Haier, LG and other companies.
Air conditioner silent bearing
2.Vacuum cleaner high speed bearing
Industrial sewing machine bearings
Bearings for washing machines
Motor / power tool bearings
After years of unremitting efforts, the quality of “C & U” motor bearings has been greatly improved and has been favored by major motor manufacturers.
With the continuous improvement of the quality of motor bearings, the high sealing, low noise and long life performance of motor bearings are more effectively guaranteed. At the same time, due to the improvement of the material and production equipment of motor bearings, the practical reliability of bearings is effectively guaranteed The quality level of the motor series bearings has reached the international advanced level, and it can reliably replace imports in various applications with high reliability requirements. The newly launched “TD” series products are exactly to meet these high-end market demands.
Deep groove ball bearings for motors
Motor bearing
Bearings for power tools
Motorcycle bearings
“C & U” bearings are widely used in motorcycles and four-wheeled mopeds. Most of the motorcycle’s mechanical parts are exposed, and withstand the severe test of high-speed rotation in harsh driving environments. Four-wheeled light vehicles travel on various terrains and different speeds, and require good durability in mud, sand and dust. In order to meet this market requirement, Renren Group provides a variety of bearings with high durability and high sealing performance. In addition, in order to improve the assembly performance of products, the Group has conducted in-depth exploration in the research and development of module products.
crankshaft bearing of motorcycle engine
General Motorcycle Bearings
Dental drill bearings
C & U dental drill bearings are special bearings for dental dentists. The inner and outer rings of the bearing are made of special alloy stainless steel; the ball is made of refined stainless steel or super hard ceramic material, which has good wear resistance; the cage is made of polyimide material with high strength, low wear resistance, and self-lubrication.
High-speed dental drill ball bearings for high-speed dental drill handpieces are interchangeable with bearings in dental drill handpieces produced in Japan, Germany, and the United Kingdom.
— Precision grade: ABEC7 (P4);
— Rotating speed: 350,000-450,000 rpm under the pressure of 200-250Kpa;
— Working life: more than 6 months;
— Performance: ultra-low vibration, ultra-low noise; corrosion resistance, no rust.
Wind power bearings
Wind, this ancient and clean energy, is becoming one of the fastest growing energy sources in the world. In the booming situation of the global wind energy industry, Hangzhou Bearing Group Co., Ltd. has become a slewing bearing industrialization manufacturing company specializing in the production, design, development and manufacture of slewing bearing. The company is based on the machinery industry standards of the People’s Republic of China JB / T2300-1999 and JB / T10705-2007 and construction machinery JG / T66-68-1999 slewing bearing series. It uses extensive domestic and foreign advanced technology, standards, Process method, producing various forms and series of slewing bearing products, widely used in engineering, construction, mining, metallurgy, ships, ports, petroleum, chemical, light industry, environmental protection, aviation, wind power generation, instrumentation and other industries, Products are exported to Germany, South Korea, the United States, Japan and Southeast Asia.
Textile machinery bearings
Textile machinery bearings are used in harsh environments and require long life, heavy load, high speed, low noise, and smooth operation. The textile machinery bearings developed by Renren Group have outstanding performance and have been matched to many domestic textile machinery factories. C & U’s special-purpose bearings for air-jet spinning machines can rotate smoothly at high speeds. They have the characteristics of small amplitude, low noise, long service life, and convenient maintenance. The upper roller bearing has good sealing performance, flexible rotation, low friction, stable operation and low power consumption after pressurization. The lower roller bearing has the characteristics of good self-aligning effect, superior dust-proof performance, strong bearing capacity, stable operation and long service life.
Spindle bearings of cotton spinning machine series
Spherical spherical ball bearings
Chemical fiber machine series high-speed winding head bearings
Lower roller bearing of cotton spinning machine series
Special bearings for air spinning machines
Special bearings for chemical fiber texturing machine series
Textile Machinery Tensioner
Special bearing for weaving machine series
Inch and non-standard bearings
Metallurgical bearings
Hangzhou Renben Metallurgical Bearing Co., Ltd. is a holding subsidiary of Hangzhou Bearing Group Co., Ltd., a subsidiary of the Group. It was reorganized from the former Hangzhou Bearing Factory Metallurgical Bearing Branch. The history of the company’s production of metallurgical bearings can be traced back to the 1980’s. It is a designated manufacturer of the former National Metallurgical Ministry Parts Supply Service Center.
The company has strong technology and rich manufacturing experience, modern management system, advanced management technology, complete bearing processing equipment, and perfect measurement and detection methods. The company produces more than 100 kinds of metallurgical rolling mill bearings with three accuracy levels (P0, P6, P5) throughout the year. It provides steel manufacturers with four-row cylindrical roller bearings, deep groove ball bearings, four-point contact ball bearings, double Angular contact ball bearings and slewing bearings, split cylindrical roller bearings, etc. Products are widely used in metallurgy, rolling mills, mining, petroleum, heavy machinery, cement, papermaking, sugar extraction, engineering machinery and other industries. The company proactively adopts new materials and new processes to develop various non-standard bearings required by users for trial production, such as rolling mill roller bearings, rolled steel bearings and other products; metallurgical rolling mill bearings produced by bainite heat treatment process are resistant to fatigue and impact And long life. Its stable product quality has won unanimous praise from customers.
With the rapid development of numerical control technology, “composite, high-speed, intelligent, precise, and environmentally friendly” has become the main trend in the technology development of today’s equipment manufacturing industry. Among them, high-speed processing can effectively improve the processing efficiency of the machine tool and shorten the processing cycle of the workpiece. This requires the machine tool spindle and its related components to adapt to the needs of high-speed processing. At present, CNC machine tool spindle bearings are basically limited to four types of structure: angular contact ball bearings, cylindrical roller bearings, two-way thrust angular contact ball bearings and tapered roller bearings.
Hangzhou Renben Precision Bearing Co., Ltd. is a key investment project of Renben Group. The company specializes in R & D and production of high-precision angular contact ball bearings and cylindrical roller bearings. Its products are positioned as “the first in the country and world-class”. At present, the company has developed more than 100 specifications of P5 grade and above precision bearings from the inner diameter of 10㎜ to the outer diameter of 200㎜. The main varieties are C (contact angle 15 °), AC (contact angle 25 °) and B (contact angle). 40 °) and other series. There are three kinds of cage materials commonly used in the products: tape cage (T), copper cage (M) and nylon cage (TN1).
Products are widely used in precision machine tool spindles, precision instrument spindles, high-speed motors, traction machines, industrial pumps, screw air compressors, beach motorcycle wheels, reducers, automotive engines, textile machinery, petroleum machinery, woodworking machinery, ceramic machinery, Engraving machinery and other industries.
1. Special bearings for machine tool spindle series
2. Special bearings for industrial pump series
3. Special bearings for high-speed spindle series
4. Super-precision angular contact ball bearings
5. P4 level angular contact ball bearings
6. NN series double row cylindrical roller bearings
7. B series angular contact ball bearings
Double-row spherical roller bearings produced by Hangzhou Renben Bearing Co., Ltd. The outer diameter range of the dimension section is D52-260mm. The main varieties are CA, CAK, CA / W33, CAK / W33, CC, CA-2RS, E / W33, E-2RS, E and other nine series.
The company has recently invested in a large model production line. After it is in place, the bearing outer diameter dimension range will be expanded to D52-540mm, and the model range is 21304–22260. Divided into common products and TD products according to production process, the main application fields are food machinery, textile machinery, washing machinery, construction machinery, industrial reduction machinery, woodworking machinery, papermaking machinery, mining machinery, coal mining machinery, lifting machinery, engineering machinery, Large-scale transportation equipment, chemical machinery, petroleum machinery, metallurgical industry, large steel mills, cement plants, energy industries, etc. The target customer group for product positioning is mid-to-high-end customers, replacing imports.
1.Special bearings for Elevating industry
2.Special bearings for the grain machinery industry
Wanxiang Group was founded in 1969. It started from Lu Guanqiu’s establishment of an agricultural machinery repair plant on the bank of the Qiantang River with 4,000 yuan. At an average annual rate of 25.89%, it has developed into a modern multinational with revenues exceeding 100 billion and profits exceeding 10 billion. Enterprise Group. Wanxiang is one of the 120 pilot enterprise groups of the State Council and the only auto parts company among the 520 key enterprises of the country. It is one of the 16 companies that have entered the international competitiveness of the world famous brand. “. Most of the universal bearings are automotive bearings, Tapered roller bearing,Universal joint bearing, which has the advantage of protecting the performance of the automobile during use while matching the environment and life of the automobile bearing. The main business of the group is the manufacture of auto parts, and its leading products include 12 series of 5 systems including automotive transmission systems, braking systems, steering systems, suspension systems, and emissions systems.
Wanxiang is mainly engaged in the manufacture and sales of auto parts, and is one of the representative enterprises of auto parts manufacturing in China. Wanxiang has established a 6-square-kilometer manufacturing base in China, and has established stable cooperative relations with FAW, SAIC, SAIC, GAC, etc., and its leading product market share is more than 65%. Overseas, it has nearly 30 companies, more than 40 factories in 10 countries including the United States, Britain, Germany and more than 16,000 overseas employees. It is a supporting partner of GM, Volkswagen, Ford, Chrysler and other major international auto manufacturers, leading the market share of products. The rate is 12%.
In 1999, Wanxiang began to deploy clean energy and vigorously developed industries such as batteries, electric vehicles, natural gas power generation, and wind power generation, with a cumulative investment of billions of yuan. In recent years, Wanxiang has cooperated with a number of American clean energy companies with advanced international technology, and cooperated with SAIC to produce new energy buses. Karma Automobile has reached an important partnership with BMW. Now, Wanxiang concentrates on the advantages accumulated in 49 years, and plans to invest more than 200 billion yuan to start the construction of “Wanxiang Innovation and Energy Concentration City”. The goal is to build an international, high-tech clean energy company.
In addition, Wanxiang actively responded to the call for nurturing agriculture and engaged in research and development of seed industry, offshore fishing and deep processing of marine products. There are 7 companies, including 3 listed companies, which directly drive more than 400,000 farmers to become rich.
https://www.china-bearing-manufacturer.com/wp-content/uploads/2020/01/14745360815386eyu8q.jpg220350chinabearingadminhttps://www.china-bearing-manufacturer.com/wp-content/uploads/2019/11/CoatMaster-1.pngchinabearingadmin2020-01-16 12:00:472020-01-16 12:00:47Universal joint bearing China manufacturer Top 1
Luoyang LYC Bearing Co., Ltd. （China Bearing manufacturer) was formerly known as the 156 key construction projects during the “One Five-Year Plan” period of the country. It has a nationally recognized technology center, core technologies such as aero engine bearings, rail vehicle bearings, and special equipment special bearings. It is the birthplace of bearings with large diameters and high precision in China. The large-scale rolling mill bearing production unit is also a domestic production base with a wide range of bearing products, wide application coverage, and a full range of products, maintaining a number of records in the Chinese bearing industry.
As a professional China bearing manufacturer, after more than 60 years of development, LYC has a nationally recognized technical center. It can design and manufacture nine types of bearings with various accuracy levels of more than 10,000 and bearing-related special equipment according to user needs. The core technologies of bearings, bearings for rail transit vehicles, and bearings for major equipment are widely used in the fields of national defense, aerospace, wind power, rail transportation, automobiles and motorcycles, mining metallurgy, engineering machinery, machine tools and motors. The birthplace of large-diameter, high-precision bearings is also a domestic production base with a wide range of bearing product sizes, wide application coverage, and a full range of products, maintaining a number of records in the Chinese bearing industry. In particular, LYC successfully provided supporting bearings for the “Shenzhou” series and the “Chang’e” spacecraft, demonstrating strong technical research and development capabilities.
In the past five years, LYC Company has maintained an average growth of more than 30% in its main business income by renewing its philosophy, system mechanism and technological innovation. Its leading products have taken the lead in the domestic market. It has been named the leader in the bearing industry for five consecutive years. The company has been rated as “China’s Most Competitive Bearing Brand in the Market” by the Ministry of Commerce and recognized as a well-known trademark in China by the State Administration for Industry and Commerce. In the selection of 575 nationally recognized enterprise technology centers, the LYC technology center has jumped from the original 301st to 84th, ranking second in the bearing industry, and its core competitiveness has been continuously enhanced. LYC has sales representative offices in more than 30 cities in China, and has established a sound sales service network in Hong Kong, China, San Francisco, Brazil, São Paulo, Italy, Rome, Taiwan, and other places. Its products are exported to more than 70 countries and regions.
On July 24, 1957, the first batch of 2191 sets of automotive gearbox bearings was born.
On March 15, 1959, China’s outer diameter 1.03m, inner diameter 0.65m, net weight 1769kg, and complex structure rolling mill special 777/650 four-row tapered roller extra large bearings were born in LYC.
At the end of 1965, LYCdeveloped a rolling bearing with a special structure, a gear with a jacket and an outer diameter of 2.066m.
In the 1960s, LYC successively completed the development of aviation-specific bearings, the development of supporting bearings for atomic energy industrial equipment, and the development of supporting bearings for rockets. For a project of a national key construction project, two types of bearings with a diameter of 700 mm for vertical roll mills were produced. This guarantees the urgent needs of the country.
In November 1981, a set of oversized thrust radial cross roller bearings with an outer diameter of 5.08 meters was successfully trial-produced in LYC.
On September 27, 1982, B3-706 single-row tapered roller bearings and B3-707 double-row tapered roller bearings produced by LYCwere awarded the National Gold Product Quality Award.
From 1983 to 1987, F7512S, 9E32209H, F230HU, D1176720Q1T1, and D176119Q1T2 bearings developed and manufactured by LYCwere awarded the National Silver Award for Quality Products.
In 1985, LYC developed and completed D3-826 extra large bearings, as well as defense supporting products such as harmonic bearings, navigator bearings, and theodolites.
On January 15, 1988, the LYC trial-produced a 3-942G2 three-row combined turntable bearing with an outer diameter of 5m and a net weight of 14,200kg.
On January 28, 1994, a set of oversized turntable bearings with an outer diameter of 5.44 meters and a weight of 11.752 tons was born in LYC.
On December 18, 1995, a set of oversized turntable bearings with an outer diameter of 5m, an inner diameter of 4.068m, and a total weight of 14,131kg was born in LYC, which broke the record of bearing weight in China.
In 1996, LYCdeveloped and trial-produced the bearings of quasi-high speed railway passenger cars with international advanced level.
13. In March 1998, LYC completed the development of a series of bearings for the Xiaolangdi water conservancy project, creating a precedent for the application of rolling bearings in China.
14. On September 24, 1999, the domestic large-scale rolling mill bearing with sealed structure was born in LYC.
15. In December 1999, LYC independently researched and developed the 2788/1722 wind turbine yaw bearing to replace SKF imported bearings and successfully passed the inspection of the State Science and Technology Commission.
16. On December 28, 1999, the 6397 / 2800GK2 large turntable bearing with a higher hardness in China to replace the imported was born in LYC.
17. On April 22, 2000, the first three series of 50 sets of radial thrust combined bearings were successfully developed in LYC.
18. In July 2000, 82 types of LYC military bearings were reviewed by leaders of the country such as Jiang Zemin, Zhu Rongji, and Hu Jintao at the Beijing Chinese Revolutionary Military Museum.
19. On February 23, 2001, extra large stainless steel bearings were born in LYC.
20. On May 10, 2001, the LYCdeveloped and produced a turntable bearing weighing up to 16870kg.
21. In October 2002, the TK-N312 high-speed wire finishing mill bearing developed by LYC was awarded the national key new product
22. In 2002, LYC’s new product development reached a new level. 340 kinds of pure new products were developed, and the output value exceeded 100 million yuan. Among them, the completed sealed rolling mill bearings, wind turbine supporting bearings, CT machine bearings, special engine bearings, etc. form the Group’s advantageous product group.
23. In July 2003, LYC developed a cross cylindrical roller bearing with an outer diameter of 110mm and an inner diameter of 70mm.
24. LYChas successfully provided series bearings for the “Shenzhou” spacecraft for 7 consecutive times. In October 2003, the fifth time the “Shenzhou” manned spacecraft traveled to space for the fifth time, it made outstanding contributions to China’s aerospace industry and was commended by the state.
25. On June 28, 2004, the LYCshaft produced an oversized bearing with a diameter of 5.492m.
26. In January 2005, LYC Company overcomes the problem of high-speed precision ceramic ball bearings and manufactured two batches of high-quality bearings that meet the requirements of C-class accuracy. In view of product characteristics, LYCproposed new design concepts, using new technologies, new materials, and new processes. At the same time, according to the special requirements of the product, the ceramic ball structure was used in the process design, and the cage material was improved. Finally, the successful development of the product was guaranteed.
27. In October 2005, the “Shenzhou VI” was successfully launched, and all employees of LYC Company, proud of supporting bearings for the Shenzhou series spacecraft, were proud of this. On October 26, China Electronics Technology Group specially sent a congratulatory letter to thank LYCfor the successful launch of the Shenzhou-6 manned spacecraft and the special contribution made by China’s space industry.
28. In February 2006, samples of heavy-duty truck bearings trial-produced by LYC in accordance with SKF standards were successfully rolled off the line and delivered to the Ministry of Railways for bench tests.
29. In August 2006, an Asian record for the bearing industry was born in LYC. 8 sets of large-scale spherical bearings in Asia produced by a large bearing factory for a user were successfully rolled off the line and delivered to the user.
30. On November 25, 2006, the first National Large and Medium-sized Industrial Enterprise “Top Ten Independent Innovation Capability Industry” information conference held by the National Bureau of Statistics was held in the Great Hall of the People in Beijing. LYC Corporation was listed among the national bearings, gears, transmissions and drive components. Manufacturing “Top Ten Independent Innovation Capability Industries”.
31. In July 2007, the “Rolling Bearing Wind Turbine Bearing” standard drafted by LYC was approved by the National Rolling Bearing Standard Technical Committee, which broke the bottleneck restricting the development of the domestic wind power industry in one fell swoop, and was enforced nationwide on September 1, 2007.
32. In August 2007, the domestic 2.0 MW wind power bearing was successfully rolled off the line at LYC, and passed the site acceptance by users.
33. In 2007, LYC’s scientific and technological research project “Development of Earth Pressure Balance Shield Main Bearings” was awarded the National “863” Program “Key Technologies for Full-Section Roadheader” project, and was supported by the national special scientific research funding. This is the first time that the company’s scientific and technological research subject has been shortlisted in the national “863” plan, which fully demonstrates that the development of the LYC brand shield bearing has taken the lead in the country. It is of great significance to further enhance the company’s independent innovation capability and enhance its core competitiveness.
34. The 2007 Henan Provincial Science and Technology Progress Awards selection was announced. The scientific and technological achievements independently researched and developed by LYC Company, “Development of Double Row Four Point Contact Ball Contact Ball Ball Yaw Bearings for MW Class Wind Turbine” won the third prize. This project received special funding from the provincial government. reward.
35. On October 24, 2007, “Chang’e-1” was successfully lifted off. LYC again successfully completed the world-renowned project development supporting task of “Chang’e-1” with the quality of “trustworthy” products. Engineering contributed.
https://www.china-bearing-manufacturer.com/wp-content/uploads/2020/01/China-Bearing-Manufacturer-LYC.png500700chinabearingadminhttps://www.china-bearing-manufacturer.com/wp-content/uploads/2019/11/CoatMaster-1.pngchinabearingadmin2020-01-10 12:38:292020-01-10 12:38:29LYC-TOP3 China Bearing Manufacturer
