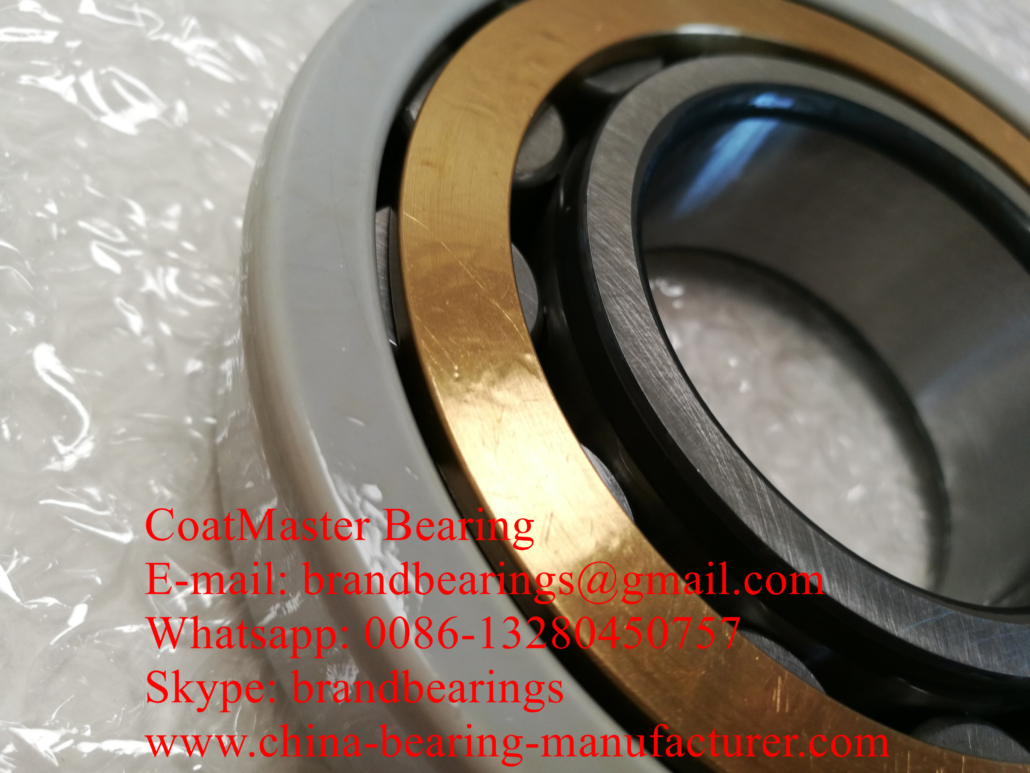

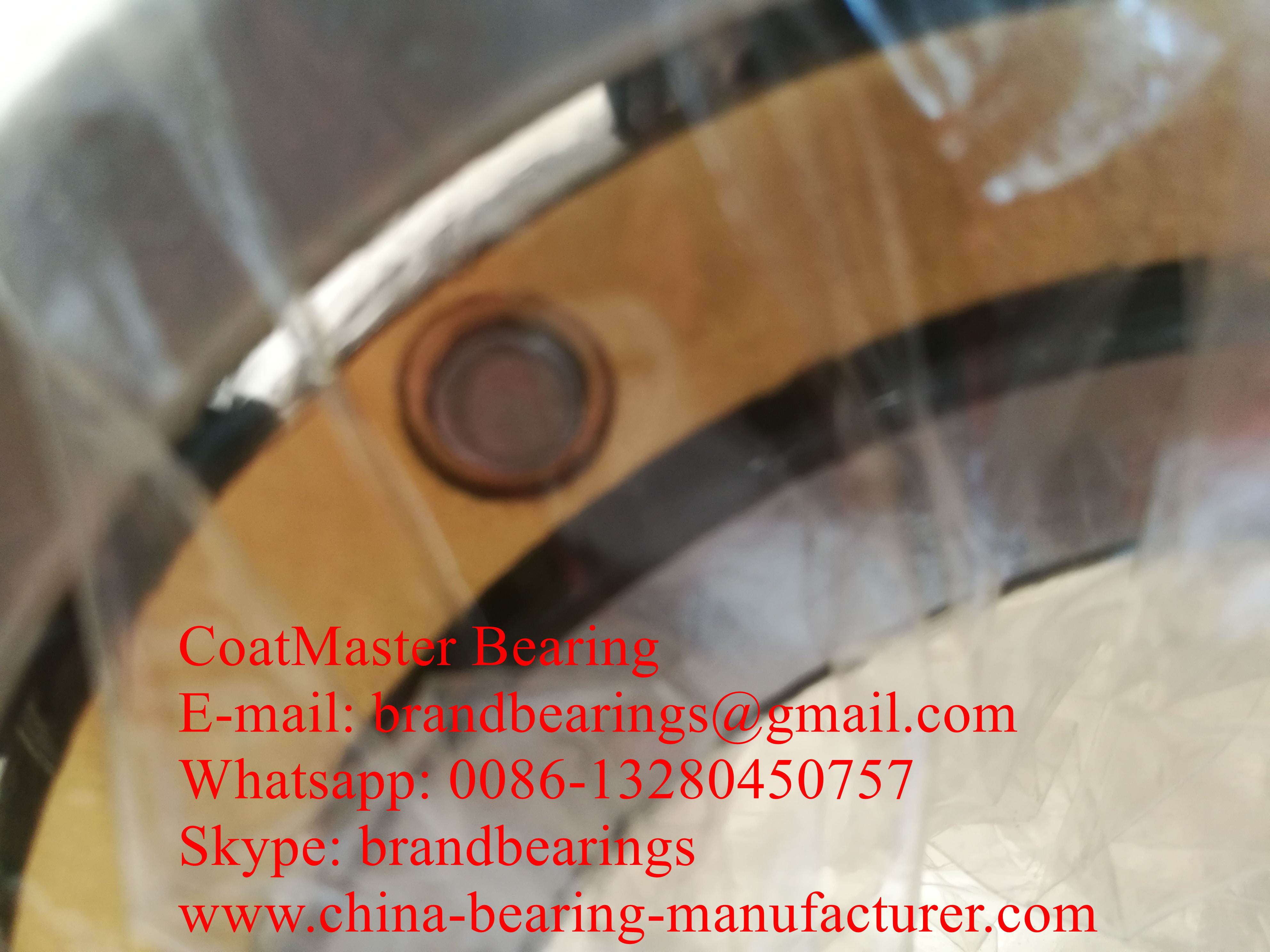

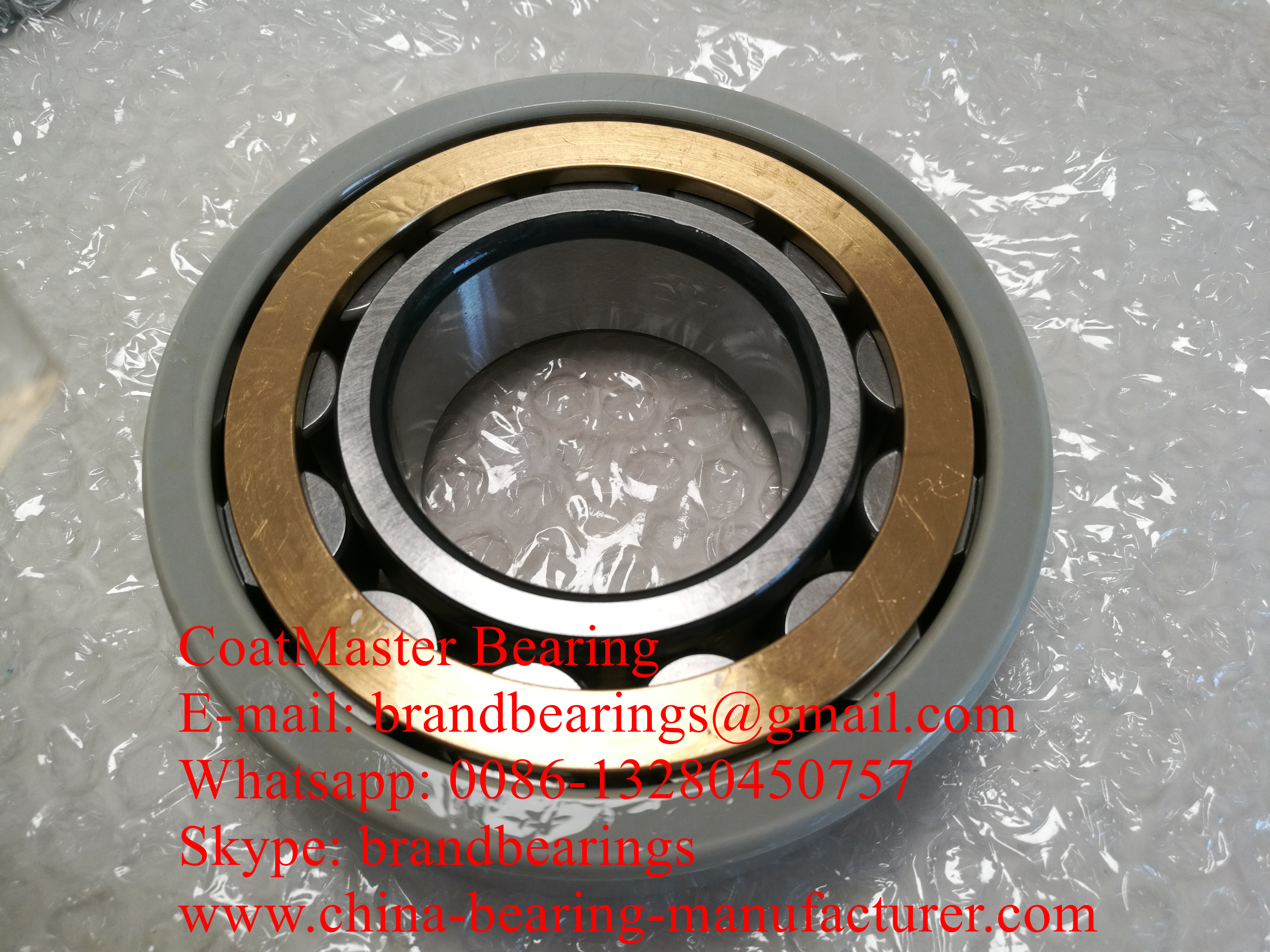

6216 MP65HS0VL0241 Brass cage Electrically Insulated Bearings P6 grade
Detailed Product Description
| Place of Origin: | China |
| Brand Name: | CoatMaster |
| Certification: | ISO9001 |
| Model Number: | 6216 M/P65HS0VL0241 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
| Price: | negotiate |
| Packaging Details: | Single box and then put in Carton or Wooden Case |
| Delivery Time: | 5 days after confirmed |
| Payment Terms: | T/T, L/C, Western Union, Paypal |
| Supply Ability: | 500 Pcs/Month |
Detailed Product Description
| Designation: | 6216 M/P65HS0VL0241 | Coating: | Aluminium Oxide Coating |
| Electrical Resistance: | Voltages Up To 3000 V DC | Cage: | Brass |
| Grade: | P65H | Dimension: | 80×140×26 mm |
| Weight: | 1.3 kg | Temperature: | 150 degree |
Electric Insulated Deep Groove Ball Bearing 6216 M/P65HS0VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.
Electric Insulated Deep Groove Ball Bearing 6216 M/P65HS0VL0241 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel 6216 M/C4 Deep Groove Ball Bearing.
Principle bearing types for traction motor applications
- cylindrical roller bearings
- electrically insulated cylindrical roller bearings
- electrically insulated deep groove ball bearings
- hybrid cylindrical roller bearings with ceramic rollers
- hybrid deep groove ball bearings with ceramic balls
- traction motor bearing units based on cylindrical roller bearings and deep groove ball bearings
- Sensorised traction motor bearing unit
- Regreasable traction motor bearing unit

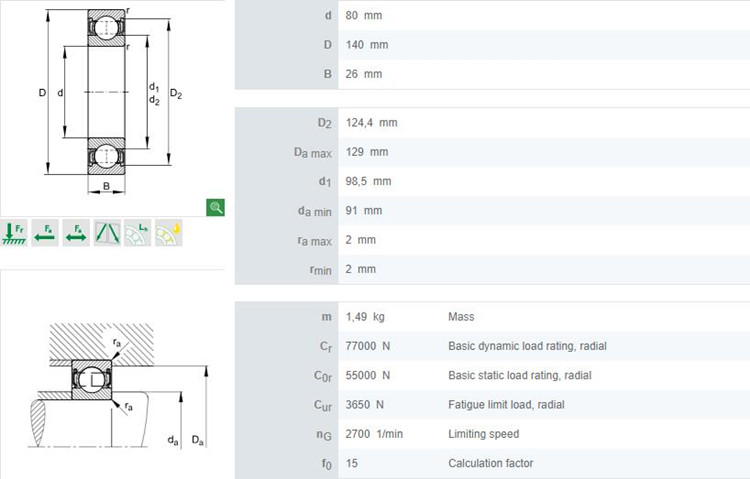

Electrically insulated Rolling Bearings 6216 M/P65HS0VL0241
Principal dimensions 80×140×26mm
Weight 1.7 kg
Basic dynamic load rating-C 72.8kN
Basic static load rating-Co 55kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 6000 r/min
Electrically Insulated Rolling Bearing as a Preventive Measure
As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.
As the locomotive and EMU powertrain system cites inverter control motors, Demand for traction motor bearings rises significantly, In most current applications, harmful high-frequency stray currents are inevitably present. Electrically Insulated Bearing with electrically insulating coating can solve this problem
CoatMaster Bearing Services can help manufacturers and users alike identify ways to optimize transmission performance and reliability. Using a system approach, CoatMaster services 6216 M/P65HS0VL0241 Insolated Bearings can help you exploit your gear unit’s full potential and drive performance and reliability in several ways.
Increase torque
Downsize designs
Double service life
Aim for 100% operational reliability
Improve energy efficiency
A wide range of conditions and requirements
The growing demands of modern farming
XRB is the China bearing exporter & supplier, it can supply 6216 M/P65HS0VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6216-M-J20AA-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
