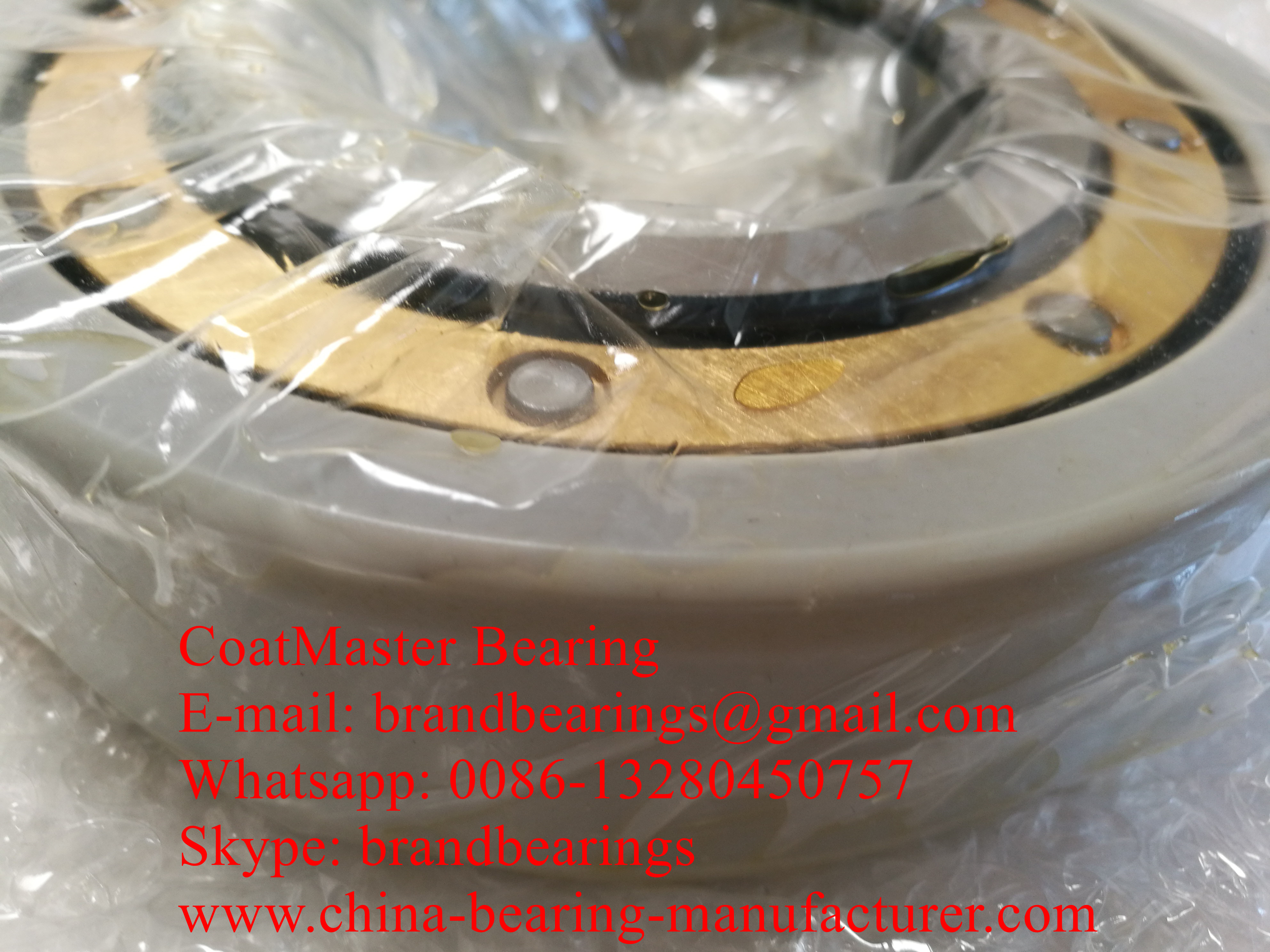

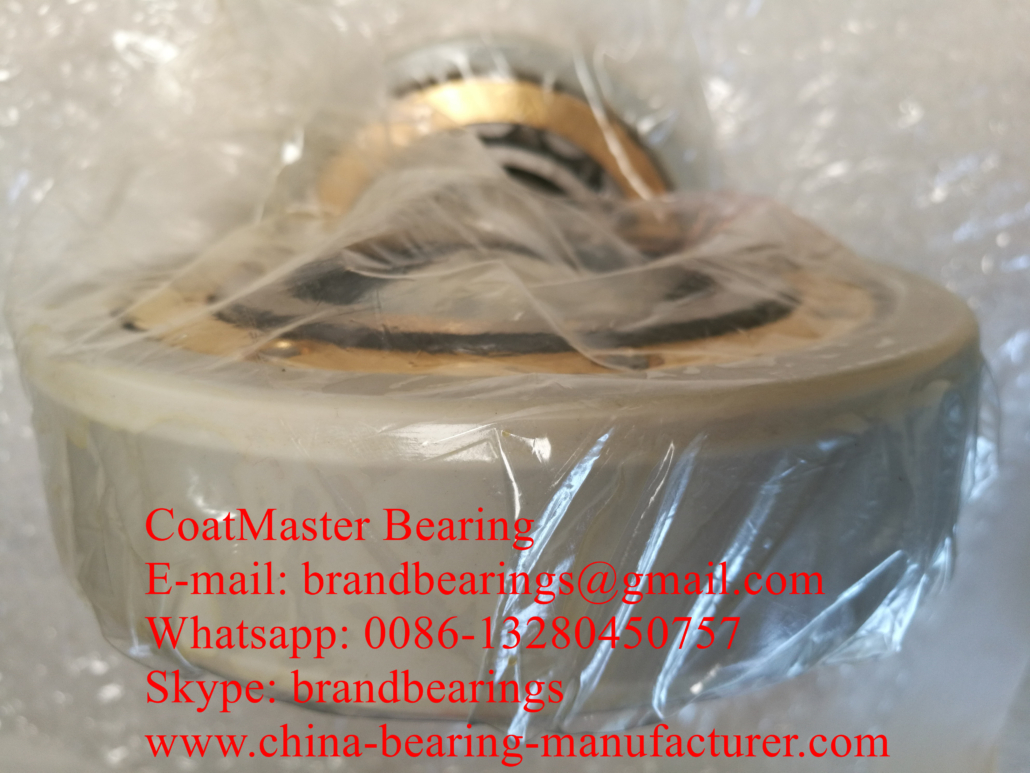

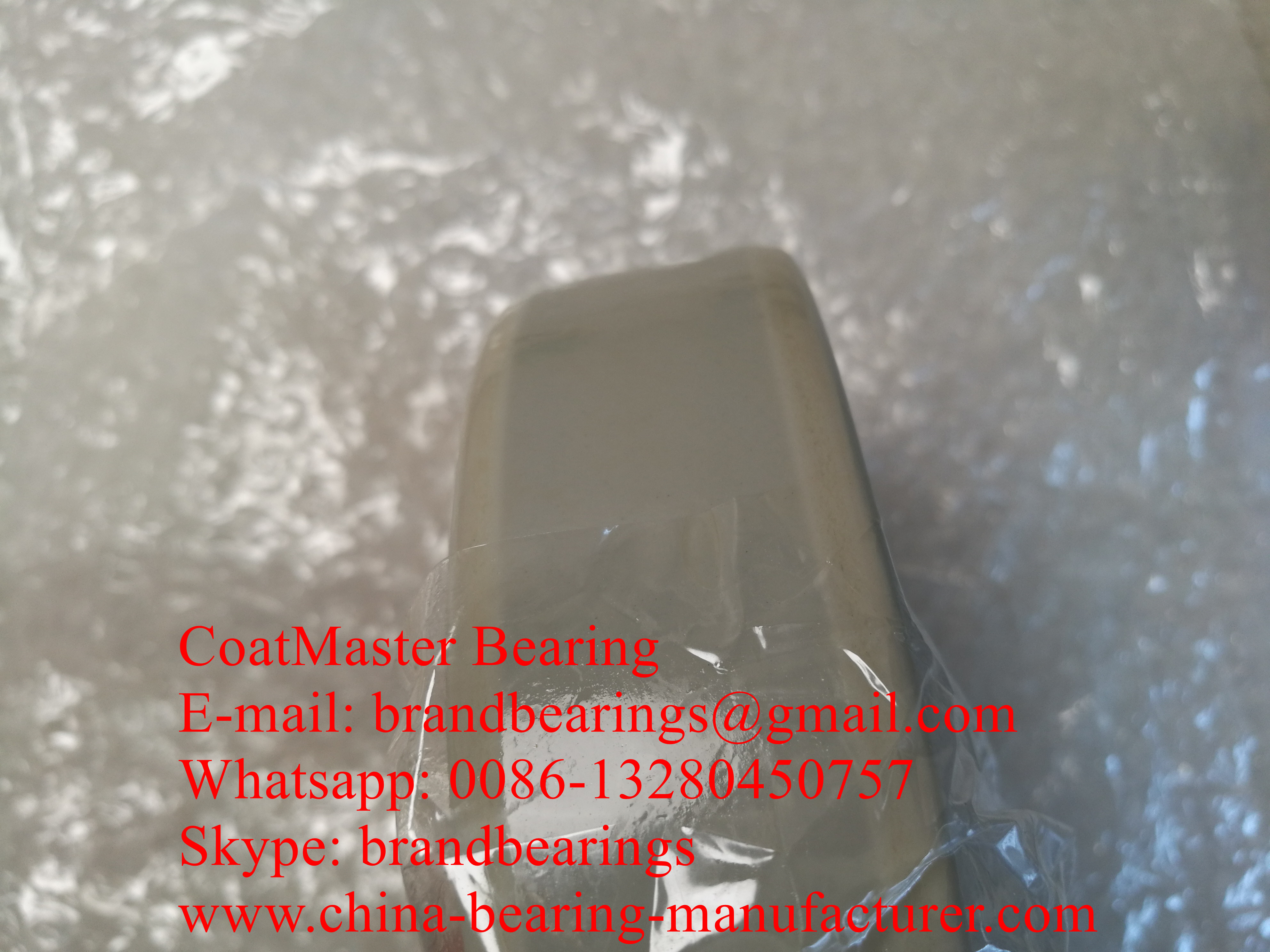

BB1 Series Electrically Insulated BB1-7361 A Deep Groove Ball Bearing 80mm bore for Traction motor
Detailed Product Description
| Place of Origin: | China |
| Brand Name: | CoatMaster |
| Certification: | ISO9001 |
| Model Number: | BB1-7361 A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
| Price: | negotiate |
| Packaging Details: | Single box and then put in Carton or Wooden Case |
| Delivery Time: | 5 days after confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 500 Pcs/Month |
Detailed Product Description
| Designation: | BB1-7361 A | Coating: | Aluminium Oxide Coating |
| Electrical Resistance: | Voltages Up To 3000 V DC | Cage: | Brass |
| Cleance: | C4 | Dimension: | 80×125×22 mm |
| Weight: | 1.1 kg | Application: | Electric Traction Motors |
Electric Insulated Deep Groove Ball Bearing BB1-7361 A provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.
Electric Insulated Deep Groove Ball Bearing BB1-7361 A consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel Insulated Deep Groove Ball Bearing.
Electrically insulated Rolling Bearings BB1-7361 A
Principal dimensions 80×125×22mm
Weight 1.1 kg
Basic dynamic load rating-C 49.4kN
Basic static load rating-Co 40kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 9500 r/min
The Electrically Insulated Bearing adopts the special spraying process, spraying the high quality coating on the outer surface of the bearing, Strong adhesion between film and substrate, Good insulation performance, avoiding the electric corrosion effect of the induced current on the bearing, Prevent current from damage for grease, rolling elements and raceways, Improve the service life of bearings, The process is constantly being improved. Among Electrically Insulated Bearing, there is a 100 μm thick coating on the outer or inner ring surface that can withstand voltages up to 1000 V DC. Special spraying process can form a layer with uniform thickness and strong adhesion, After further processing, it can be protected from moisture and humidity.
XRB is the China bearing manufacturer & exporter & supplier, it can supply BB1-7361 A bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG Insulated rolling Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
