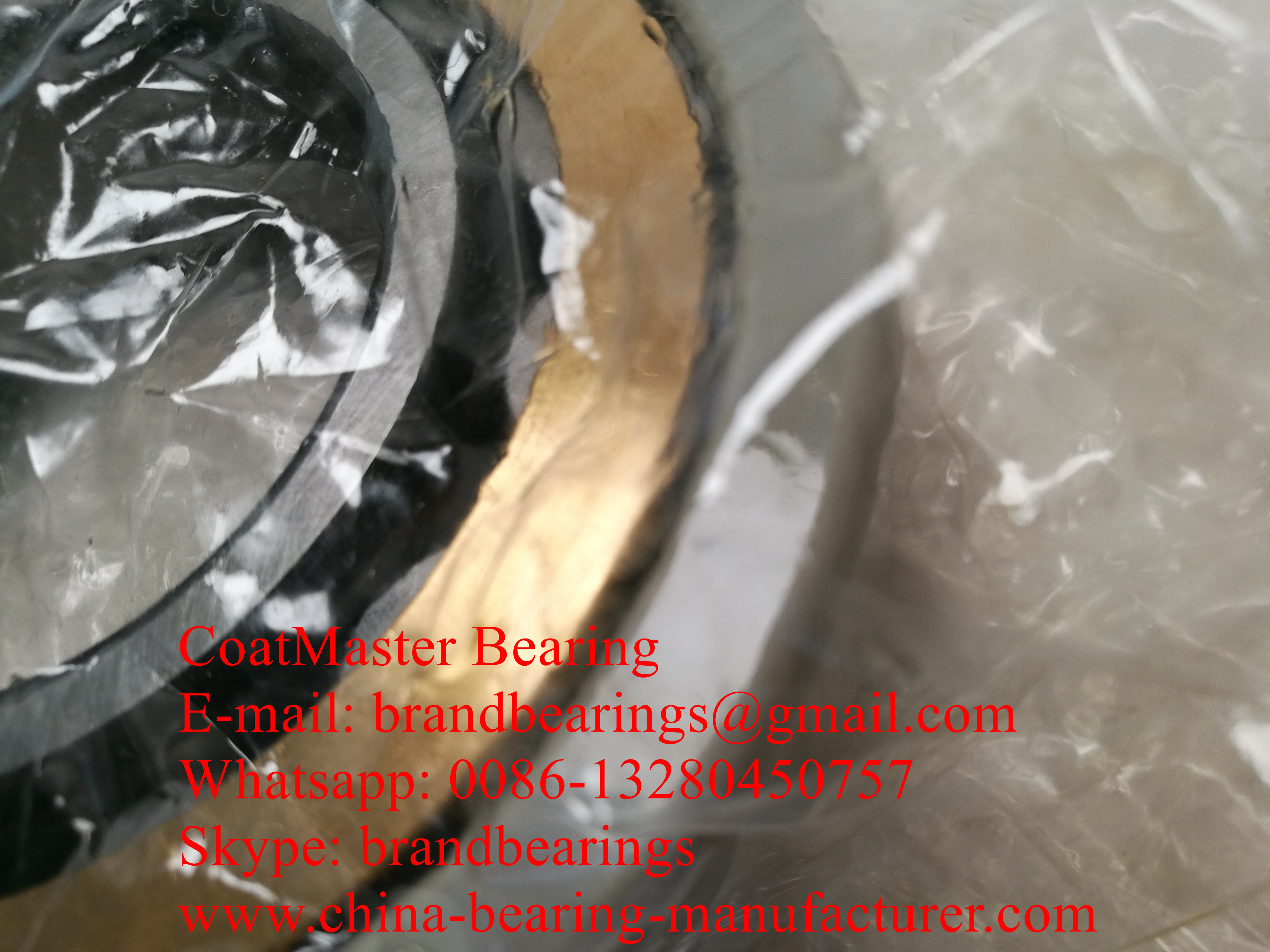

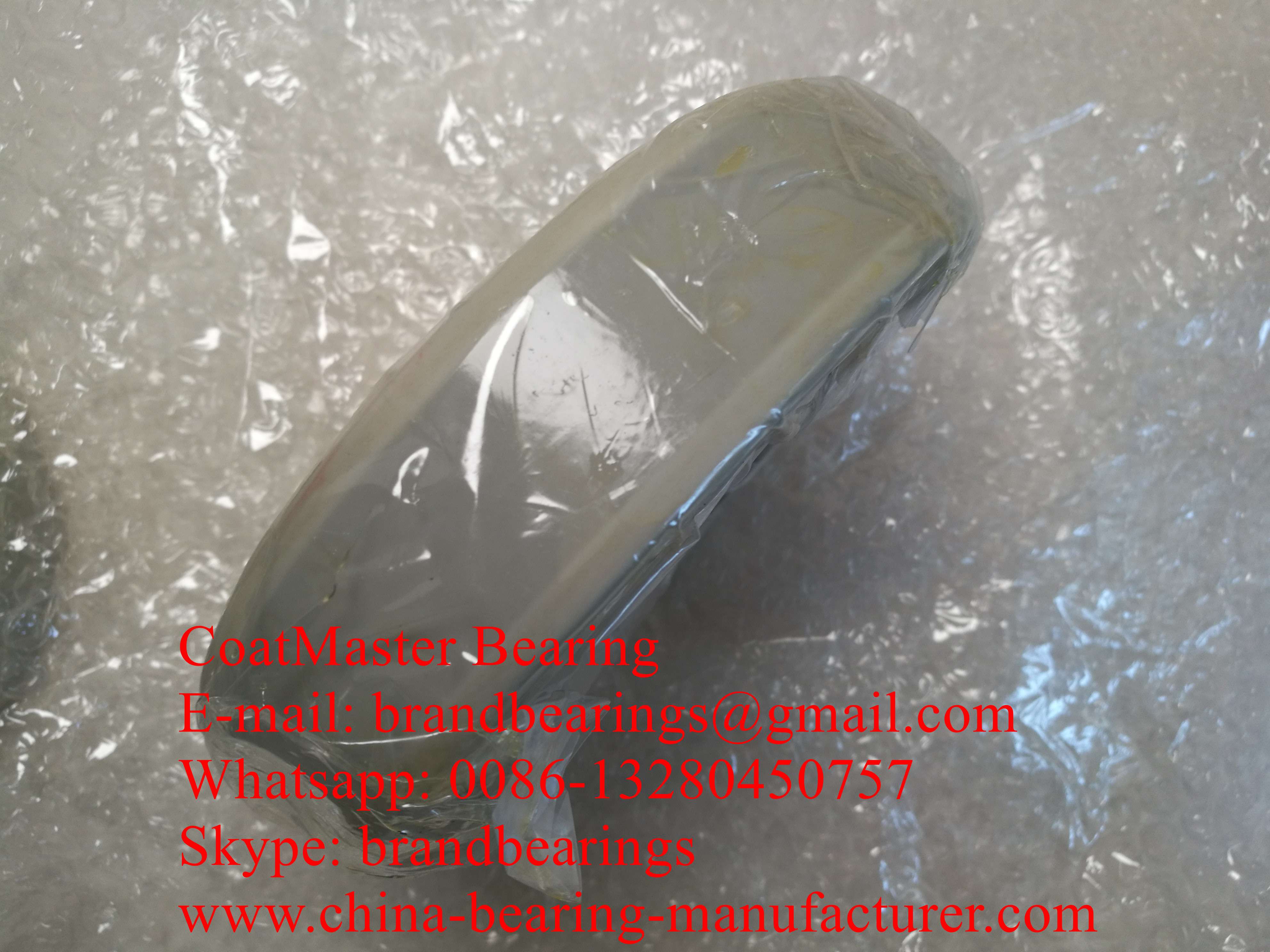

Brass Cage Insulated Deep Groove Ball Bearing 6215 M/C4VL0241 For DC Motors

Detailed Product Description

Designation:	6215 M/C4VL0241	Coating:	Aluminium Oxide Coating
Electrical Resistance:	Voltages Up To 3000 V DC	Cage:	Brass
Cleance:	C4	Dimension:	75×130×25 mm
Weight:	1.35 kg	Application:	DC Motors

Electric Insulated Deep Groove Ball Bearing 6215 M/C4VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

Electric motors Bearing 6215 M/C4VL0241, generators and associated equipment are at risk when an electric current passes through their bearings. This can damage the contact surfaces of rolling elements and raceways in the bearings (electrical erosion) and rapidly degrade the grease. An additional risk in electric motors and generators comes from high frequency currents caused by the inherent stray capacitance. The risk of damage increases where the application uses a frequency converter.

Electric Insulated Bearing 6215 M/C4VL0241/ INSOCOAT bearings:

• are designed to prevent electric current from passing through the bearing
• have the external surfaces of either their inner or outer ring coated with an insulating aluminium oxide layer, by applying a sophisticated plasma-spray process for an outstanding quality finish
• are a very cost-effective solution compared with other insulation methods

Features and Benefits of CoatMaster Electrically Insulated rolling Bearings 6215 M/C4VL0241

Principle bearing types for traction motor applications

• cylindrical roller bearings
• electrically insulated cylindrical roller bearings

• electrically insulated deep groove ball bearings

• hybrid cylindrical roller bearings with ceramic rollers

• hybrid deep groove ball bearings with ceramic balls

• traction motor bearing units based on cylindrical roller bearings and deep groove ball bearings

• Sensorised traction motor bearing unit

• Regreasable traction motor bearing unit

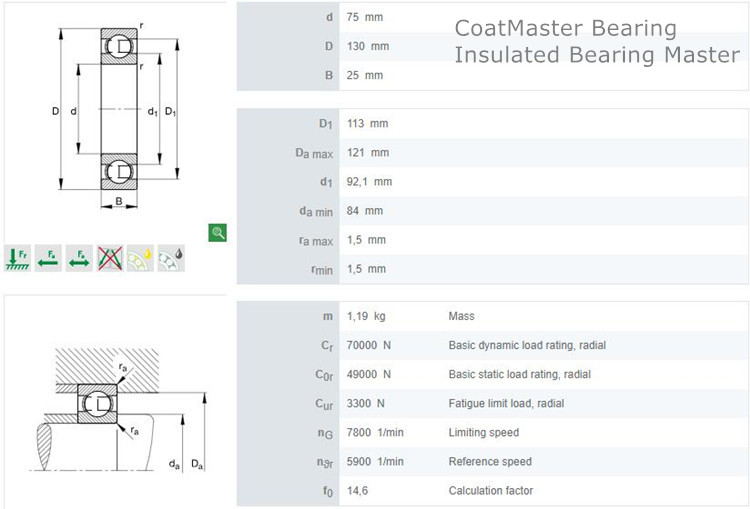

Electrically insulated Rolling Bearings 6215 M/C4VL0241
Principal dimensions 75×130×25mm
Weight 1.35 kg
Basic dynamic load rating-C 68.9kN
Basic static load rating-Co 49kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 6700 r/min
 Electrically Insulated Rolling Bearing as a Preventive Measure

As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.

Benefits of CoatMaster 6215 M/C4VL0241 Electrically Insulated Bearing

• two functions in one solution:
  – a bearing function
  – electrical insulation
• virtually eliminates premature bearing failures caused by stray electric currents
• increases machine uptime
• reduces maintenance costs
• provides an economical solution when compared with other insulation solutions
• global availability.

XRB is the China bearing exporter & supplier, it can supply 6215M/C4VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6215-M-J20AA-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
