Detailed Product Description
| Designation: | NJ324 ECM/C4VA301 | Coating: | Aluminium Oxide Coating |
| Electrical Resistance: | Voltages Up To 3000 V DC | Cage: | Brass |
| Cleance: | C4 | Dimension: | 120×260×55 mm |
| Weight: | 15 kg | Application: | Electric Traction Motors |

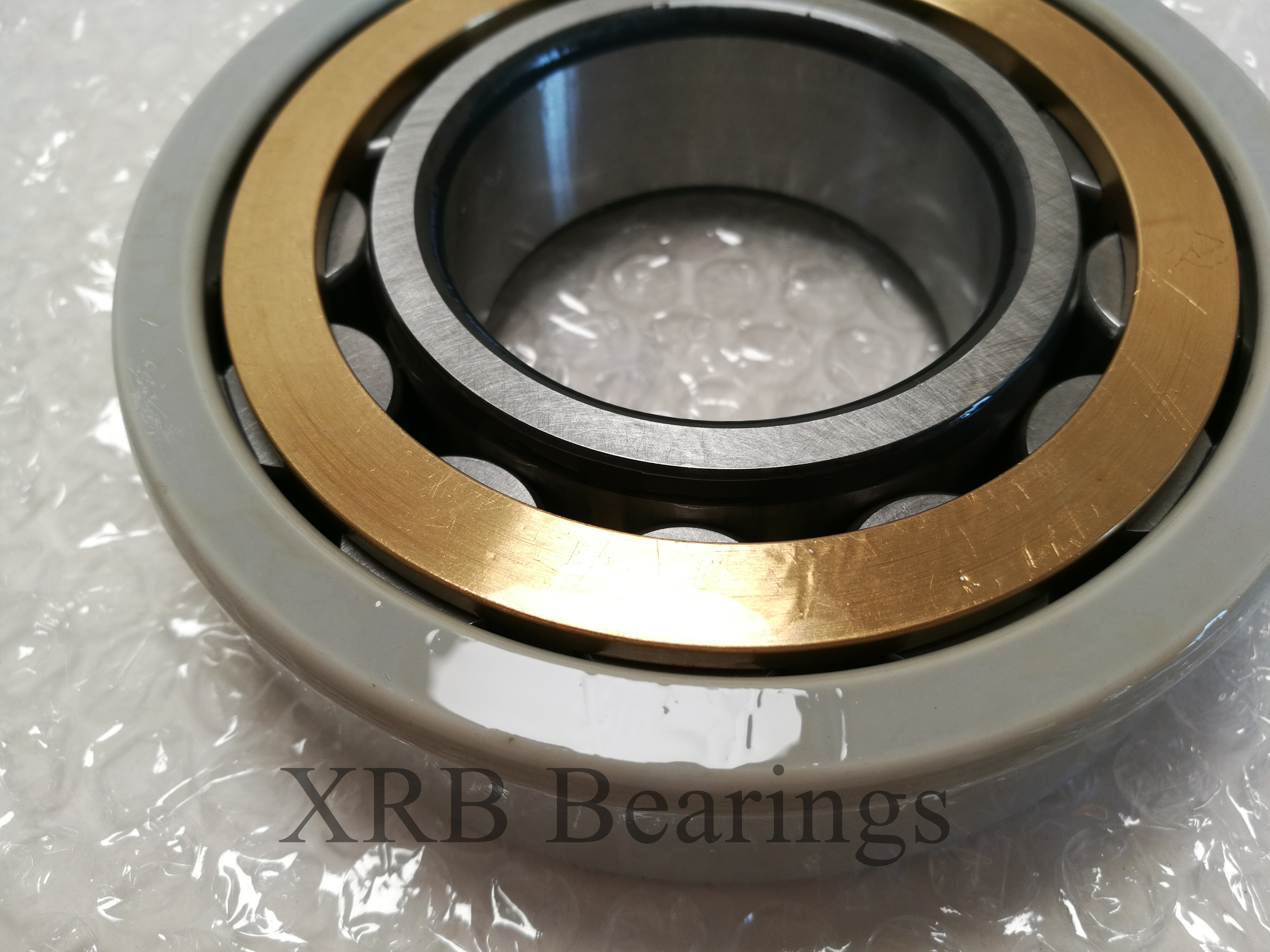

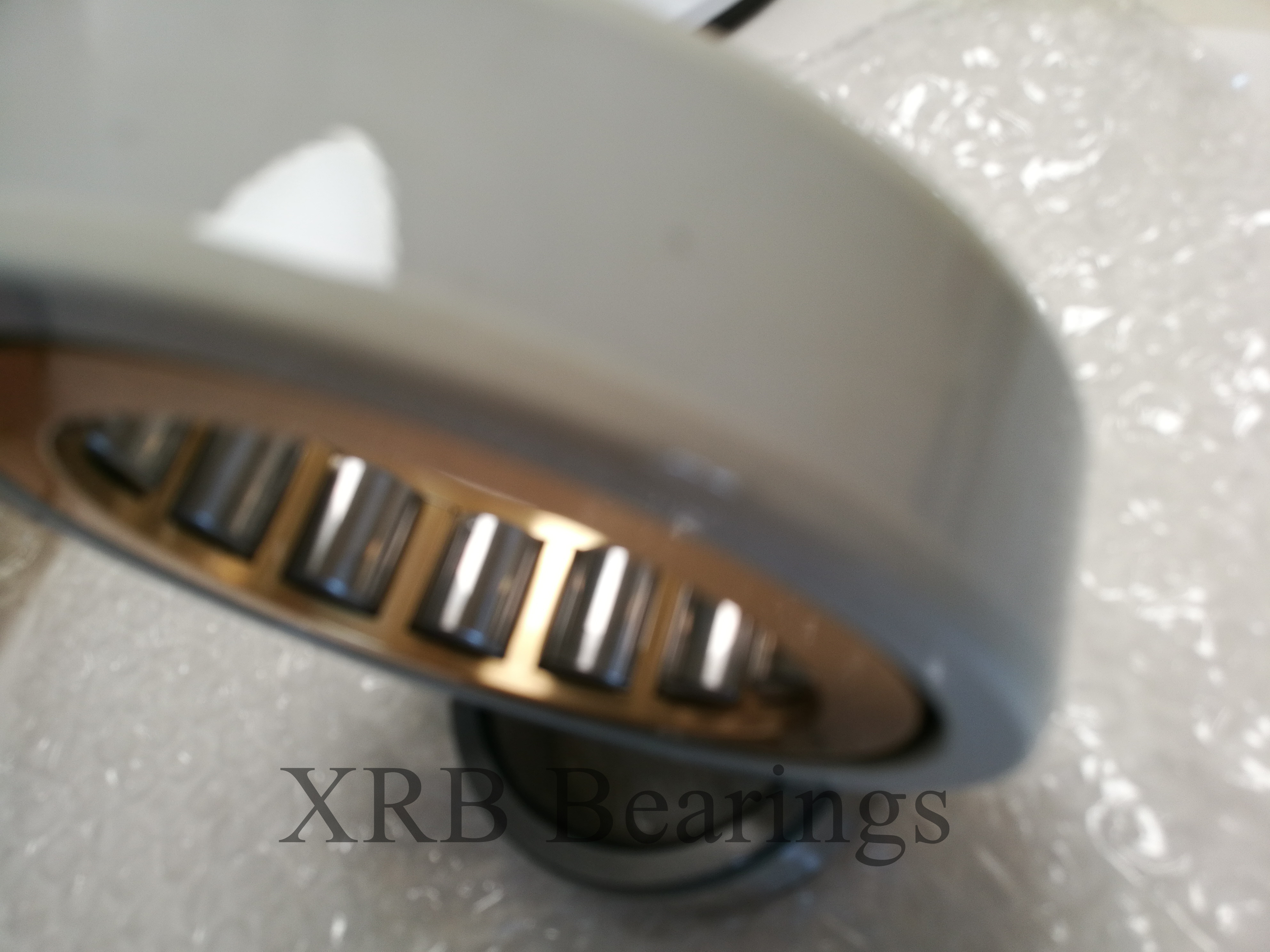

CoatMaster Eelectrically Insulated Cylindrical Roller Bearing NJ324 ECMC4VA301 Environmentally friendly
Electrical Insulated Cylindrical Roller Bearing NJ324 ECM/C4VA301 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

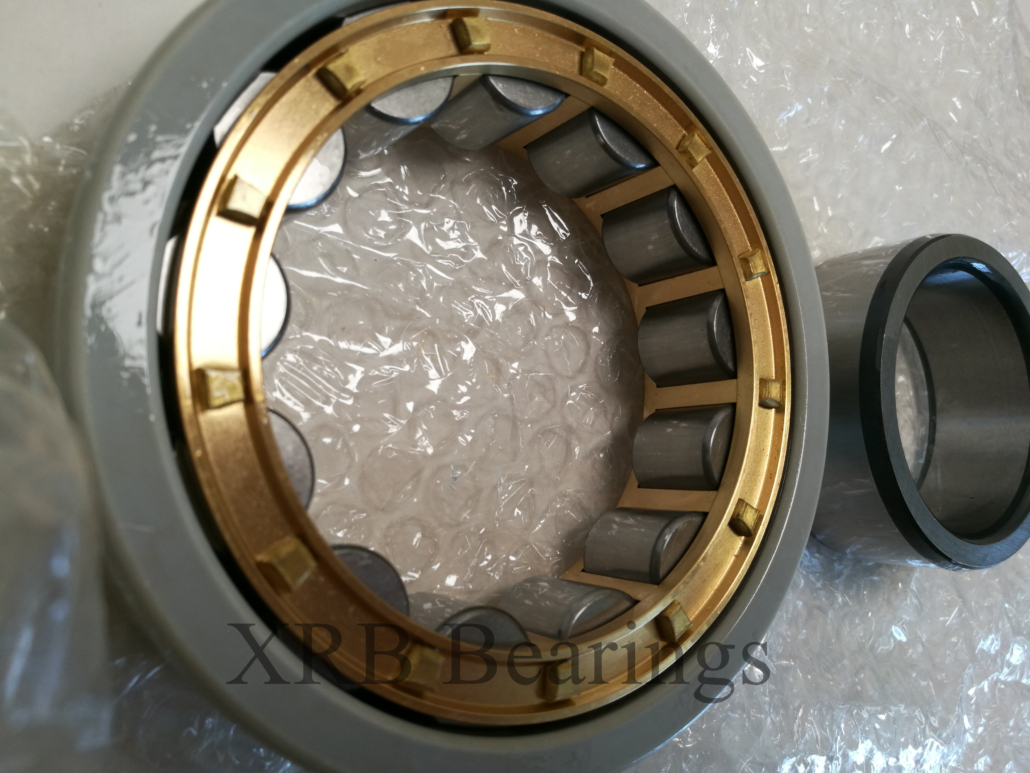

Electric Insulated Cylindrical Roller Bearing NJ324 ECM/C4VA301 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel NJ324 ECM/C4 Cylindrical Roller Bearing.
Principle bearing types for traction motor applications
- Cylindrical roller bearings
- Electrically insulated CoatMaster cylindrical roller bearings
- Electrically insulated CoatMaster deep groove ball bearings
- hybrid cylindrical roller bearings with ceramic rollers
- hybrid deep groove ball bearings with ceramic balls
- traction motor bearing units based on cylindrical roller bearings and deep groove ball bearings
- Sensorised traction motor bearing unit
- Regreasable traction motor bearing unit
Loads of Electrically Insulated Rolling Bearing
In order to select the best bearing for a particular application, all operational loads should be taken into account. In addition to the weight of the components, the forces created when power is transmitted, such as those listed below, should also be considered:
- the magnetic pull resulting from asymmetrical air gaps
- dynamic forces due to misalignment
- out of balance forces
- forces due to pitch errors in gears
- thrust loads
Loads can be radial, axial or a combination of the two. In cases where there are heavy loads,
Roller bearings are typically used. Ball bearings are generally used for lighter loads. Certain bearings, such as NU322 ECM/C4VA301 cylindrical roller bearings, accommodate radial loads only while other bearings, such as angular contact ball bearings, are better suited for combined loads.
Electrically insulated Rolling Bearings NJ324 ECM/C4VA301
Principal dimensions 120×260×55mm
Weight 15kg
Basic dynamic load rating-C: 0kN
Basic static load rating-Co: 0kN
Fatigue load limit-Pu: 0 kN
Reference speed: 0 r/min
Limiting speed: 3200 r/min
Advantages of Electrically Insulated Cylindrical Roller Bearing NJ324 ECM/C4VA301 :
> Higher operational reliability through optimum protection against current passages
> More economical than insulation on housings or shafts
> Interchangeable: Same dimensions and technical properties as conventional bearings
> Coating resistant to mechanical damage if correctly handled
Typical applications of : Eelectrically Insulated Cylindrical Roller Bearing NJ324 ECMC4VA301
> Traction motors of railway vehicles
> Electric motors (AC/DC)
> Generators (e.g. in wind turbine generators)
XRB is the China bearing manufacturer & exporter & supplier, it can supply CoatMaster NJ324 ECM/C4VA301 Electrically Insulated Cylindrical Roller bearing, Our large quantity Electrically Insulated Cylindrical Roller bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG NJ324 M-J20A-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
More questions, please contact our sales team.
