Detailed Product Description
| Designation: | 6232 N1M/C5HS0VL2071 | Coating: | Aluminium Oxide Coating |
| Electrical Resistance: | Voltages Up To 3000 V DC | Cage: | Brass |
| Cleance: | C4 | Dimension: | 160×290×48 mm |
| Weight: | 14.5 kg | Application: | Electric Traction Motors |
Electrically insulated bearing 6232 N1M/C5HS0VL2071 for Unique sensorised traction motor
Electric Insulated Deep Groove Ball Bearing 6232 N1M/C5HS0VL2071 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

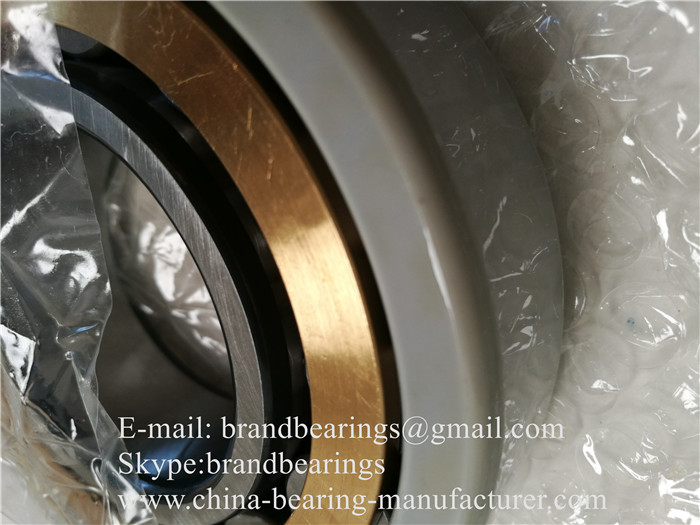

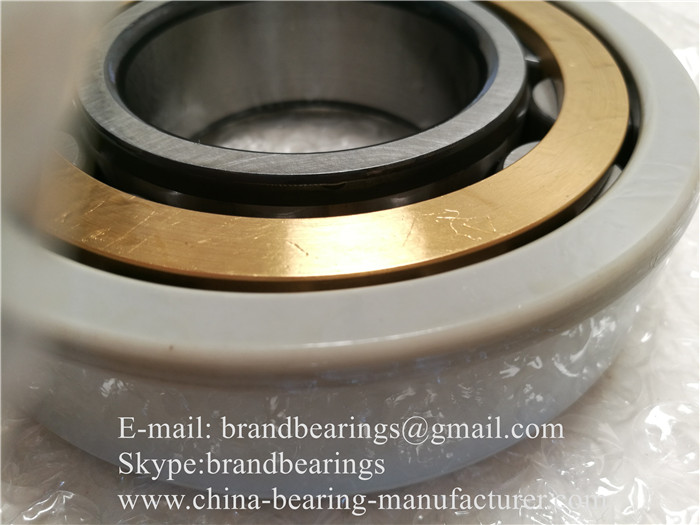

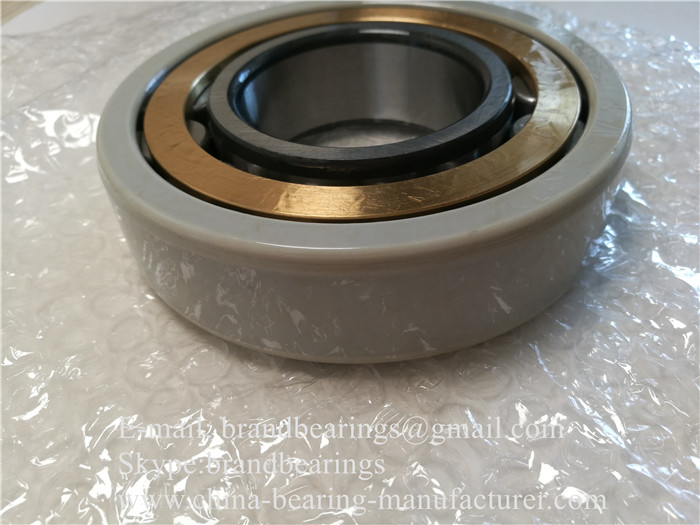

Electric Insulated Deep Groove Ball Bearing 6232 N1M/C5HS0VL2071 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel 6232 M/C5 Deep Groove Ball Bearing.
Electrically insulated Rolling Bearings 6232 N1M/C5HS0VL2071
Principal dimensions 160×290×48mm
Weight: 14.5 kg
Basic dynamic load rating-C: 186kN
Basic static load rating-Co: 186kN
Fatigue load limit-Pu: 0 kN
Reference speed: 0 r/min
Limiting speed: 3000 r/min
As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.
The Electrically Insulated Bearing 6232 N1M/C5HS0VL2071 adopts the special spraying process, spraying the high quality coating on the outer surface of the bearing, Strong adhesion between film and substrate, Good insulation performance, avoiding the electric corrosion effect of the induced current on the bearing, Prevent current from damage for grease, rolling elements and raceways, Improve the service life of bearings . The process is constantly being improved. Among Electrically Insulated Bearing, there is a 100 μm thick coating on the outer or inner ring surface that can withstand voltages up to 1000 V DC. Special spraying process can form a layer with uniform thickness and strong adhesion , After further processing, it can be protected from moisture and humidity.
XRB is the China bearing manufacturer & exporter & supplier, it can supply 6232 N1M/C5HS0VL2071 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6232-M-J20AA-C5 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
