Detailed Product Description
| Designation: | 6315 M/C4HVL0241 | Coating: | Aluminium Oxide Coating |
| Electrical Resistance: | Voltages Up To 3000 V DC | Cage: | Brass |
| Cleance: | C4H | Dimension: | 75×160×37 mm |
| Weight: | 3.7 kg | Application: | Electric Traction Motors |

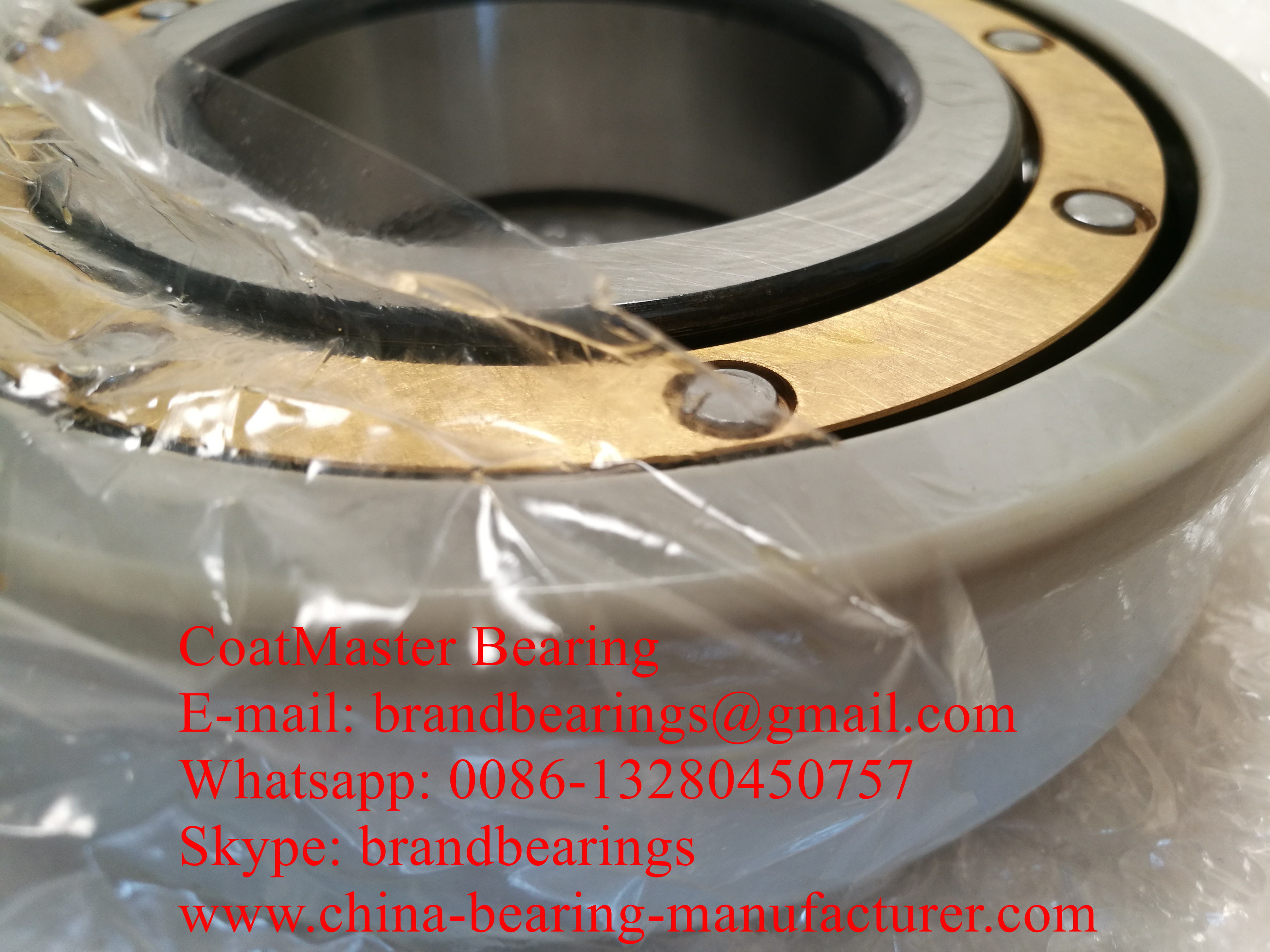

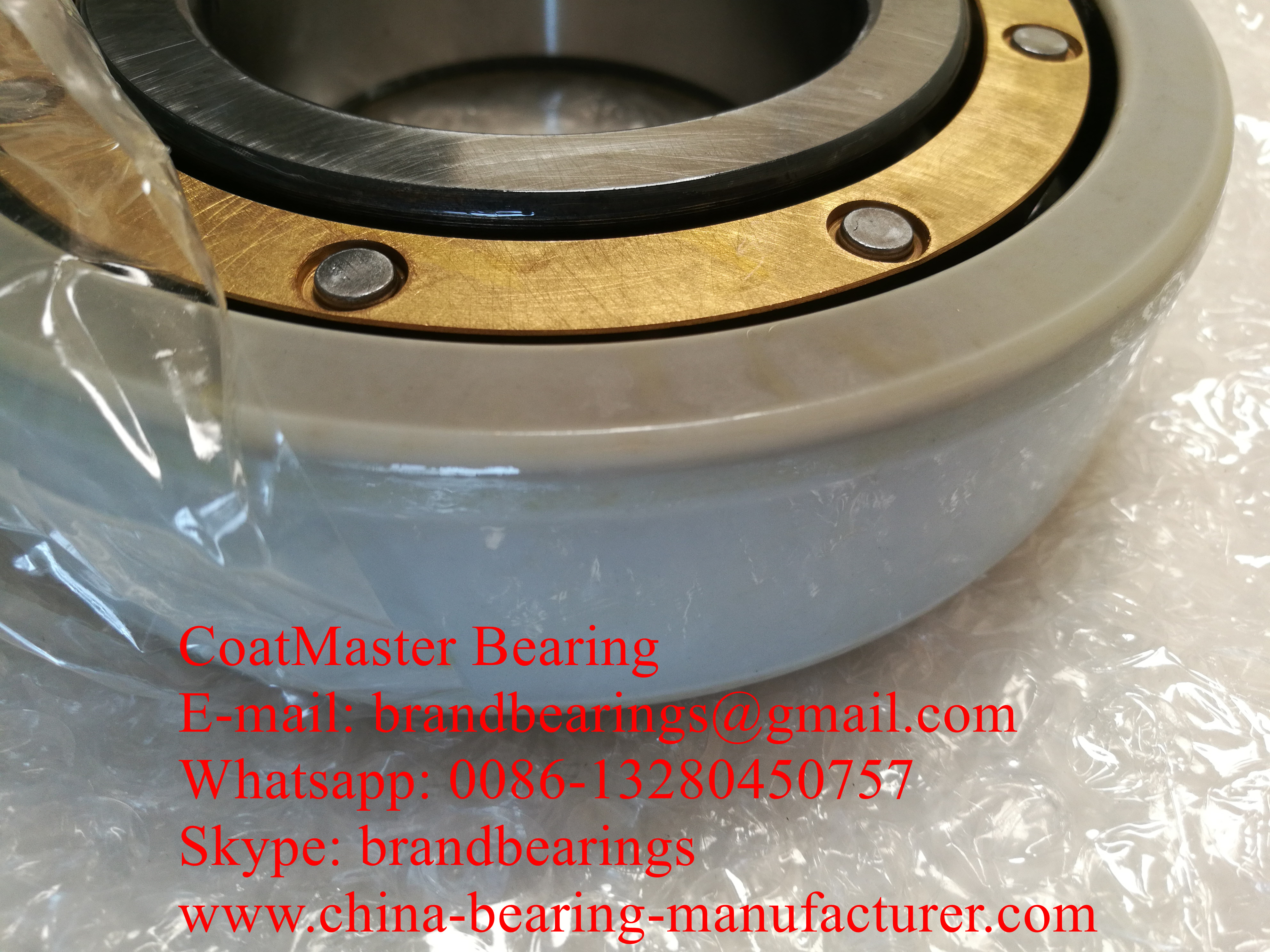

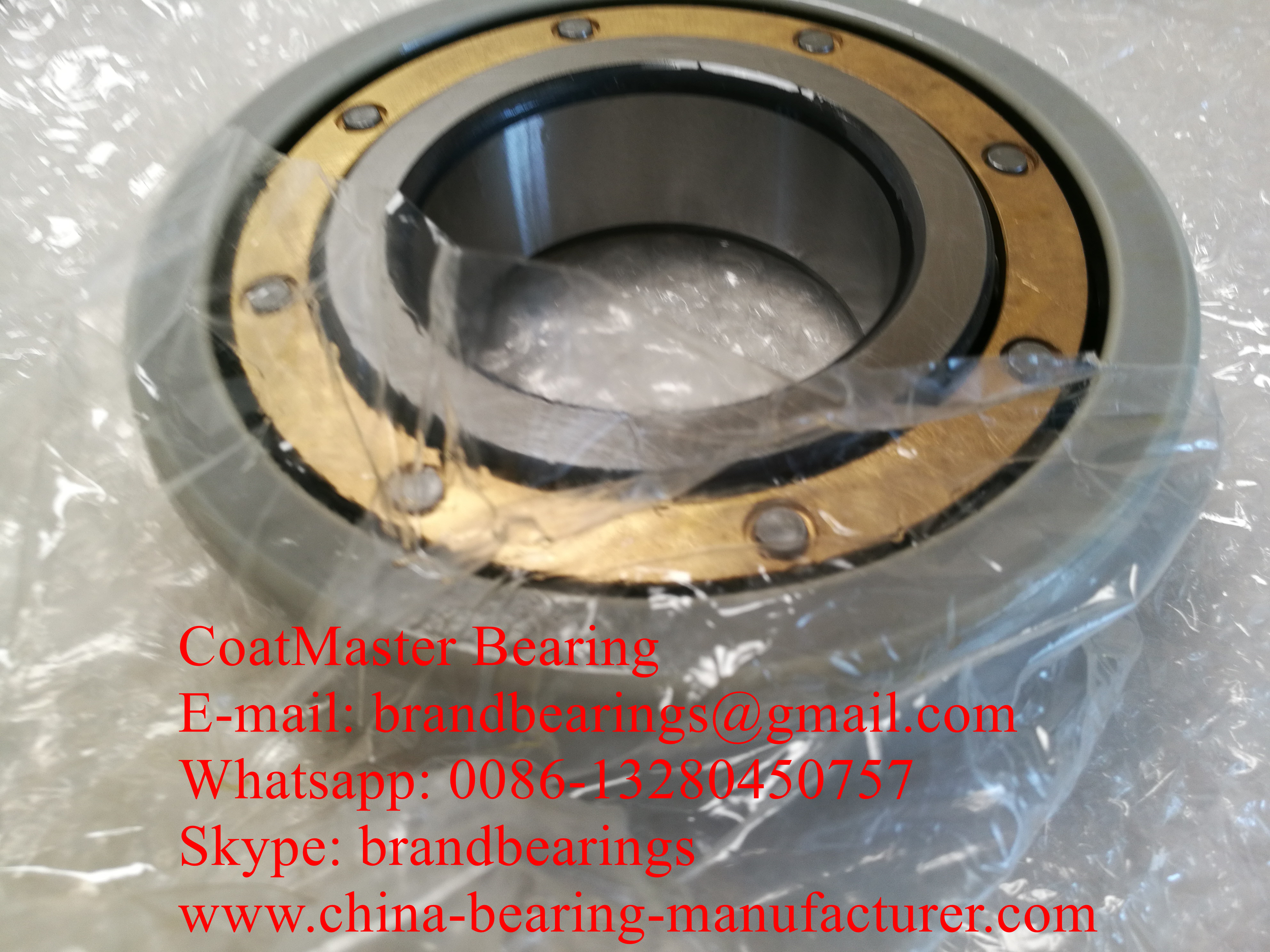

Electrically Insulated Bearing 6315 M/C4HVL0241 is Deep Groove Ball Bearing design. its dimension is 75×160×37mm, it has the same dimension and the same design with normal chrome steel 6315 bearing. but the most different is 6315M/C4HVL0241 bearing with Aluminium Oxide Coating. the coating can Electrical Resistance Voltages up to 3000 V DC.
Electrically Insulated Bearing 6315 M/C4HVL0241 can protect the machine to be exposed to electrical current. In a worst-case scenario, this can damage raceways and rolling elements, which in turn, causes the motor or generator to fail prematurely and without warning. On top of the extra expenses incurred for repairs, this also means additional costs caused by machine downtime and the resulting production losses.
Electrically Insulated Bearing 6315 M/C4HVL0241 are not only Electrically Insulated deep groove ball Bearing, but also Electrically Insulated Cylindrical Roller Bearing, Electrically Insulated Tapered Roller Bearing, Electrically Thrust Roller Bearing and the other type Normal or Non-Standard Electrically Insulated Rolling Bearings. they are the same dimension, same cage, same elements and the other data with normal chrome steel rolling bearing, just the different coating on the surface of the inner ring or outer ring of the Rolling Bearing.

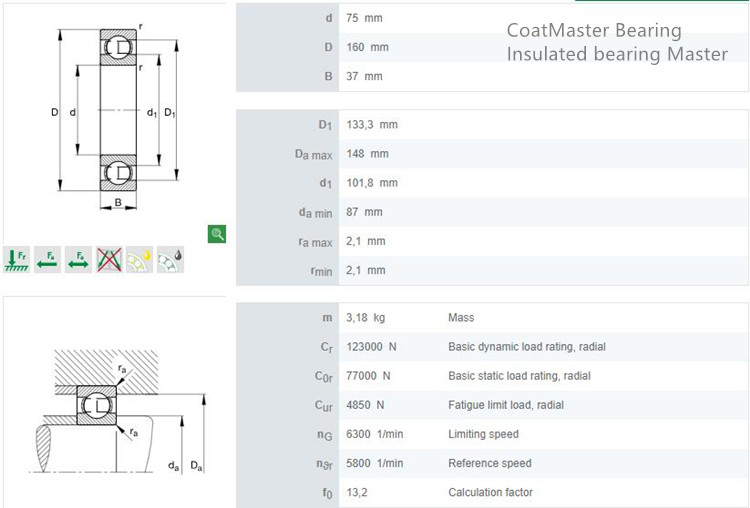

Electrically insulated Rolling Bearings 6315M/C4HVL0241
Principal dimensions 75×160×37mm
Weight 3.7 kg
Basic dynamic load rating-C: 119kN
Basic static load rating-Co: 76.5kN
Fatigue load limit-Pu: 0 kN
Reference speed: 0 r/min
Limiting speed: 5600 r/min
Electrically Insulated Rolling Bearing 6315 M/C4HVL0241 as a Preventive Measure
As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.
Electrically Insulated bearing used in:
- wheelsets and traction motors
(rail vehicles)
- DC and AC motors (drivetrains)
- generators (wind power)
XRB is the China bearing exporter & manufacturer & supplier, it can supply CoatMaster 6315 M/C4VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6315-M-J20AA-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
6310 M/C4VL0241 Electrically Insulated Deep groove Bearings for Traction Motor
Detailed Product Description
| Place of Origin: | China |
| Brand Name: | EASIER |
| Certification: | ISO9001 |
| Model Number: | 6310 M/C4VL0241 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
| Price: | negotiate |
| Packaging Details: | Single box and then put in Carton or Wooden Case |
| Delivery Time: | 5 days after confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 500 Pcs/Month |
Detailed Product Description
| Designation: | 6310 M/C4VL0241 | Coating: | Aluminium Oxide Coating |
| Electrical Resistance: | Voltages Up To 3000 V DC | Cage: | Brass |
| Cleance: | C4 | Dimension: | 50×110×27 mm |
| Weight: | 1.3 kg | Application: | Electric Traction Motors |
Electric Insulated Deep Groove Ball Bearing 6310 M/C4VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.
Electric Insulated Deep Groove Ball Bearing 6310 M/C4VL0241 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel 6310 M/C4 Deep Groove Ball Bearing.
Features and Benefits of FAG Electrically Insulated rolling Bearings
• Oxide ceramic coatings (J20…) provide a high level of insulation. Plasma spraying is used to apply these coatings to the bearing surfaces
• Thanks to a special sealant, the J20AA coating retains its insulating properties even in a damp environment. The resulting oxide ceramic coating is very hard, wear resistant, and a good thermal conductor.
• The external dimensions of the current-insulated rolling bearings are in accordance with DIN 616 (ISO 15). This means that they are interchangeable with standard bearings.
• For special applications, such as those with a rotating outer ring, we recommend using an inner ring coated with J20C.
• Starting with the 62-series and up, coated deep-groove ball bearings are available in both open and sealed versions (with lip seals on one or both sides). This enables the user to also benefit from the advantages offered by for-life lubrication.
Electrically insulated Rolling Bearings 6310 M/C4VL0241
Principal dimensions 50×110×27mm
Weight 1.3 kg
Basic dynamic load rating-C 65kN
Basic static load rating-Co 38kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 8500 r/min
Electrically Insulated Rolling Bearing as a Preventive Measure
As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.
The railway industry never stands still and improvements and performance are developed daily. Together with our customers, we are always aware of the latest trends in the market place and we are committed to staying completely up-to-date to make sure that the very latest developments are integrated into new products.
Drive systems, such as gearboxes and traction motors for railway trains, have to be powerful, environmentally friendly, cost-effective and require very low needs for maintenance. These requirements are much more stringent than those in many other industries, because of the weight of railway vehicles and the long service intervals for high speed trains.
XRB is the China bearing exporter & supplier, it can supply 6310 M/C4VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6310-M-J20AA-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
6310 M/C4VL0241 Electrically Insulated Deep groove Bearings for Traction Motor
Detailed Product Description
| Place of Origin: | China |
| Brand Name: | EASIER |
| Certification: | ISO9001 |
| Model Number: | 6310 M/C4VL0241 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
| Price: | negotiate |
| Packaging Details: | Single box and then put in Carton or Wooden Case |
| Delivery Time: | 5 days after confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 500 Pcs/Month |
Detailed Product Description
| Designation: | 6310 M/C4VL0241 | Coating: | Aluminium Oxide Coating |
| Electrical Resistance: | Voltages Up To 3000 V DC | Cage: | Brass |
| Cleance: | C4 | Dimension: | 50×110×27 mm |
| Weight: | 1.3 kg | Application: | Electric Traction Motors |
Electric Insulated Deep Groove Ball Bearing 6310 M/C4VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.
Electric Insulated Deep Groove Ball Bearing 6310 M/C4VL0241 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel 6310 M/C4 Deep Groove Ball Bearing.
Features and Benefits of FAG Electrically Insulated rolling Bearings
• Oxide ceramic coatings (J20…) provide a high level of insulation. Plasma spraying is used to apply these coatings to the bearing surfaces
• Thanks to a special sealant, the J20AA coating retains its insulating properties even in a damp environment. The resulting oxide ceramic coating is very hard, wear resistant, and a good thermal conductor.
• The external dimensions of the current-insulated rolling bearings are in accordance with DIN 616 (ISO 15). This means that they are interchangeable with standard bearings.
• For special applications, such as those with a rotating outer ring, we recommend using an inner ring coated with J20C.
• Starting with the 62-series and up, coated deep-groove ball bearings are available in both open and sealed versions (with lip seals on one or both sides). This enables the user to also benefit from the advantages offered by for-life lubrication.
Electrically insulated Rolling Bearings 6310 M/C4VL0241
Principal dimensions 50×110×27mm
Weight 1.3 kg
Basic dynamic load rating-C 65kN
Basic static load rating-Co 38kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 8500 r/min
Electrically Insulated Rolling Bearing as a Preventive Measure
As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.
The railway industry never stands still and improvements and performance are developed daily. Together with our customers, we are always aware of the latest trends in the market place and we are committed to staying completely up-to-date to make sure that the very latest developments are integrated into new products.
Drive systems, such as gearboxes and traction motors for railway trains, have to be powerful, environmentally friendly, cost-effective and require very low needs for maintenance. These requirements are much more stringent than those in many other industries, because of the weight of railway vehicles and the long service intervals for high speed trains.
XRB is the China bearing exporter & supplier, it can supply 6310 M/C4VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6310-M-J20AA-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
