Detailed Product Description
| Designation: | NU326 ECM/C4VA301 | Coating: | Aluminium Oxide Coating |
| Electrical Resistance: | Voltages Up To 3000 V DC | Cage: | Brass |
| Cleance: | C4 | Dimension: | 130×280×58 mm |
| Weight: | 18.5 kg | Application: | Electric Traction Motors |

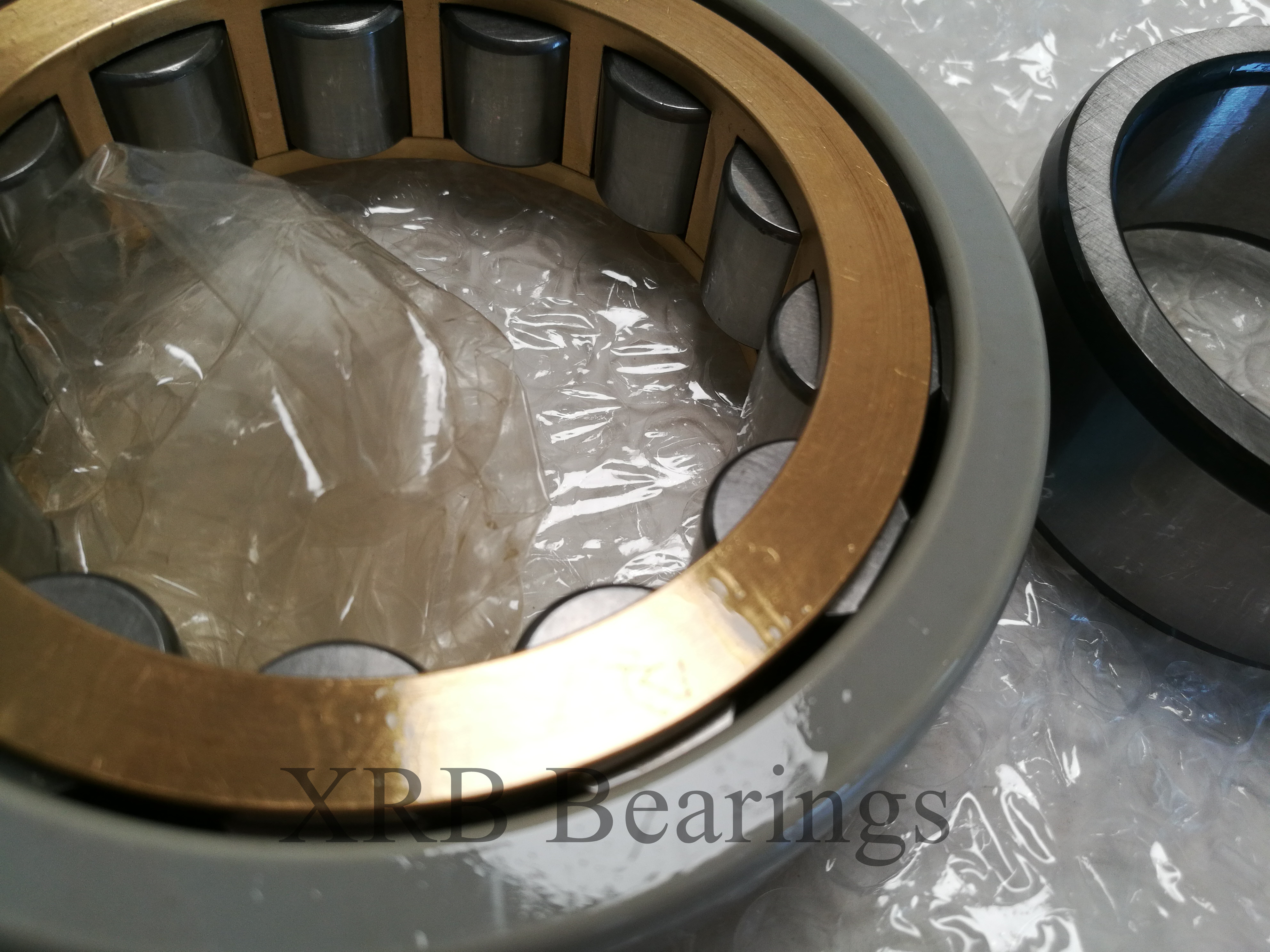

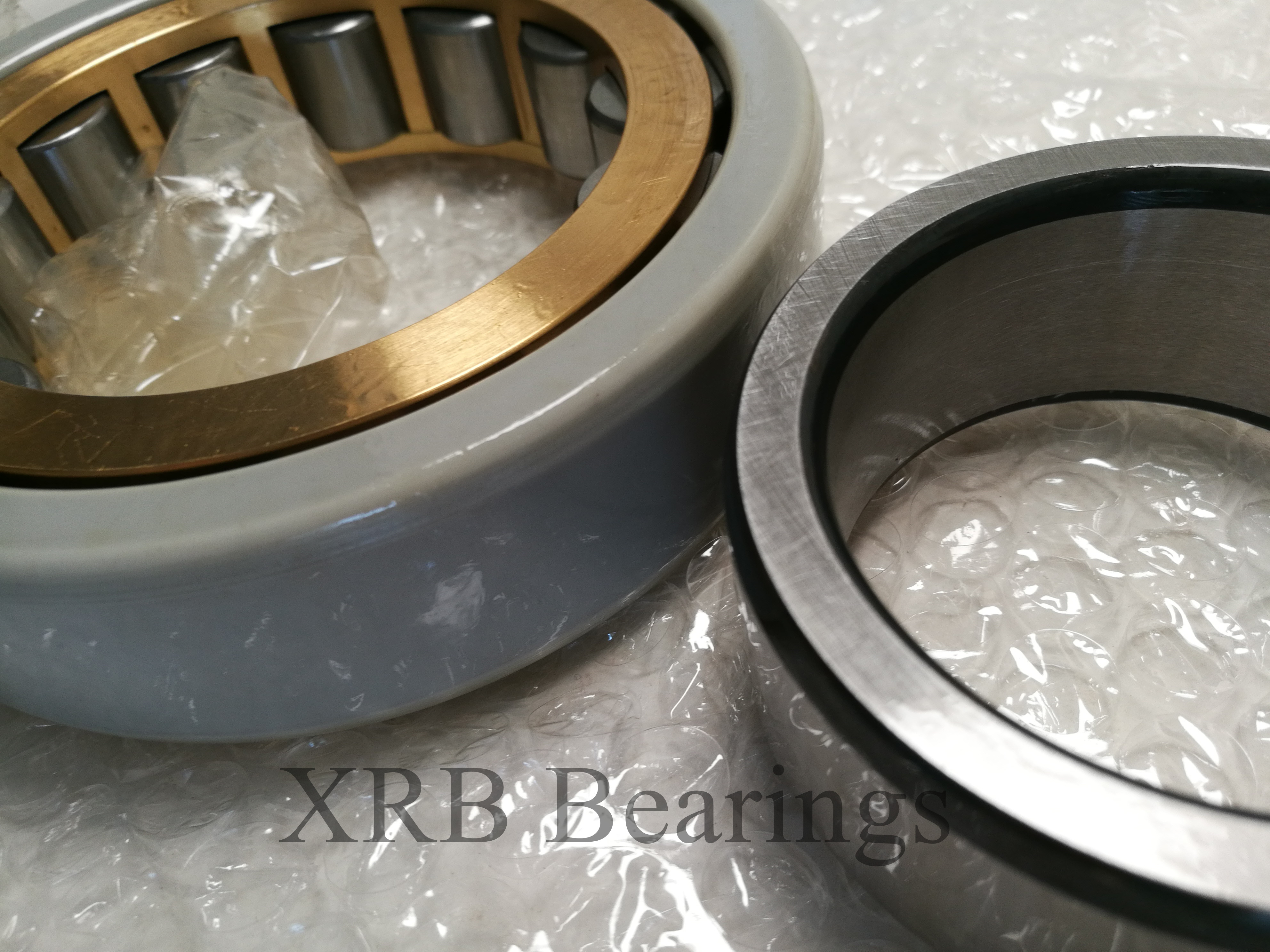

Electrically Insulated Cylindrical Roller Bearing NU326 ECM/C4VA301 with Outer Ring Coated For Drive Systems of Railway Vehicles
Electric Insulated Cylindrical Roller Bearing NU326 ECM/C4VA301 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

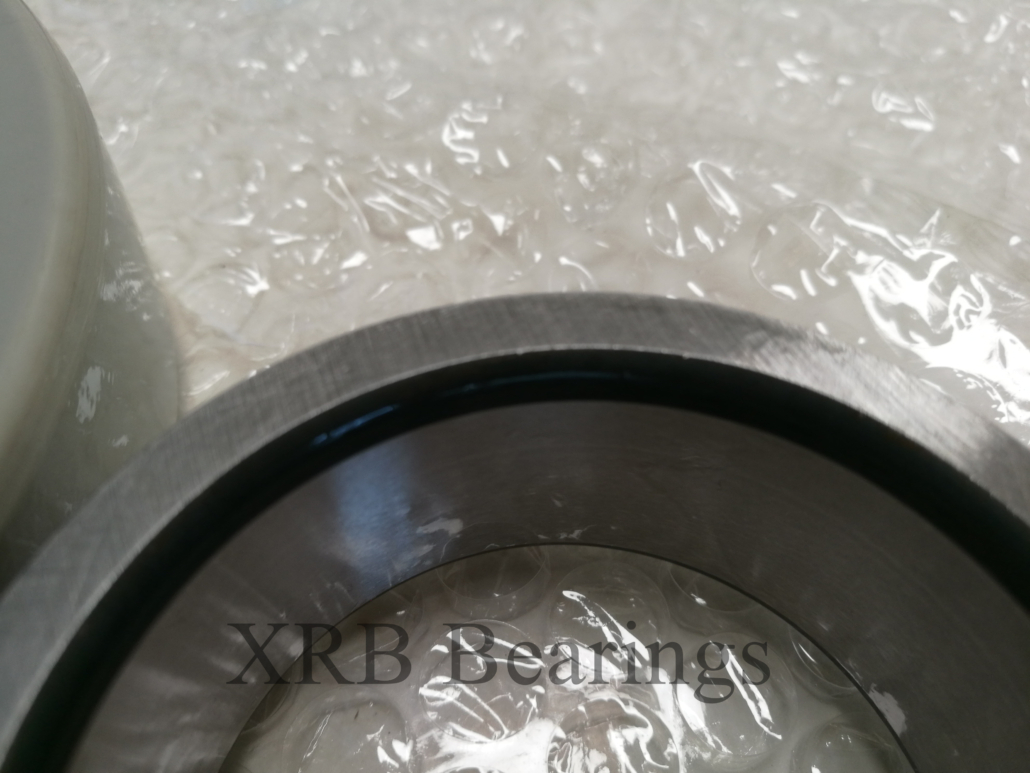

Electric Insulated Cylindrical Roller Bearing NU326 ECM/C4VA301 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel NU326 ECM/C4 Cylindrical Roller Bearing.
Electrically Insulated Bearing are not only Electrically Insulated deep groove ball Bearing, but also Electrically Insulated Cylindrical Roller Bearing, Electrically Insulated Tapered Roller Bearing, Electrically Thrust Roller Bearing and the other type Normal or Non-Standard Electrically Insulated Rolling Bearings. they are the same dimension, same cage, same elements and the other data with normal chrome steel rolling bearing, just the different coating on the surface of the inner ring or outer ring of the Rolling Bearing.
A much more economical solution is to provide for the use of Electrically Insulated Bearing NU326 ECM/C4VA301 during the planning stage. This reduces maintenance and repair costs, and increases machine availability – all of which means greater value for the customer.
In most cases, it is sufficient to interrupt the electric circuit between the housing and shaft, in order to mount Electrically Insulated Bearing at one or both bearing locations, depending on the application.
Electrically insulated Rolling Bearings NU326 ECM/C4VA301
Principal dimensions 130×280×58mm
Weight 18.5 kg
Basic dynamic load rating-C: 720kN
Basic static load rating-Co: 750kN
Fatigue load limit-Pu: 81.5 kN
Reference speed: 2400 r/min
Limiting speed: 3500 r/min
Design Features of Electrically Insulated Cylindrical Roller Bearing NU326 ECM/C4VA301
› Alumina-based ceramic coating material with optimized additives
› Bearings are plasma sprayed to ensure appropriate bonding to the bearing steel
› Coating is sealed with a special acrylic resin
› Bearings are manufactured from ultra clean steel for extended fatigue life
› High-grade balls for quiet and smooth operation at high speeds
› Super finished raceways – minimize noise and improve lubricant distribution
› Available for series 62 from 75 to 130 mm bore diameter; for series 63 from 60 to 110 mm bore diameter
› Open type, with C3 radial internal clearance
XRB is the China bearing manufacturer & exporter & supplier, it can supply CoatMaster NU326 ECM/C4VA301 Electrically Insulated Cylindrical Roller bearing, Our large quantity Electrically Insulated Cylindrical Roller bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG NU326 M-J20A-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
More questions, please contact our sales team.
