High Temperaturer+150 °C Electrically Insulated Bearing 6016 MP65HS0VL0241
Detailed Product Description
| Place of Origin: | China |
| Brand Name: | CoatMaster |
| Certification: | ISO9001 |
| Model Number: | 6016 M/P65HS0VL0241 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
| Price: | negotiate |
| Packaging Details: | Single box and then put in Carton or Wooden Case |
| Delivery Time: | 5 days after confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 500 Pcs/Month |
Detailed Product Description
| Designation: | 6016 M/P65HS0VL0241 | Coating: | Aluminium Oxide Coating |
| Electrical Resistance: | Voltages Up To 3000 V DC | Cage: | Brass |
| Grade: | P65 | Dimension: | 80×125×22 mm |
| Weight: | 1.1 kg | Application: | Electric Traction Motors |
Electric Insulated Deep Groove Ball Bearing 6016M/P65HS0VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.
Electric Insulated Deep Groove Ball Bearing 6016 M/P65HS0VL0241 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel 6016 M/P65HS0 S0 Deep Groove Ball Bearing.
CoatMaster provides electrically insulated bearings, to protect against damages caused by electric currents. These bearings have an electrically insulating coating on the outer ring (VL0241 execution), or on the inner ring (VL2071 execution). The inner ring coating can be made from bore diameters above and including 70 mm. The coating consists of a nominal 100-µm thick aluminium oxide layer and is applied by a unique coating process using plasma spraying technology.

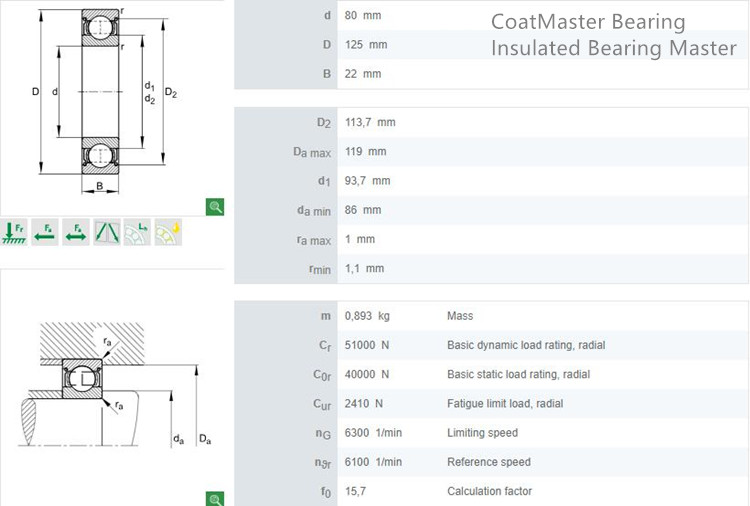

Electric Insulated Deep Groove Ball Bearing 6016 M/P65HS0VL0241
Principal dimensions 80×125×22 mm
Weight 1.1 kg
Basic dynamic load rating-C 49.5kN
Basic static load rating-Co 40kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 7000 r/min
Electrically Insulated Rolling Bearing as a Preventive Measure
Electrically Insulated Bearing 6016 M/P65HS0VL0241, generators and associated equipment are at risk when an electric current passes through their bearings. This can damage the contact surfaces of rolling elements and raceways in the bearings (electrical erosion) and rapidly degrade the grease. An additional risk in electric motors and generators comes from high frequency currents caused by the inherent stray capacitance. The risk of damage increases where the application uses a frequency converter.
Electric Insulated Bearing 6016 M/P65HS0VL0241/ Deep Groove Ball bearings:
- are designed to prevent electric current from passing through the bearing
- have the external surfaces of either their inner or outer ring coated with an insulating aluminium oxide layer, by applying a sophisticated plasma-spray process for an outstanding quality finish
- are a very cost-effective solution compared with other insulation methods
