Thrust Ball Bearing Dimension Chart

/in /by

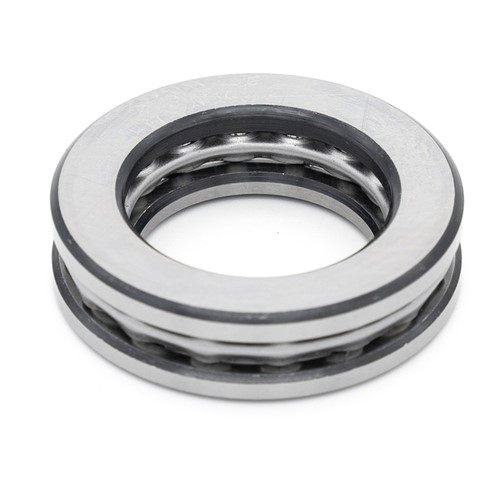

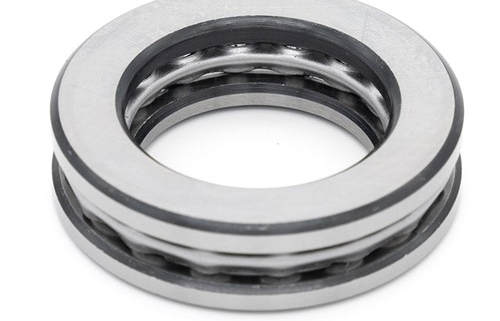

Thrust ball bearings are designed to withstand thrust loads during high-speed operation, and consist of a washer-like ferrule with a ball-rolling raceway groove. Since the ferrule is in the form of a seat cushion, the thrust ball bearing is divided into two types: flat seat cushion type and self-aligning spherical seat cushion type. In addition, this bearing can withstand axial loads, but not radial loads.

Stamped steel cages are the most commonly used thrust ball bearings. In addition, there are copper cages and other designs. For special purposes, there will be a full ball bearing design that does not require cages. This type of bearing is also called thrust deep groove ball. Bearings, we can produce different materials such as Miniature Thrust Ball Bearings, Chrome Steel Thrust Ball Bearings, Stainless Steel Thrust Ball Bearings, Ceramic Thrust Bearings, Plastic Thrust Bearings, etc.

Thrust Ball Bearing Dimension (Size) Chart

Designations Principal dimensions Basic load ratings Speed ratings
CoatMaster Seat washer Thrust Bearing manufacturer of China dynamic static Reference speed Limiting speed
Designation d[mm] D[mm] H[mm] H1[mm] C[kN] C0[kN] [r/min] [r/min]
BA 3 3 8 3.5 0.806 0.72 26 000 36 000
BA 4 4 10 4 0.761 0.72 22 000 30 000
BA 5 5 12 4 0.852 0.965 20 000 28 000
BA 6 6 14 5 1.78 1.92 17 000 24 000
BA 7 7 17 6 2.51 2.9 14 000 19 000
BA 8 8 19 7 3.19 3.8 12 000 17 000
BA 9 9 20 7 3.12 3.8 12 000 16 000
51100 10 24 9 8.71 12.2 9 500 13 000
51200 10 26 11 12.7 18.6 8 000 11 000
51101 12 26 9 10.4 16.6 9 000 13 000
51201 12 28 11 13.3 20.8 8 000 11 000
53201 U 201 12 28 11.4 13 13.3 20.8 8 000 11 000
51102 15 28 9 10.6 18.3 8 500 12 000
51202 15 32 12 15.9 25 7 000 10 000
53202 U 202 15 32 13.3 15 15.9 25 7 000 10 000
51103 17 30 9 11.4 21.2 8 500 12 000
51203 17 35 12 16.3 27 6 700 9 500
53203 U 203 17 35 13.2 15 16.3 27 6 700 9 500
51104 20 35 10 15.1 29 7 500 10 000
51204 20 40 14 21.2 37.5 6 000 8 000
53204 U 204 20 40 14.7 17 21.2 37.5 5 600 8 000
51105 25 42 11 18.2 39 6 300 9 000
51205 25 47 15 26.5 50 5 300 7 500
53205 U 205 25 47 16.7 19 26.5 50 5 000 7 000
51305 25 52 18 34.5 60 4 500 6 300
51405 25 60 24 42.3 67 3 600 5 000
51106 30 47 11 19 43 6 000 8 500
51206 30 52 16 25.1 51 4 800 6 700
53206 U 206 30 52 17.8 20 25.1 51 4 500 6 300
51306 30 60 21 35.8 65.5 3 800 5 300
Designations Principal dimensions Basic load ratings Speed ratings
CoatMaster Seat washer Thrust Bearing manufacturer of China dynamic static Reference speed Limiting speed
Designation d[mm] D[mm] H[mm] H1[mm] C[kN] C0[kN] [r/min] [r/min]
53306 U 306 30 60 22.6 25 35.8 65.5 3 800 5 300
51406 30 70 28 70.2 122 3 000 4 300
51107 35 52 12 19.9 51 5 600 7 500
51207 35 62 18 35.1 73.5 4 000 5 600
53207 U 207 35 62 19.9 22 35.1 73.5 4 000 5 600
51307 35 68 24 49.4 96.5 3 400 4 800
53307 U 307 35 68 25.6 28 49.4 96.5 3 200 4 500
51407 35 80 32 76.1 137 2 600 3 600
51108 40 60 13 25.5 63 5 000 7 000
51208 40 68 19 44.2 96.5 3 800 5 300
53208 U 208 40 68 20.3 23 44.2 96.5 3 600 5 300
51308 40 78 26 61.8 122 3 000 4 300
53308 U 308 40 78 28.5 31 61.8 122 2 800 4 000
51408 40 90 36 95.6 183 2 400 3 400
53408 U 408 40 90 38.2 42 95.6 183 2 400 3 200
51109 45 65 14 26.5 69.5 4 500 6 300
51209 45 73 20 39 86.5 3 600 5 000
53209 U 209 45 73 21.3 24 39 86.5 3 400 4 800
51309 45 85 28 76.1 153 2 800 4 000
53309 U 309 45 85 30.1 33 76.1 153 2 600 3 800
51409 45 100 39 124 240 2 200 3 000
51110 50 70 14 27 75 4 300 6 300
51210 50 78 22 49.4 116 3 400 4 500
53210 U 210 50 78 23.5 26 49.4 116 3 200 4 500
51310 50 95 31 81.9 170 2 600 3 600
53310 U 310 50 95 34.3 37 81.9 170 2 400 3 400
51410 50 110 43 159 340 2 000 2 800
53410 U 410 50 110 45.6 50 159 340 1 900 2 600
51111 55 78 16 30.2 81.5 3 800 5 300
51211 55 90 25 58.5 134 2 800 4 000
Designations Principal dimensions Basic load ratings Speed ratings
CoatMaster Seat washer Thrust Bearing manufacturer of China dynamic static Reference speed Limiting speed
Designation d[mm] D[mm] H[mm] H1[mm] C[kN] C0[kN] [r/min] [r/min]
53211 U 211 55 90 27.3 30 58.5 134 2 800 3 800
51311 55 105 35 101 224 2 200 3 200
53311 U 311 55 105 39.3 42 101 224 2 200 3 000
51411 55 120 48 195 400 1 800 2 400
53411 U 411 55 120 50.5 55 195 400 1 700 2 400
51112 60 85 17 41.6 122 3 600 5 000
51212 60 95 26 59.2 140 2 800 3 800
53212 U 212 60 95 28 31 59.2 140 2 600 3 600
51312 60 110 35 101 224 2 200 3 000
53312 U 312 60 110 38.3 42 101 224 2 000 3 000
51412 M 60 130 51 199 430 1 600 2 200
53412 M U 412 60 130 54 58 199 430 1 600 2 200
51113 65 90 18 37.7 108 3 400 4 800
51213 65 100 27 60.5 150 2 600 3 600
53213 U 213 65 100 28.7 32 60.5 150 2 600 3 600
51313 65 115 36 106 240 2 000 3 000
53313 U 313 65 115 39.4 43 106 240 2 000 2 800
51413 M 65 140 56 216 490 1 500 2 200
51114 70 95 18 40.3 120 3 400 4 500
53214 U 214 70 105 27 32 62.4 160 2 600 3 600
51214 70 105 27 62.4 160 2 600 3 600
51314 70 125 40 135 320 1 900 2 600
53314 U 314 70 125 44.2 48 135 320 1 800 2 600
51414 M 70 150 60 234 550 1 400 2 000
53414 M U 414 70 150 63.6 69 234 550 1 400 2 000
51115 75 100 19 44.2 134 3 200 4 300
51215 75 110 27 63.7 170 2 400 3 400
53215 U 215 75 110 28.3 32 63.7 170 2 400 3 400
51315 75 135 44 163 390 1 700 2 400
53315 U 315 75 135 48.1 52 163 390 1 700 2 400
Designations Principal dimensions Basic load ratings Speed ratings
CoatMaster Seat washer Thrust Bearing manufacturer of China dynamic static Reference speed Limiting speed
Designation d[mm] D[mm] H[mm] H1[mm] C[kN] C0[kN] [r/min] [r/min]
51415 M 75 160 65 251 610 1 300 1 800
53415 M U 415 75 160 69 75 251 610 1 300 1 800
51116 80 105 19 44.9 140 3 000 4 300
51216 80 115 28 76.1 208 2 400 3 400
53216 U 216 80 115 29.5 33 76.1 208 2 400 3 200
51316 80 140 44 159 390 1 700 2 400
53316 U 316 80 140 47.6 52 159 390 1 600 2 200
51416 M 80 170 68 302 750 1 200 1 700
51117 85 110 19 44.9 146 3 000 4 300
51217 85 125 31 97.5 275 2 200 3 000
53217 U 217 85 125 33.1 37 97.5 275 2 000 3 000
51317 85 150 49 174 405 1 600 2 200
53317 U 317 85 150 53.1 58 174 405 1 500 2 000
51417 M 85 180 72 286 750 1 200 1 600
51118 90 120 22 59.2 208 2 600 3 800
51218 90 135 35 112 290 2 000 2 800
53218 U 218 90 135 38.5 42 112 290 1 900 2 600
51318 90 155 50 182 440 1 500 2 200
53318 U 318 90 155 54.6 59 182 440 1 400 2 000
51418 M 90 190 77 307 815 1 100 1 500
53418 M U 418 90 190 81.2 88 307 815 1 100 1 500
51120 100 135 25 80.6 265 2 400 3 200
51220 100 150 38 119 325 1 800 2 400
53220 U 220 100 150 40.9 45 119 325 1 700 2 400
51320 100 170 55 225 570 1 400 1 900
53320 U 320 100 170 59.2 64 225 570 1 300 1 800
51420 M 100 210 85 371 1 060 950 1 400
53420 M U 420 100 210 90 98 371 1 060 950 1 300
51122 110 145 25 83.2 285 2 200 3 200
51222 110 160 38 125 365 1 700 2 400
Designations Principal dimensions Basic load ratings Speed ratings
CoatMaster Seat washer Thrust Bearing manufacturer of China dynamic static Reference speed Limiting speed
Designation d[mm] D[mm] H[mm] H1[mm] C[kN] C0[kN] [r/min] [r/min]
53222 U 222 110 160 40.2 45 125 365 1 700 2 400
51322 M 110 190 63 291 800 1 200 1 700
53322 M 110 190 67.2 72 291 800 1 200 1 600
51422 M 110 230 95 410 1 220 900 1 300
51124 120 155 25 85.2 305 2 200 3 000
51224 120 170 39 127 390 1 600 2 200
51324 M 120 210 70 332 980 1 100 1 500
53324 M 120 210 74.1 80 332 980 1 000 1 500
51424 M 120 250 102 432 1 320 800 1 100
51126 130 170 30 119 440 1 900 2 600
51226 130 190 45 186 585 1 400 2 000
53226 U 226 130 190 47.9 53 186 585 1 300 1 800
51326 M 130 225 75 351 1 060 1 000 1 400
51426 M 130 270 110 520 1 730 750 1 000
51128 140 180 31 111 440 1 800 2 600
51228 140 200 46 208 630 1 400 1 900
53228 U 228 140 200 48.6 55 190 620 1 300 1 800
51328 M 140 240 80 416 1 370 950 1 300
51428 M 140 280 112 520 1 730 700 1 000
51130 M 150 190 31 111 440 1 700 2 400
51230 M 150 215 50 247 800 1 300 1 800
51330 M 150 250 80 423 1 460 900 1 300
51430 M 150 300 120 559 1 960 670 950
51132 M 160 200 31 112 465 1 700 2 400
51232 M 160 225 51 247 800 1 200 1 700
51332 M 160 270 87 442 1 600 850 1 200
51134 M 170 215 34 133 540 1 600 2 200
51234 M 170 240 55 281 980 1 100 1 600
51334 M 170 280 87 449 1 700 800 1 100
51136 M 180 225 34 135 570 1 500 2 200
Designations Principal dimensions Basic load ratings Speed ratings
CoatMaster Seat washer Thrust Bearing manufacturer of China dynamic static Reference speed Limiting speed
Designation d[mm] D[mm] H[mm] H1[mm] C[kN] C0[kN] [r/min] [r/min]
51236 M 180 250 56 296 1 080 1 100 1 500
51336 M 180 300 95 520 2 000 750 1 100
51138 M 190 240 37 172 710 1 400 2 000
51238 M 190 270 62 338 1 250 1 000 1 400
51338 M 190 320 105 559 2 200 700 950
51140 M 200 250 37 168 710 1 400 1 900
51240 M 200 280 62 332 1 250 1 000 1 400
51340 M 200 340 110 624 2 600 630 900
51144 M 220 270 37 178 800 1 300 1 900
51244 M 220 300 63 358 1 460 950 1 300
51148 M 240 300 45 234 1 040 1 100 1 600
51248 M 240 340 78 449 1 960 800 1 100
51152 M 260 320 45 238 1 100 1 100 1 500
51252 M 260 360 79 488 2 240 750 1 100
51156 M 280 350 53 319 1 460 950 1 300
51256 M 280 380 80 488 2 320 750 1 000
51160 M 300 380 62 364 1 760 850 1 200
51260 M 300 420 95 585 3 000 630 850
51164 M 320 400 63 371 1 860 800 1 100
51264 F 320 440 95 572 3 000 600 850
51264 M 320 440 95 572 3 000 600 850
51168 M 340 420 64 377 1 960 800 1 100
51268 F 340 460 96 605 3 200 600 800
51368 F 340 540 160 1 040 5 850 400 560
59172 F 360 440 48 255 1 500 900 1 200
51172 F 360 440 65 390 2 080 750 1 100
51272 F 360 500 110 741 4 150 530 750
351793 380 460 36 186 1 140 1 000 1 400
59176 F 380 460 48 255 1 530 850 1 200
51176 F 380 460 65 397 2 200 750 1 000
Designations Principal dimensions Basic load ratings Speed ratings
CoatMaster Seat washer Thrust Bearing manufacturer of China dynamic static Reference speed Limiting speed
Designation d[mm] D[mm] H[mm] H1[mm] C[kN] C0[kN] [r/min] [r/min]
51276 F 380 520 112 728 4 150 500 700
51080 F 400 440 30 124 900 1 100 1 600
59180 F 400 480 48 260 1 630 850 1 200
51180 F 400 480 65 403 2 280 700 1 000
51280 F 400 540 112 761 4 500 500 700
51084 F 420 460 30 125 880 1 100 1 600
59184 F 420 500 48 265 1 700 850 1 200
51184 F 420 500 65 410 2 400 700 1 000
51284 F 420 580 130 884 5 500 430 600
51088 F 440 480 30 127 915 1 100 1 500
59188 F 440 540 60 238 1 500 700 1 000
51188 F 440 540 80 527 3 250 600 850
51288 F 440 600 130 904 5 700 430 600
51092 F 460 500 30 130 1 040 1 100 1 500
59192 F 460 560 60 242 1 530 700 950
51192 F 460 560 80 527 3 250 600 800
51292 F 460 620 130 923 5 850 430 600
51096 F 480 520 30 133 1 000 1 000 1 500
59196 F 480 580 60 442 2 800 670 950
51196 F 480 580 80 540 3 550 560 800
51296 F 480 650 135 995 6 550 400 560
510/500 F 500 540 30 133 1 120 1 000 1 400
591/500 F 500 600 60 449 2 900 670 950
511/500 F 500 600 80 553 3 600 560 800
512/500 F 500 670 135 1 010 6 800 380 530
510/530 F 530 580 38 203 1 600 850 1 200
591/530 F 530 640 67 468 3 150 600 850
511/530 F 530 640 85 650 4 400 530 750
510/560 F 560 610 38 203 1 660 850 1 200
591/560 F 560 670 67 475 3 250 600 800
Designations Principal dimensions Basic load ratings Speed ratings
CoatMaster Seat washer Thrust Bearing manufacturer of China dynamic static Reference speed Limiting speed
Designation d[mm] D[mm] H[mm] H1[mm] C[kN] C0[kN] [r/min] [r/min]
511/560 F 560 670 85 650 4 650 500 700
510/600 F 600 650 38 212 1 800 800 1 100
511/600 F 600 710 85 663 4 800 500 700
350769 600 800 90 676 5 000 450 630
BD1-8000 600 870 118 1 120 8 000 220 300
510/630 F 630 680 38 221 1 930 800 1 100
591/630 F 630 750 73 540 4 000 530 750
511/630 F 630 750 95 728 5 400 450 630
591/670 F 670 800 78 540 4 150 480 670
511/670 F 670 800 105 852 6 700 400 560
511/670 M 670 800 105 852 6 700 400 560
510/710 F 710 780 53 358 2 850 600 850
591/710 JR 710 845 85 676 5 400 450 630
511/710 F 710 850 112 936 7 650 380 530
510/750 F 750 820 53 364 3 050 600 850
591/750 M 750 900 90 741 6 200 400 600
511/750 M 750 900 120 1 010 8 650 340 480
510/800 F 800 870 53 371 3 200 560 800
591/800 M 800 950 90 761 6 550 400 560
510/850 M 850 920 53 377 3 450 560 800
591/850 M 850 1 000 90 761 6 800 380 560
511/850 F 850 1 000 120 1 060 9 500 320 450
510/900 M 900 980 63 527 4 900 480 670
591/900 M 900 1 060 95 630 7 650 360 500
511/900 F 900 1 060 130 1 120 10 400 300 430
511/900 M 900 1 060 130 1 120 10 400 300 430
510/950 M 950 1 080 63 540 5 100 480 670
591/950 M 950 1 120 103 852 8 150 340 480
511/950 F 950 1 120 135 1 330 12 000 280 400
510/1000 M 1 000 1 090 70 572 5 500 430 600
Designations Principal dimensions Basic load ratings Speed ratings
CoatMaster Seat washer Thrust Bearing manufacturer of China dynamic static Reference speed Limiting speed
Designation d[mm] D[mm] H[mm] H1[mm] C[kN] C0[kN] [r/min] [r/min]
591/1000 M 1 000 1 180 109 923 9 150 320 430
511/1000 F 1 000 1 180 140 1 330 13 200 260 380
510/1060 M 1 060 1 150 70 572 5 850 430 600
591/1060 F 1 060 1 250 115 1 010 10 400 300 400
511/1060 M 1 060 1 250 150 1 430 15 000 240 340
511/1120 F 1 120 1 320 160 1 530 16 300 220 320
511/1180 F 1 180 1 400 175 1 780 20 000 200 280
BD1B 351890 A 1 380 1 535 130 1 330 16 300 240 340
511/1400 F 1 400 1 630 180 1 820 22 000 180 260
